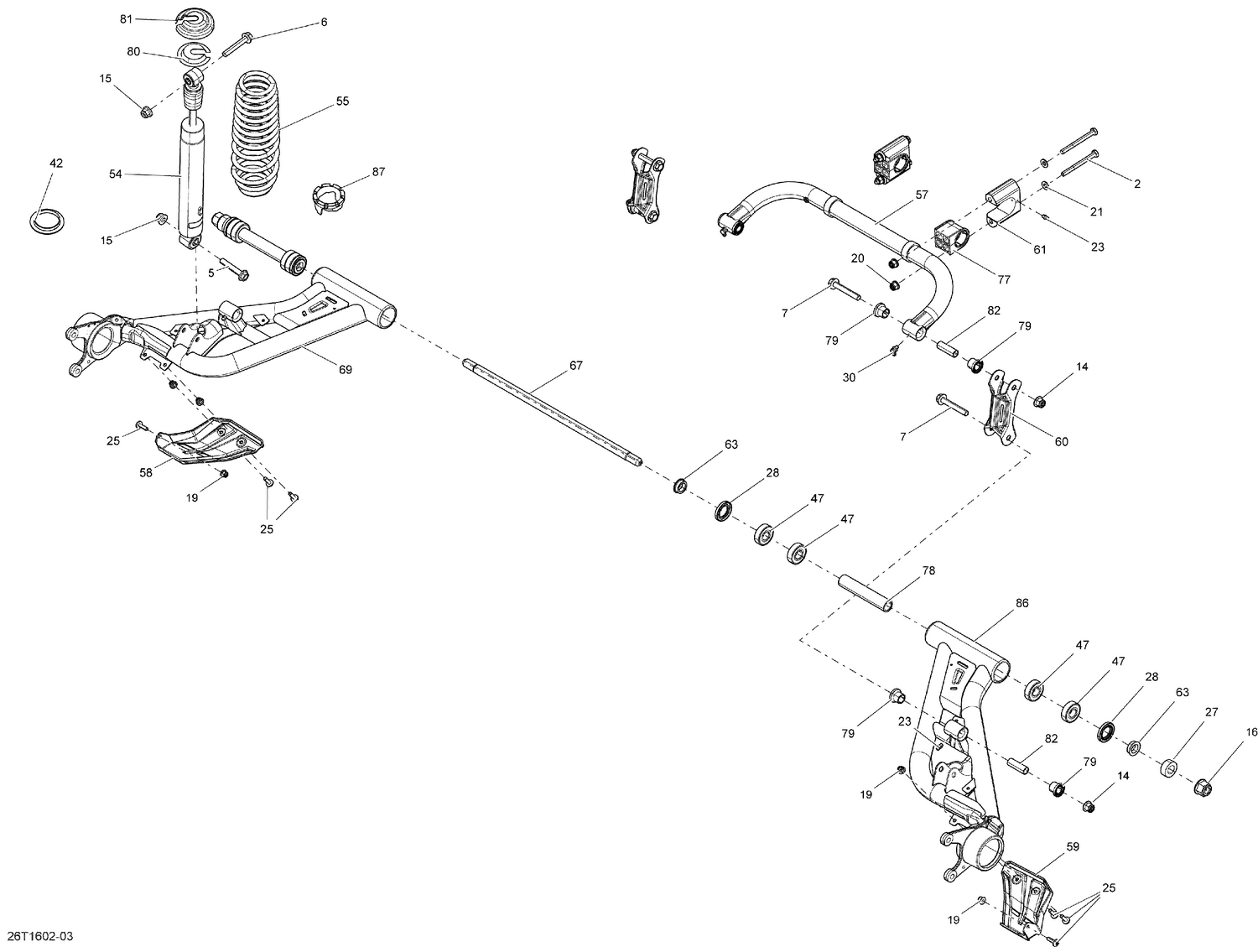

08- Rear Suspension - Except Package LTD
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 207605546 | Hex. Flange Screw M10 X 55 |
| 6 | 207606046 | Hex. Flange Screw M10 X 6 |
| 7 | 207606536 | Hex. Flange Screw M10 X 65 |
| 14 | 233201414 | Hex. Flange Elastic Nut M10 |
| 15 | 233201436 | Hex. Flange Elastic Nut M10 |
| 16 | 233211466 | Hex. Flange Elastic Nut M16 |
| 19 | 233261494 | Hex. Flange Elastic Nut M6 |
| 20 | 233281434 | Hex. Flange Elastic Nut M8 |
| 21 | 234081430 | Flat Washer M8 |
| 25 | 250000712 | Torx Screw M6 X 20 |
| 27 | 250200112 | Flat Washer M17 |
| 28 | 293200144 | Seal |
| 31 | 293650207 | Clamp Oetiker |
| 41 | 414811400 | O-Ring |
| 43 | 515175232 | Male Terminal |
| 44 | 515175654 | Male Terminal Housing, 2 Circuits |
| 45 | 293650256 | Clamp This part replaces 705600459. |
| 47 | 293350145 | Ball Bearing This part replaces 706000826. |
| 48 | 706000860 | Check Valve |
| 49 | 706000869 | Connector |
| 50 | 706000872 | Elbow 90° |
| 53 | 706000946 | T Fitting |
| 57 | 706000988 | Swaybar |
| 58 | 706001009 | LH PROTECTOR - Call your local BRP dealership |
| 59 | 706001010 | RH PROTECTOR - Call your local BRP dealership |
| 60 | 706001020 | Sway Bar Linkage |
| 61 | 706001099 | Bushing Holder |
| 63 | 706001282 | Spacer |
| 67 | 706001664 | Axial Pivot M16 |
| 69 | 706001860 | Black LH Swing Arm |
| 77 | 706004640 | Stabilizer Bar Bushing This part replaces 706002246. |
| 78 | 706002259 | Spacer |
| 79 | 706200181 | Bushing |
| 82 | 706201587 | Sleeve |
| 86 | 706001861 | Black RH Swing Arm |
