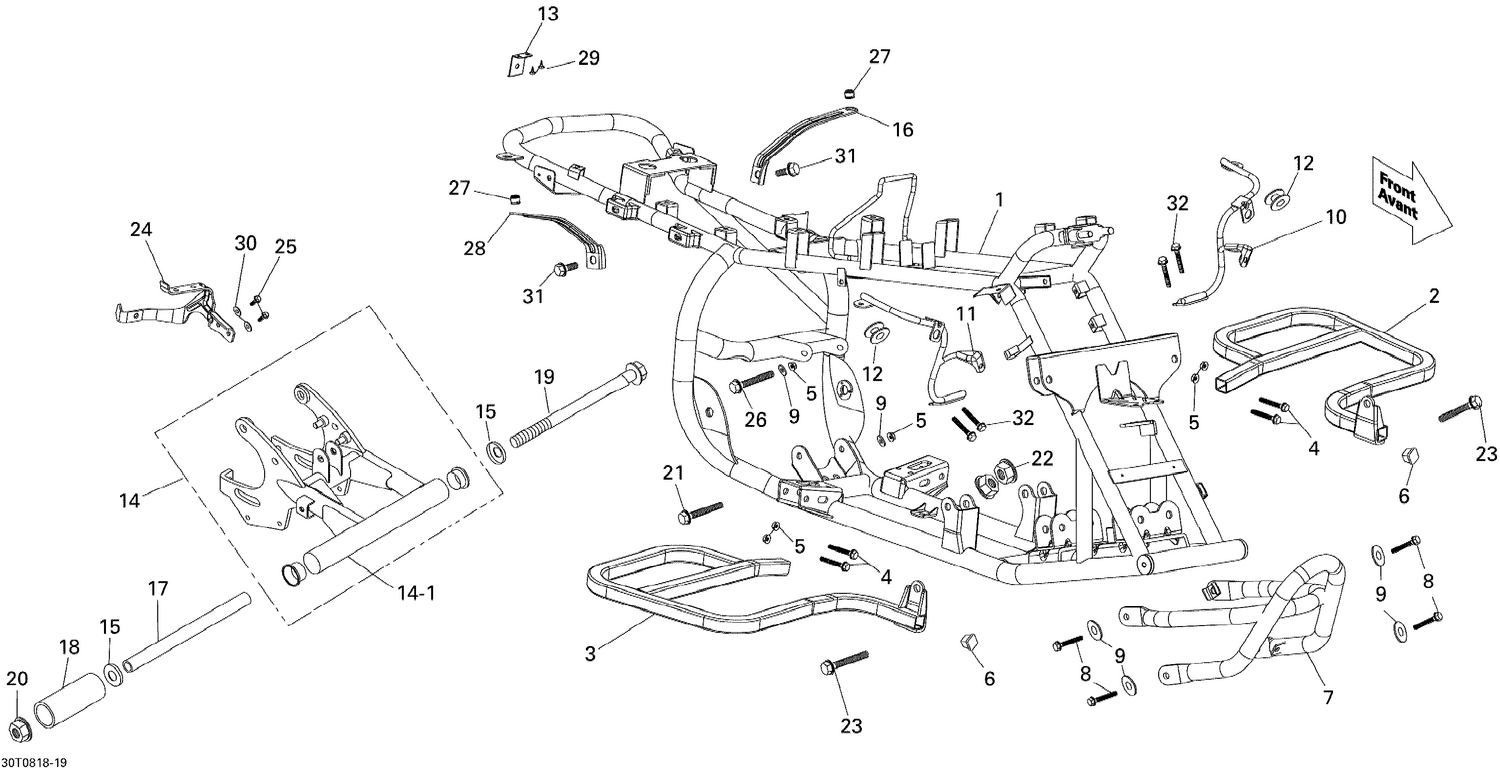

09- Frame
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V50100DGE020 | Frame |
| 2 | V50099DGF060BK | LH Footrest Support This part replaces V50099DGF040BK. |
| 3 | V50107DGF050BK | RH Footrest Support This part replaces V50107DGF030BK. |
| 4 | 207683544 | Hex. Flange Screw M8 X 35 |
| 5 | 232581414 | Hex. Elastic Stop Nut M8 |
| 6 | V64312DGF020LL | Plug This part replaces V64312DGF010. |
| 7 | V50270DGF040BK | Front Bumper This part replaces V50270DGF030BK. |
| 8 | V9600008014 | Hex. Flange Screw |
| 9 | 234181601 | Lock Washer 8 mm, Stainless |
| 10 | V50280DGF050BK | RH Head Lamp Support This part replaces V50280DGF030BK. |
| 11 | V50290DGF050BK | LH Head Lamp Support This part replaces V50290DGF030BK. |
| 12 | V15235DGF030LL | Cushion Rubber This part replaces V15235DGF010. |
| 13 | V50266DGF020 | Reflector Bracket |
| 14 | V52370DGF110 | Swing Arm This part replaces V52370DGF000. |
| 15 | V11400MAA000 | Swing Arm Seal Cover |
| 16 | V50260DGF050BK | LH Upper Fixed Plate This part replaces V50260DGF030BK. |
| 17 | V44170MAA000 | Swing Arm Spacer |
| 18 | V53436MAA020LL | Rubber Sleeve This part replaces V53436MAA000. |
| 19 | V9600014290010LL | Hex. Flange Bolt This part replaces V9600014290. |
| 20 | 232571414 | NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership |
| 21 | V9600008100 | Hex. Flange Screw |
| 22 | 232501416 | Elastic Flange Nut M10 This part replaces A9035010000. |
| 23 | V958211006090LL | Hexagonal Flange Bolt This part replaces V958211006090. |
| 24 | V50268DGF040 | Chain Cover Braket This part replaces V50268DGF020. |
| 25 | 207661244 | Hex. Flange Screw M6 X 12 |
| 26 | V9600108125 | Hex. Flange Screw |
| 27 | V85278DGF020LL | Rubber Cushion This part replaces V85278DGF000. |
| 28 | V50261DGF050BK | RH Upper Fixed Plate This part replaces V50261DGF030BK. |
| 29 | V9309304012LL | Tapping Screw This part replaces V9309304012. |
| 30 | 234161601 | Lock Washer Helical M6 |
| 31 | 207681244 | Hex. Flange Screw |
