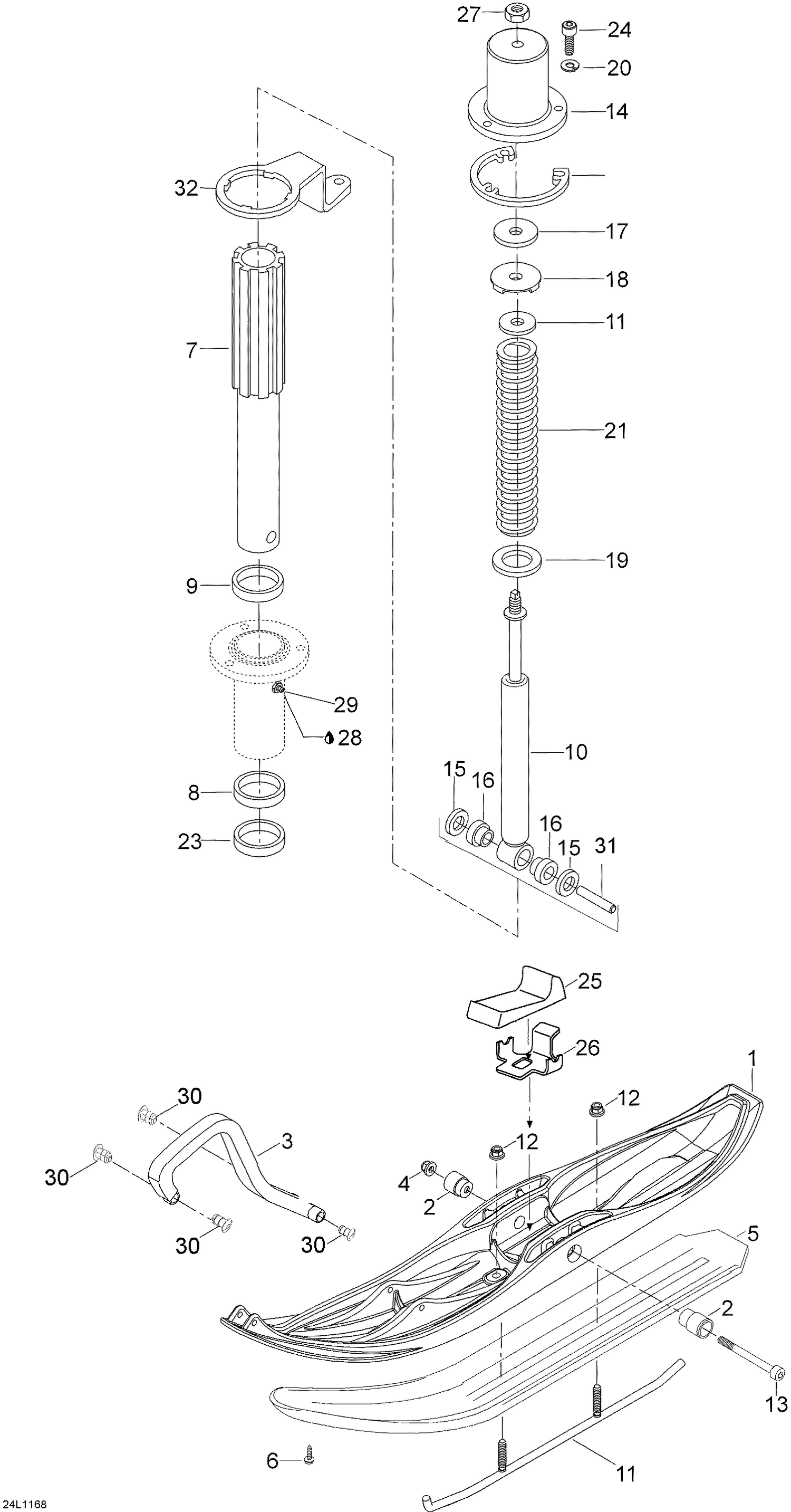

| Ref | Part Number | Description |
|---|
| 2 |
605348392 |
Bushing |
| 3 |
505070963 |
Handle, Black |
| 4 |
233201414 |
Hex. Flanged Elastic Nut M10 |
| 5 |
605153964 |
Ski Liner |
| 6 |
605640019 |
PLASTOFAST SCREW 6X18 - Call your local BRP dealership |
| 7 |
5245362 |
Skileg 8 GR - Call your local BRP dealership |
| 8 |
414803200 |
Lower Cushion |
| 9 |
414803100 |
Upper Cushion |
| 10 |
23134 |
SHOCK-FRONT GAZ - Call your local BRP dealership |
| 12 |
233201414 |
Hex. Flanged Elastic Nut M10 |
| 13 |
40225 |
Socket head screw M10 x 140 |
| 14 |
605249284 |
PAINTED COVER - Call your local BRP dealership |
| 15 |
605448594 |
BUSHING - Call your local BRP dealership |
| 16 |
572034500 |
Cushion |
| 17 |
605455680 |
Absorberfibber washer - Call your local BRP dealership |
| 18 |
605354835 |
Rubber Bumber |
| 19 |
549493 |
Bearing plate |
| 20 |
20014 |
Lock washer A8 |
| 21 |
605625001 |
SPRING, BLACK - Call your local BRP dealership |
| 22 |
503145600 |
SPACER - Call your local BRP dealership |
| 23 |
316373 |
Seal - Call your local BRP dealership |
| 24 |
40305 |
Socket head screw M8 x 20 |
| 25 |
605348439 |
RUBBER STOPPER - Call your local BRP dealership |
| 26 |
605348437 |
PLATE SUPPORT - Call your local BRP dealership |
| 27 |
33023 |
Elastic stop nut M10 |
| 28 |
293550033 |
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 29 |
34019 |
Grease Nipple M6 (1=10pcs) - Call your local BRP dealership |
| 30 |
505071812 |
Retainer 17mm long |
| 31 |
505073209 |
Ski Axle This part replaces 605348921. |
| 32 |
605353422 |
RH STEERING ARM - Call your local BRP dealership |
