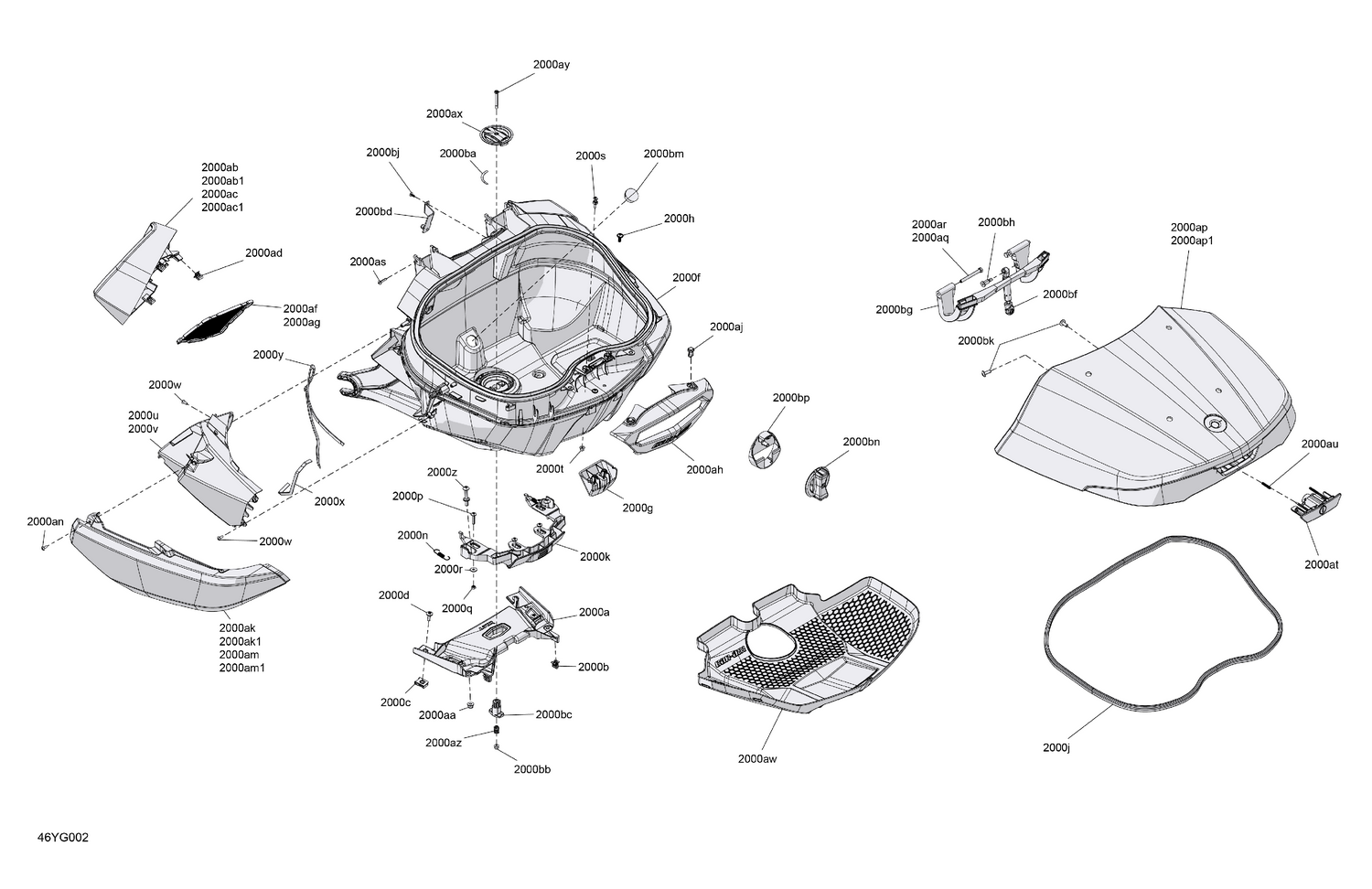

07- Body - Top Cargo Box
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 2000a | 708305306 | Central Box Support |
| 2000aa | 233261466 | Hex. Flange Elastic Nut M6 |
| 2000ab1 | 708302155 | LH Rear Speaker Trim |
| 2000ac1 | 708302156 | RH Rear Speaker Trim |
| 2000ad | 517302785 | Edge Clip |
| 2000af | 708302106 | LH Speaker Grille |
| 2000ag | 708302107 | RH Speaker Grille |
| 2000ah | 708302152 | Light Support |
| 2000aj | 293150230 | Tuflok Plastic Rivet |
| 2000ak1 | 708303800 | Bare, LH Rear Molded Fairing |
| 2000am1 | 708303801 | Bare, RH Rear Molded Fairing |
| 2000an | 250001131 | Torx Truss PT K40 x 12 |
| 2000ap1 | 708303582 | Rear Box Cover |
| 2000aq | 708303376 | RH Hinge Pin |
| 2000ar | 708303377 | LH Hinge Pin |
| 2000as | 250000783 | Torx-Truss M/S M4 X 20 |
| 2000at | 708302100 | Trunk Control Ass'y |
| 2000au | 708302198 | Spring |
| 2000aw | 708303064 | Inner Trunk Soft Trim |
| 2000ax | 708303063 | LinQ Lock Knob |
| 2000ay | 708303262 | LinQ Lock Knob Screw |
| 2000az | 708201081 | Spring |
| 2000b | 517302785 | Edge Clip |
| 2000ba | 704908164 | Lock Decal |
| 2000bb | 233251494 | Elastic Flange Nut M5 |
| 2000bc | 708201182 | RH Latch |
| 2000bd | 708303421 | Shock Reinforcement |
| 2000bf | 708305055 | Air Shock Absorber |
| 2000bg | 708303319 | Lid Hinge |
| 2000bh | 250000714 | Flange Screw M6 X 26 |
| 2000bj | 250001034 | Torx-Truss Screw K40 X 10 |
| 2000bk | 250000534 | Tork Screw M6 X 16 |
| 2000bm | 414916600 | Black, Nylon Cap |
| 2000bn | 529000146 | Tool Linq |
| 2000c | 250100208 | Panel Nut M6 X 1.0 |
| 2000d | 250000717 | Torx Head Screw M6 X 16 |
| 2000f | 708305116 | Central Bonded Storage Box |
| 2000g | 708305115 | Rear Central Reinforcement |
| 2000h | 250000546 | Oval Head Torx Screw K60 X 16 |
| 2000j | 293250579 | Trim |
| 2000k | 708303384 | Latch |
| 2000n | 705601862 | Tension Spring |
| 2000p | 250000762 | Torx Screw M5 X 25 |
| 2000q | 232051600 | Hex. Nut M5 |
| 2000r | 234052600 | Flat Washer 5 mm, Stainless |
| 2000s | 518333307 | Stud |
| 2000t | 233251434 | Flange Elastic Nut M5 |
| 2000u | 708305546 | LH Speaker Enclosure |
| 2000v | 708305547 | RH Speaker Enclosure |
| 2000w | 250001131 | Torx Truss PT K40 x 12 |
| 2000x | 219704373 | Seal 1000Mm Long |
| 2000y | 219704373 | Seal 1000Mm Long |
| 2000z | 708303392 | Striker |
