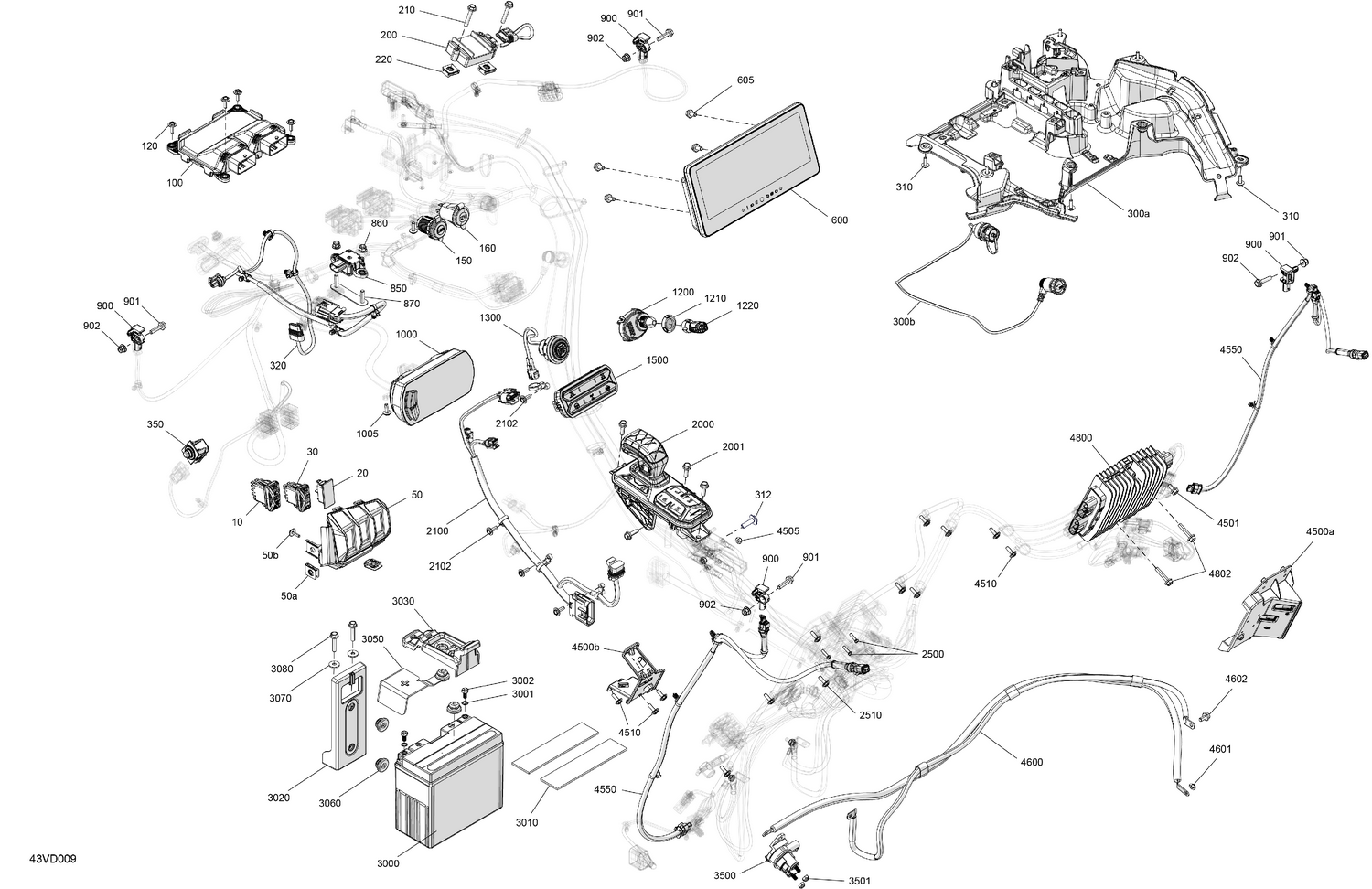

08- Electric - Central Electric
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 710007663 | Light Switch |
| 20 | 710007173 | Plug Carling |
| 30 | 710007664 | Horn Switch |
| 50a | 250100208 | Panel Nut M6 X 1.0 |
| 50b | 250000805 | Plastite Screw M4 X 10 |
| 100 | 710007493 | BCM Module OPT #1 |
| 120 | 250000959 | Screw PT Type K-50 X 16 |
| 150 | 219400510 | USB Outlet |
| 200 | 278004506 | GPS |
| 210 | 207563544 | Hex. Flange Screw S.Grip M6 X 35 |
| 220 | 250100208 | Panel Nut M6 X 1.0 |
| 300a | 710007735 | Fuse Holder Support |
| 300b | 710007479 | USB Wiring Harness |
| 310 | 250000959 | Screw PT Type K-50 X 16 |
| 312 | 250000959 | Screw PT Type K-50 X 16 |
| 320 | 710008927 | Accelerator Pedal Wiring Harness |
| 350 | 710008822 | Door Switch |
| 600 | 710009417 | Multifunction Gauge 10 |
| 605 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 850 | 710005998 | Yaw Rate Sensor |
| 860 | 233261494 | Hex. Flange Elastic Nut M6 |
| 870 | 710009676 | Sensor Support |
| 900 | 710004221 | Acceleration Sensor |
| 901 | 207662554 | Hex. Flange Screw M6 X 25 |
| 902 | 233261494 | Hex. Flange Elastic Nut M6 |
| 1000 | 710008298 | Multifunction Compact Gauge |
| 1005 | 250000959 | Screw PT Type K-50 X 16 |
| 1200 | 710008832 | Terminal DESS CAN |
| 1210 | 278004274 | Specialized Nut |
| 1220 | 710004964 | Grey Key RFID |
| 1300 | 710005213 | Start-Stop Button |
| 1500 | 710007534 | Multifunction Switch |
| 2000 | 710007338 | Electronic Gear Shift Lever |
| 2001 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 2100 | 710007667 | Console Wiring Harness |
| 2102 | 250000959 | Screw PT Type K-50 X 16 |
| 2500 | 250000725 | Screw M4 X 16 |
| 2510 | 250000959 | Screw PT Type K-50 X 16 |
| 3000 | 410301203 | Battery YUASA YTX20L |
| 3001 | 710009082 | Washer |
| 3002 | 710009084 | Screw |
| 3010 | 293830126 | Rubber Pad |
| 3020 | 710004788 | Fixation Plate |
| 3030 | 710004789 | Fixation Plate |
| 3050 | 710006471 | Battery Cable Cap |
| 3060 | 705014429 | Rubber Stopper |
| 3070 | 234062410 | Flat Washer 6 mm |
| 3080 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 3500 | 278003012 | Starter Relay |
| 3501 | 232561200 | Brass Elastic Stop Nut M6 |
| 4500a | 710008838 | Connector Support |
| 4500b | 710008839 | Connector Support |
| 4501 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 4505 | 232561200 | Brass Elastic Stop Nut M6 |
| 4510 | 250000959 | Screw PT Type K-50 X 16 |
| 4550 | 710008618 | Junction Wiring Harness |
| 4600 | 710007347 | Starter Wiring Harness |
| 4601 | 232561200 | Brass Elastic Stop Nut M6 |
| 4602 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 4800 | 710007558 | Voltage Regulator |
