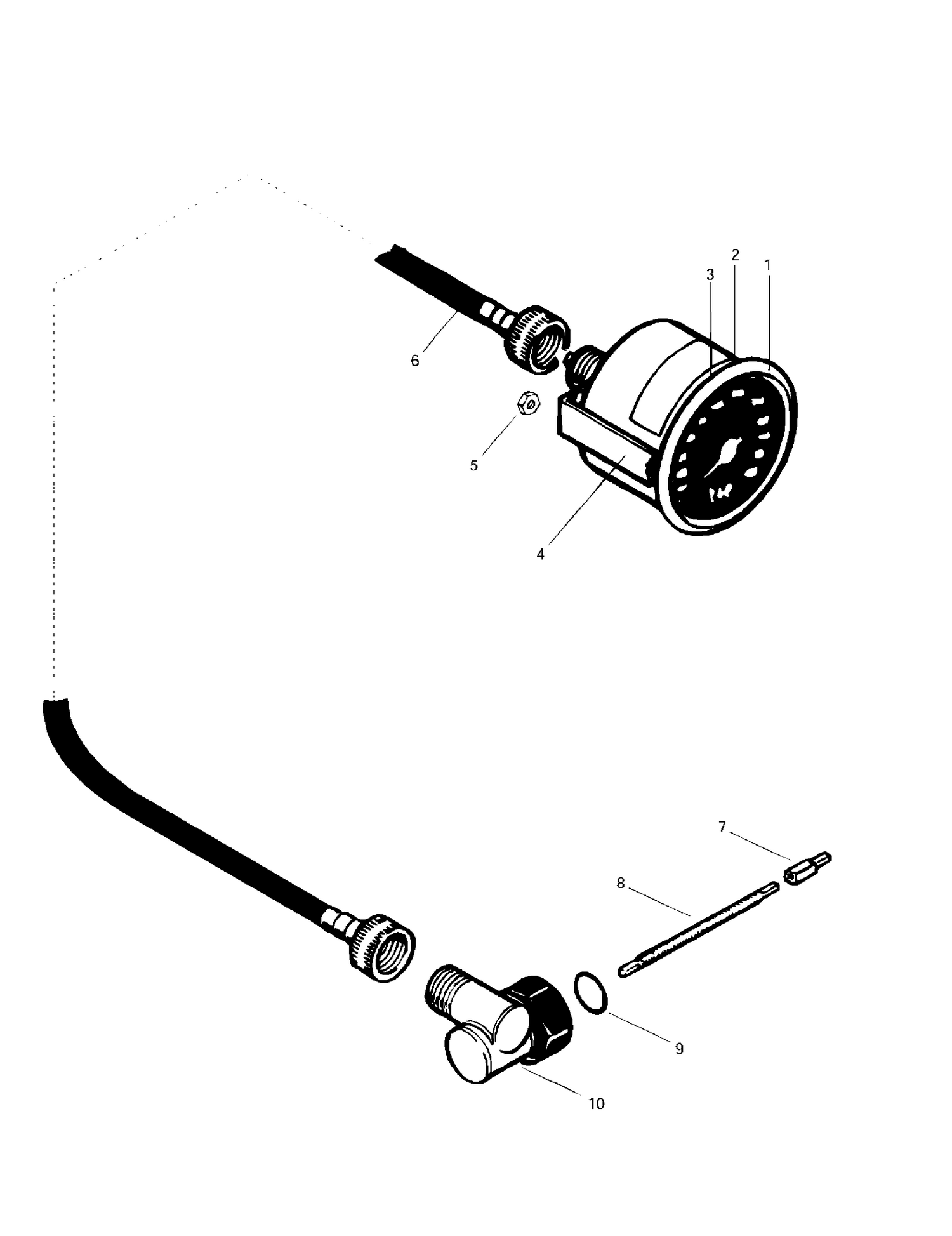

10- Speedometer Arrangement
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1A | 410504200 | INSTRUMENTATION BULB - Call your local BRP dealership |
| 2 | 517258500 | Washer |
| 3 | 414807100 | O-Ring |
| 4 | 414806500 | Case Holder |
| 5 | 232551414 | Elastic Stop Nut M5 This part replaces 228551045. |
| 6 | M45006 | Speedometer Cable |
| 7 | 542013 | Speed Drive Insert This part replaces M542013. |
| 8 | 45009 | Tige Vitesse *Branch-Key This part replaces M45009. |
| 9 | 414143300 | Washer |
