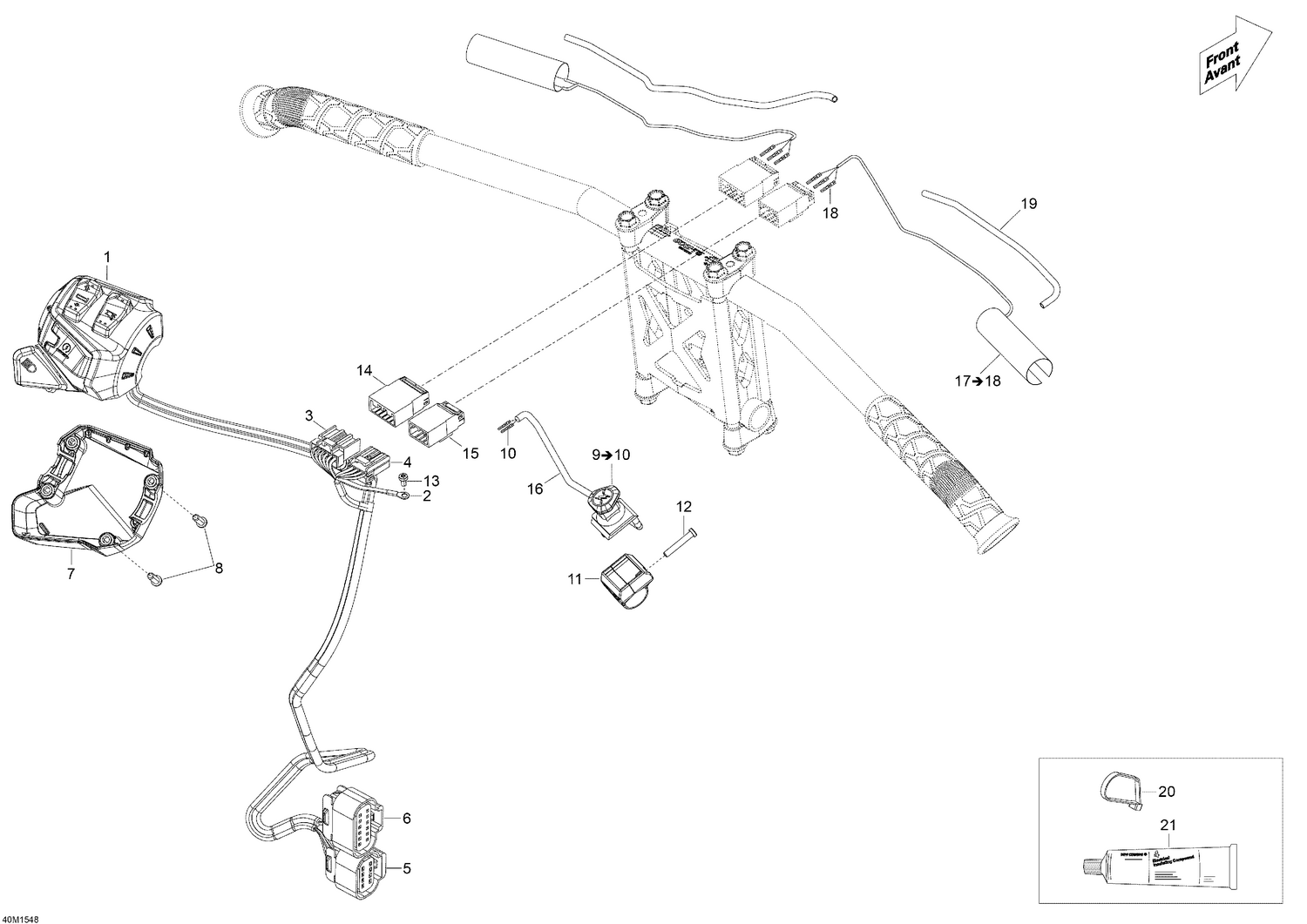

10- Steering Wiring Harness _40M1548
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 515175504 | Ring Terminal |
| 3 | 515175231 | Female Terminal |
| 3 | 515175543 | Female Terminal Housing, 6 Circuits |
| 4 | 515175231 | Female Terminal |
| 4 | 515175845 | Female Terminal Housing, 4 Circuits |
| 5 | 710001928 | Housing |
| 6 | 710001930 | Female Housing, 12 Circuits |
| 7 | 515177147 | Housing Plate |
| 8 | 250000671 | Torx Screw |
| 10 | 515175232 | Male Terminal |
| 11 | 515177310 | Emergency Stop Switch Support This part replaces 515176825. |
| 12 | 250000263 | Torx Screw #8-18 |
| 13 | 250000690 | Pan Screw Forming, 7500C |
| 14 | 515175662 | Male Terminal Housing, 6 Circuits |
| 15 | 515175846 | Male Terminal Housing, 4 Circuits |
| 16 | 219704427 | LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership |
| 18 | 515175232 | Male Terminal |
| 19 | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long |
| 20 | 414115200 | Tie-Rap 180 mm |
