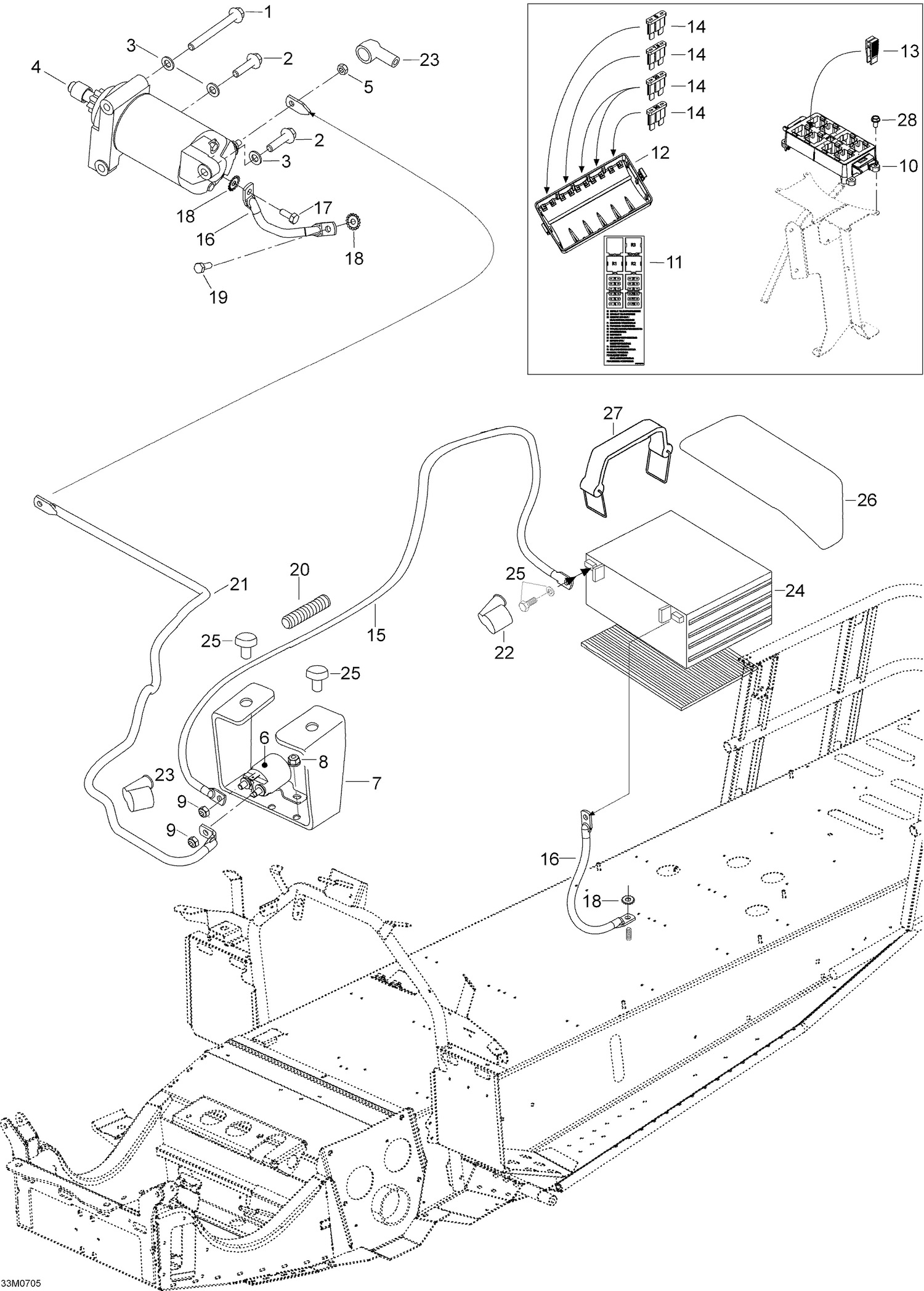

| Ref | Part Number | Description |
|---|
| 1 |
207587544 |
Hex. Flange Screw M8 X 75, Scotch Grip |
| 2 |
207583044 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 3 |
250200008 |
Flat Washer With Teflon 8 mm |
| 4 |
515176133 |
Electric Starter Ass'y |
| 5 |
232561414 |
Elastic Stop Nut M6 |
| 6 |
515176011 |
Starter Relay |
| 7 |
605351708 |
BRACKET - Call your local BRP dealership |
| 8 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 9 |
232561414 |
Elastic Stop Nut M6 |
| 10 |
515176065 |
FUSE BOX BASE - Call your local BRP dealership |
| 11 |
605453790 |
FUSE DECAL - Call your local BRP dealership |
| 12 |
515176066 |
COVER - Call your local BRP dealership |
| 13 |
515175811 |
FUSE TOOL - Call your local BRP dealership |
| 14 |
278000344 |
Fuse, 5 Amperes |
| 14 |
278000704 |
FUSE, 7.5 AMPERES - Call your local BRP dealership |
| 14 |
409003900 |
Fuse, 20 Amperes |
| 14 |
410917200 |
Fuse, 30 Amperes |
| 14 |
M42044 |
Fuse 1 A |
| 15 |
605151524 |
Battery Wire |
| 16 |
Not |
Available As Spare Part - Ground Wire |
| 17 |
207361644 |
Hex. Screw M6 X 16, Scotch Grip |
| 18 |
M20017 |
SERRATED LOCK WASHER - Call your local BRP dealership |
| 19 |
M40327 |
SCREW-M6X12 - Call your local BRP dealership |
| 20 |
M28015 |
HOUSING - Call your local BRP dealership |
| 21 |
M5348358 |
BATTERY WIRE - Call your local BRP dealership |
| 22 |
278001771 |
PROTECTOR CAP - Call your local BRP dealership |
| 23 |
570151000 |
Protection Cap |
| 25 |
250000282 |
Battery Bolt Kit This part replaces 295500849. |
| 26 |
570044700 |
Rubber Bumper |
| 27 |
605352572 |
COVER - Call your local BRP dealership |
