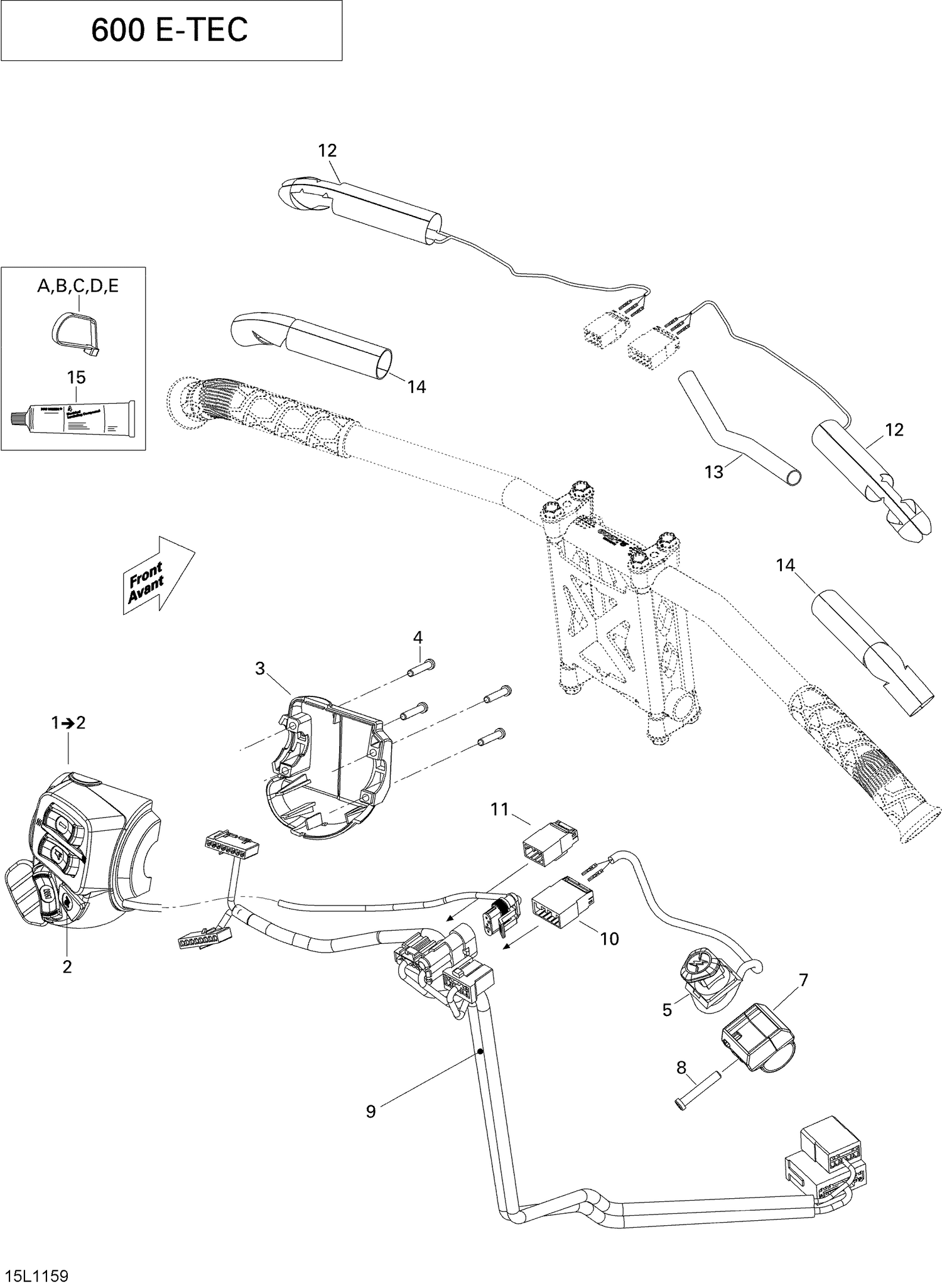

10- Steering Wiring Harness 600 HO ETEC
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| A | 414115200 | Tie-Rap 180 mm |
| B | 293750002 | Tie-Rap 142 mm |
| C | 293750008 | Tie-Rap 368 mm |
| D | 293750001 | Tie-Rap 94 mm |
| 2 | 515176088 | Start/RER Button |
| 3 | 515175926 | Housing Switch Plate |
| 4 | 250000263 | Torx Screw #8-18 |
| 5 | 515177362 | Kill Switch This part replaces 515176988. |
| 7 | 515177310 | Emergency Stop Switch Support This part replaces 515176825. |
| 8 | 250000263 | Torx Screw #8-18 |
| 9 | 515176868 | STEERING WIRING HARNESS ASS'Y - Call your local BRP dealership |
| 10 | 515175662 | Male Terminal Housing, 6 Circuits |
| 11 | 515175846 | Male Terminal Housing, 4 Circuits |
| 12 | 506152467 | Heating Element |
| 13 | 515175830 | Low Temperature Tubing 1/2” |
| 14 | 506152360 | Insulant |
| 15 | 293550004 | Dielectric Grease, 150 g |
