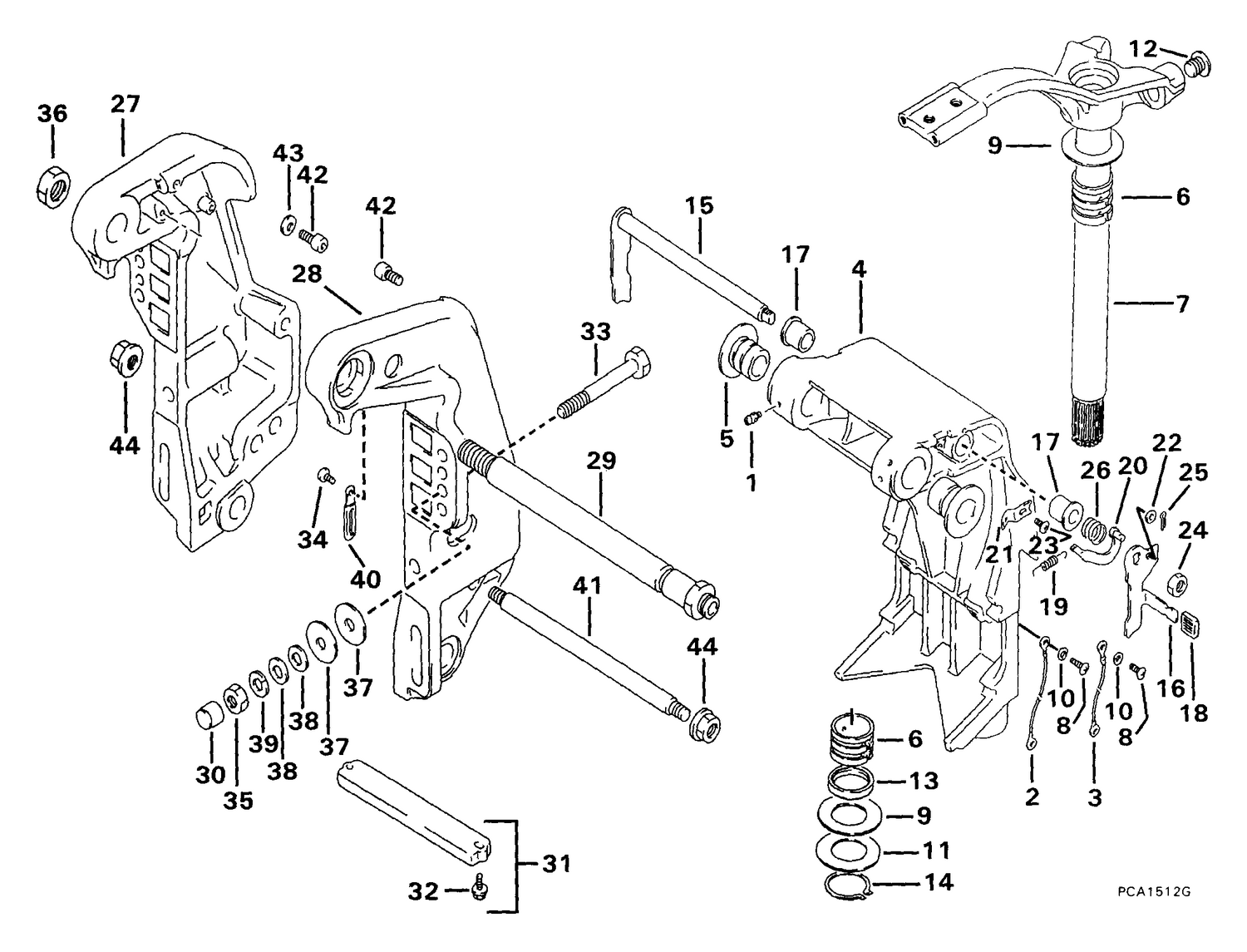

| Ref | Part Number | Description |
|---|
| 1 |
5030207 |
FITTING, GREASE |
| 2 |
5030821 |
BONDING LEAD, Exh. hsg. to bracket |
| 3 |
5030822 |
LEAD (SWIVEL TO HSG) |
| 4 |
5030849 |
BRACKET, Swivel |
| 5 |
5030851 |
BUSHING, Tilt tube |
| 6 |
5030852 |
BUSHING, STEERING |
| 7 |
5030854 |
STEERING ARM |
| 8 |
5030407 |
SCREW (5X8) |
| 9 |
5030456 |
WASHER |
| 10 |
5030459 |
WASHER |
| 11 |
5030477 |
SHIM |
| 12 |
5030527 |
PLUG |
| 13 |
5030548 |
SEAL |
| 14 |
5030572 |
CIRCLIP |
| 15 |
5030841 |
TILT PIN & LEVER Assy |
| 16 |
5030842 |
LEVER, TILT LOCK PORT |
| 17 |
5030843 |
BUSHING, TILT STOP ROD |
| 18 |
5030844 |
COVER, Tilt lock lever |
| 19 |
5030845 |
SPRING, Tilt lock lever |
| 20 |
5030846 |
LINK, TILT LOCK LEVER |
| 21 |
5030847 |
BRACKET, TILT LOCK SPRING |
| 23 |
5030409 |
SCREW |
| 24 |
5030417 |
NUT |
| 26 |
5030597 |
SPRING |
| 27 |
5030835 |
STERN BRACKET, Stbd |
| 28 |
5030837 |
STERN BRACKET, Port |
| 29 |
5034152 |
SHAFT, CLAMP BRACKET This part replaces 5030838. |
| 30 |
5030839 |
CAP, TRANSOM BOLT |
| 31 |
5030907 |
ANODE |
| 33 |
5037556 |
Kit This part replaces 5030385. |
| 34 |
5030409 |
SCREW |
| 35 |
5030418 |
NUT |
| 36 |
5030427 |
NUT, Tilt tube |
| 37 |
5030436 |
WASHER |
| 39 |
5030462 |
RONDELLE GROWER |
| 40 |
5030135 |
BRIDE This part replaces 5030346. |
| 41 |
5030855 |
PIN, Tilt lock |
| 42 |
5030388 |
BOLT |
| 43 |
5030057 |
WASHER |
