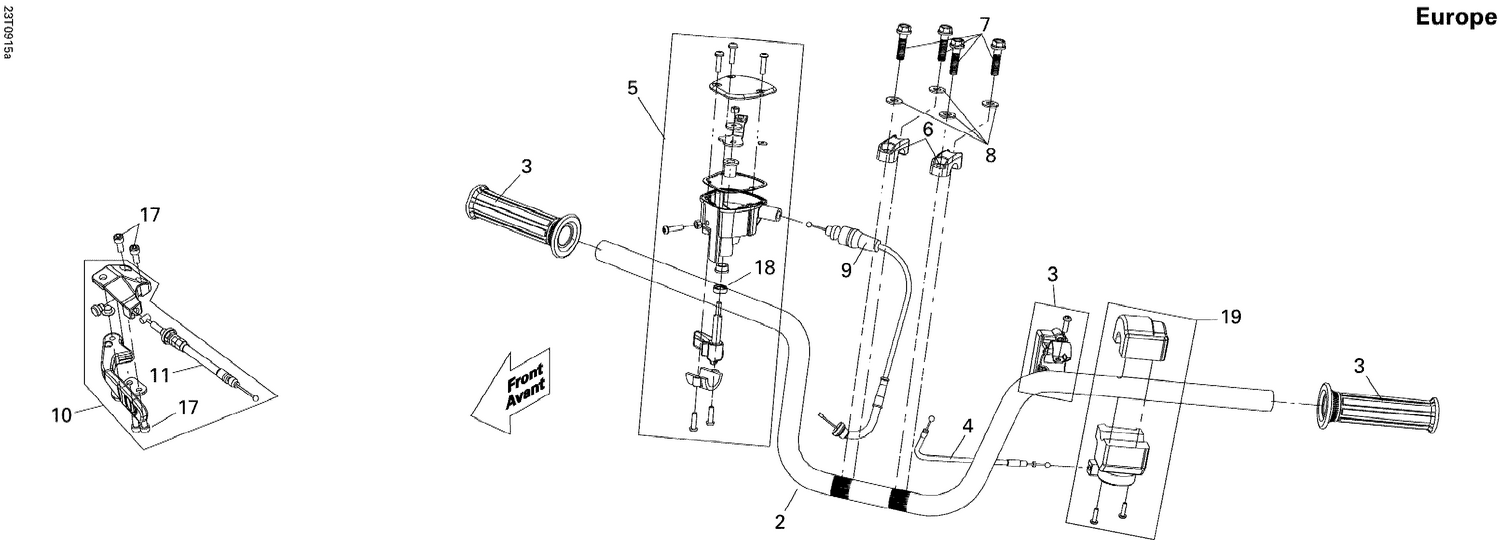

07- Handlebar Europe
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | S53100RCA800 | Handle Bar |
| 3 | S53166N01000 | Handle Grip |
| 4 | S44850RCA000 | Choke Cable |
| 5 | S53190RCA000 | Throttle Handle Ass'y |
| 6 | S53131RCA010 | Handle Bar Upper Clamp |
| 7 | S958010803507 | Flanged Bolt M8 X 35 |
| 8 | S9410108700 | Washer 8 mm |
| 9 | S17910RCA000 | Throttle Cable |
| 10 | S5317ARCA000 | PARKING BRAKE LEVER ASS'Y - Call your local BRP dealership |
| 11 | S45450RCA000 | PARKING BRAKE CABLE - Call your local BRP dealership |
| 17 | S967000601607 | Socket Bolt M6 X 16 |
