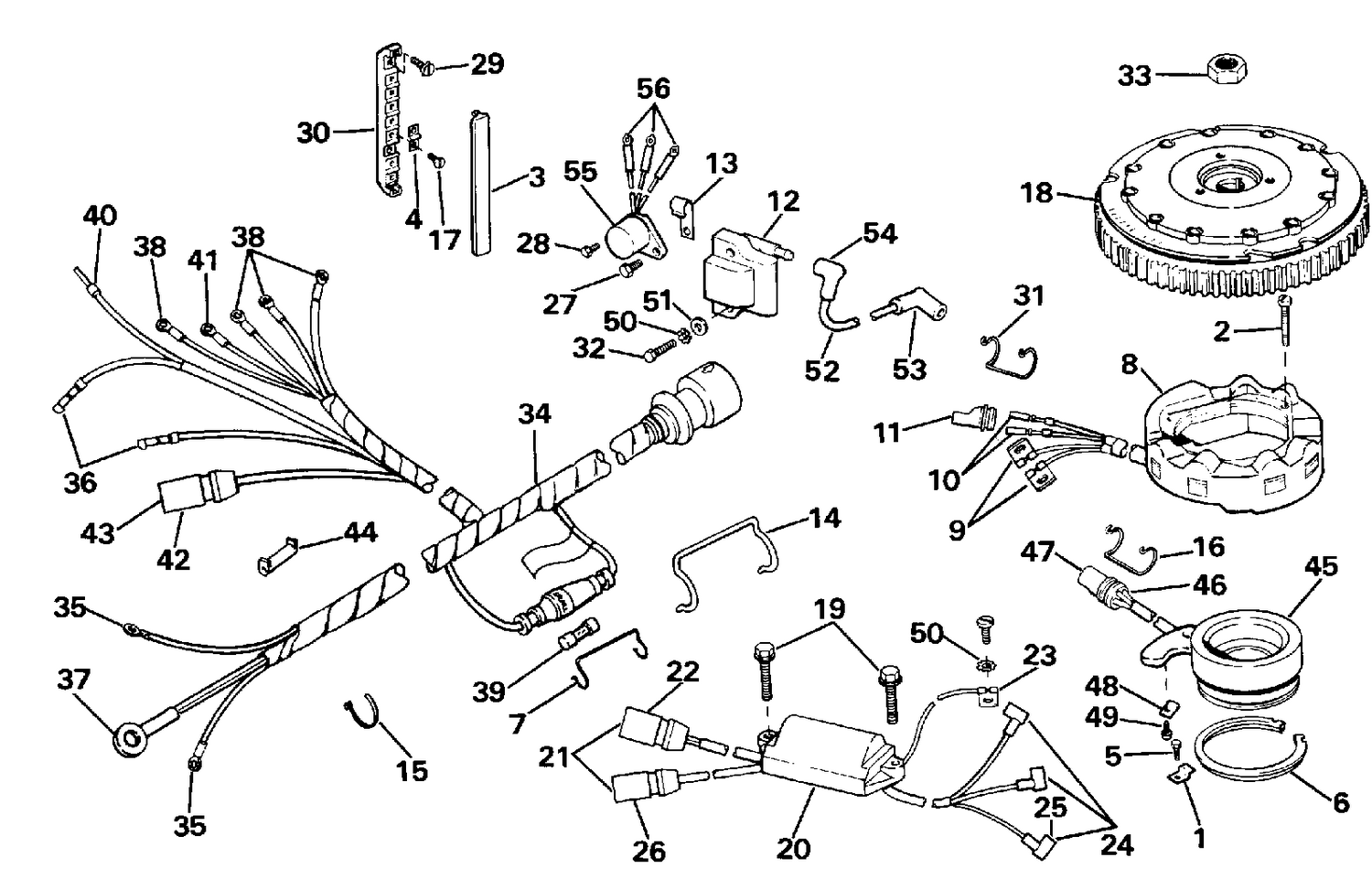

| Ref | Part Number | Description |
|---|
| 1 |
0314495 |
CLAMP, Distributor base |
| 2 |
0325042 |
SCREW, Starter mounting |
| 3 |
0395354 |
TERMINAL BLOCK COVER |
| 3 |
0396536 |
TERMINAL BLOCK COVER |
| 4 |
0315004 |
FIL DE LIAISON, bornier |
| 6 |
0313666 |
RET., Distributor base 1 |
| 8 |
0583724 |
STATOR ASSY. This part replaces 0583119. |
| 12 |
0582508 |
COIL ASSY |
| 15 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 16 |
0512743 |
DISPOSITIF DE RETENUE |
| 17 |
0329182 |
VIS, borne |
| 18 |
0583222 |
FLYWHEEL ASSY. |
| 19 |
0328726 |
SCREW (Use existing coil screw) |
| 20 |
0582115 |
POWER PACK |
| 27 |
0314576 |
SCREW This part replaces 0328720. |
| 29 |
0306644 |
VIS, capteur de papillon |
| 30 |
0329895 |
BORNIER |
| 31 |
0512742 |
DISPOSITIF DE RETENUE, connecteur |
| 33 |
0329267 |
NUT, Flywheel This part replaces 0314209. |
| 34 |
0583082 |
MOTOR CABLE ASSY. |
| 45 |
0583378 |
TIME BASE ASSY. This part replaces 0583131. |
| 48 |
0511387 |
CLAMP |
| 52 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
