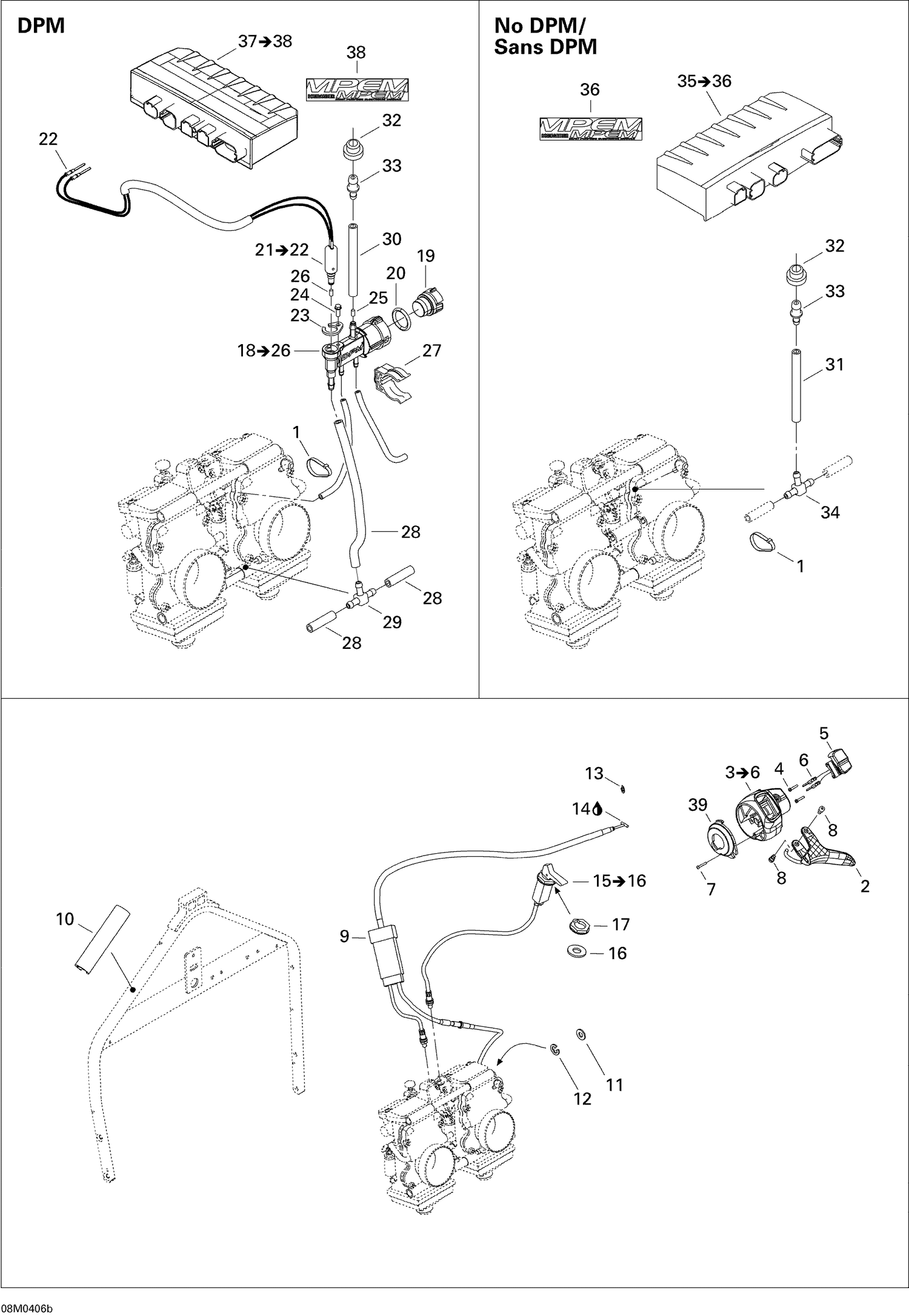

| Ref | Part Number | Description |
|---|
| 1 |
293750001 |
Tie Wrap 94 mm |
| 2 |
512060484 |
Throttle Handle Ass'y This part replaces 512059766. |
| 4 |
250000098 |
PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership |
| 5 |
512060121 |
Housing Throttle Ass'y This part replaces 415128683. |
| 6 |
515175232 |
Male Terminal |
| 7 |
250000098 |
PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership |
| 8 |
732601143 |
Flange Screw |
| 9 |
512060085 |
Throttle Cable This part replaces 512059856. |
| 10 |
512059750 |
PROTECTOR - Call your local BRP dealership |
| 11 |
234081100 |
Flat Washer 8 mm, Nylon |
| 12 |
414753500 |
Circlip |
| 13 |
414274500 |
Circlip |
| 14 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 16 |
394103300 |
Lock Washer, Interior Teeth |
| 17 |
512059094 |
PLASTIC NUT - Call your local BRP dealership |
| 19 |
270600009 |
CAP - Call your local BRP dealership |
| 20 |
293300042 |
O-RING - Call your local BRP dealership |
| 22 |
278001665 |
Female Terminal |
| 23 |
415061600 |
SOLENOID LOCK - Call your local BRP dealership |
| 24 |
241140060 |
Screw K40 X 10 |
| 25 |
Not |
Available As Spare Part - Starter Jet |
| 26 |
404161825 |
STARTER JET - Call your local BRP dealership |
| 36 |
516000245 |
Electrical Box Decal |
| 38 |
516000245 |
Electrical Box Decal |
