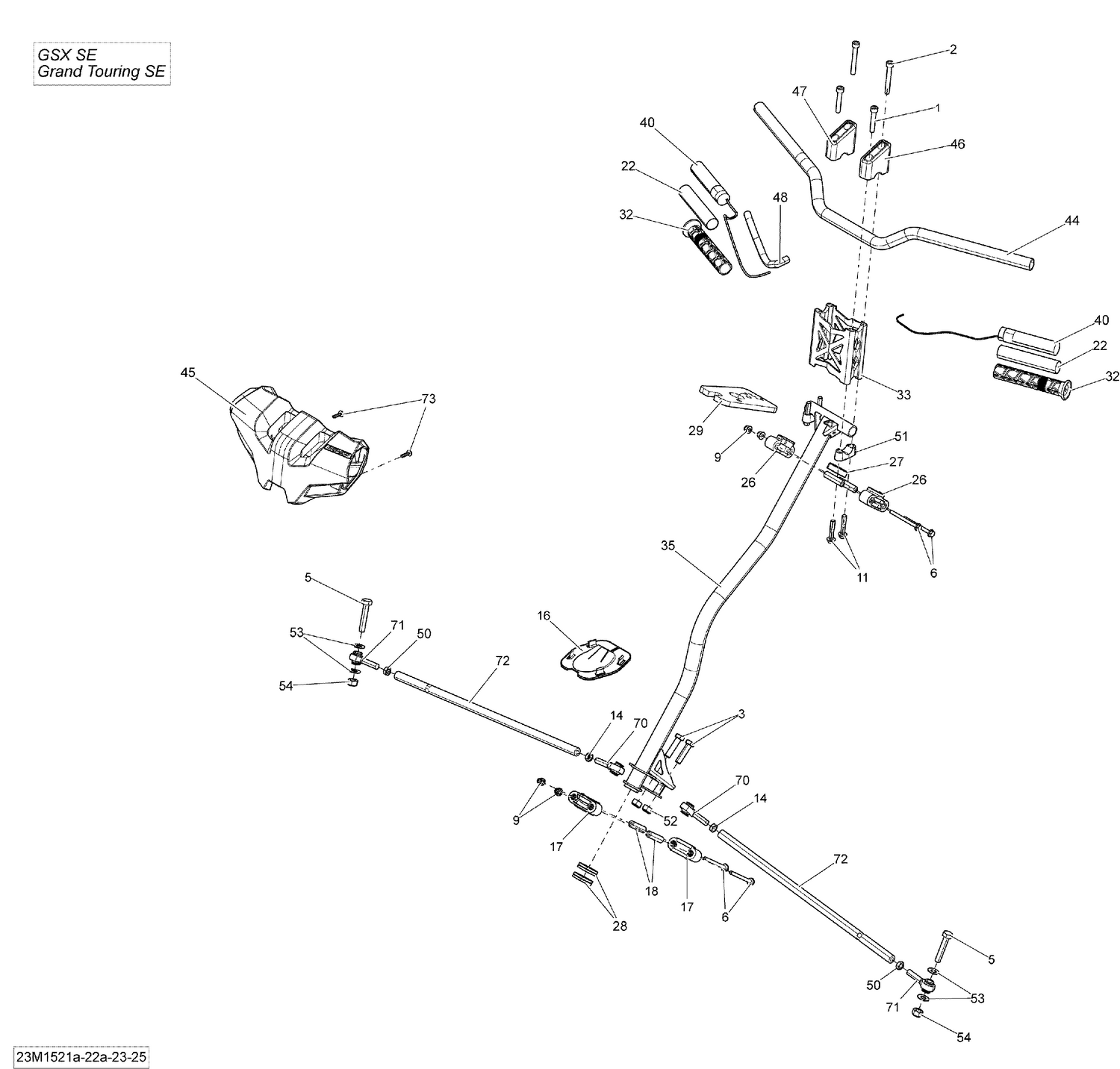

07- Steering _23M1525
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205084560 | Socket Head Screw M8 X 45 |
| 2 | 205086060 | Socket Head Screw M8 X 60 |
| 3 | 207004034 | Hex. Screw M10 X 1.5 X 40 |
| 5 | 207005554 | Hex Screw M10 X 1.5 X 55 |
| 6 | 207667056 | Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 9 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 11 | 250000352 | Hex. Flange Screw M8 X 40 |
| 14 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 16 | 506152163 | Plate |
| 17 | 506152217 | Lower Half-Housing |
| 18 | 506152297 | Housing Bushing |
| 22 | 506153178 | Insulant This part replaces 506152423. |
| 26 | 506152508 | Upper Half-Housing |
| 27 | 506152509 | Upper Anti-Vibration Gasket |
| 28 | 506152518 | Lower Vibration Ring |
| 29 | 506152521 | Bushing |
| 32 | 506152501 | Grip |
| 33 | 506152759 | HANDLEBAR EXTENSION 115 - Call your local BRP dealership |
| 35 | 506152962 | Steering Column This part replaces 506152584. |
| 40 | 506152681 | HEATED FILM - Call your local BRP dealership |
| 44 | 506152711 | Black Handle Bar |
| 45 | 506152721 | STEERING PAD - Call your local BRP dealership |
| 46 | 506152729 | LH HANDLEBAR SUPPORT - Call your local BRP dealership |
| 47 | 506152730 | RH HANDLEBAR SUPPORT - Call your local BRP dealership |
| 48 | 219704427 | LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership |
| 50 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 51 | 506152751 | Steering Support |
| 52 | 233601466 | Elastic Locking Nut M10 |
| 53 | 506152582 | Washer |
| 54 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 70 | 506152081 | LH Thread Ball Joint |
| 71 | 506152019 | RH Threaded Ball Joint |
| 72 | 506152496 | Tie-Rod Ass'y |
