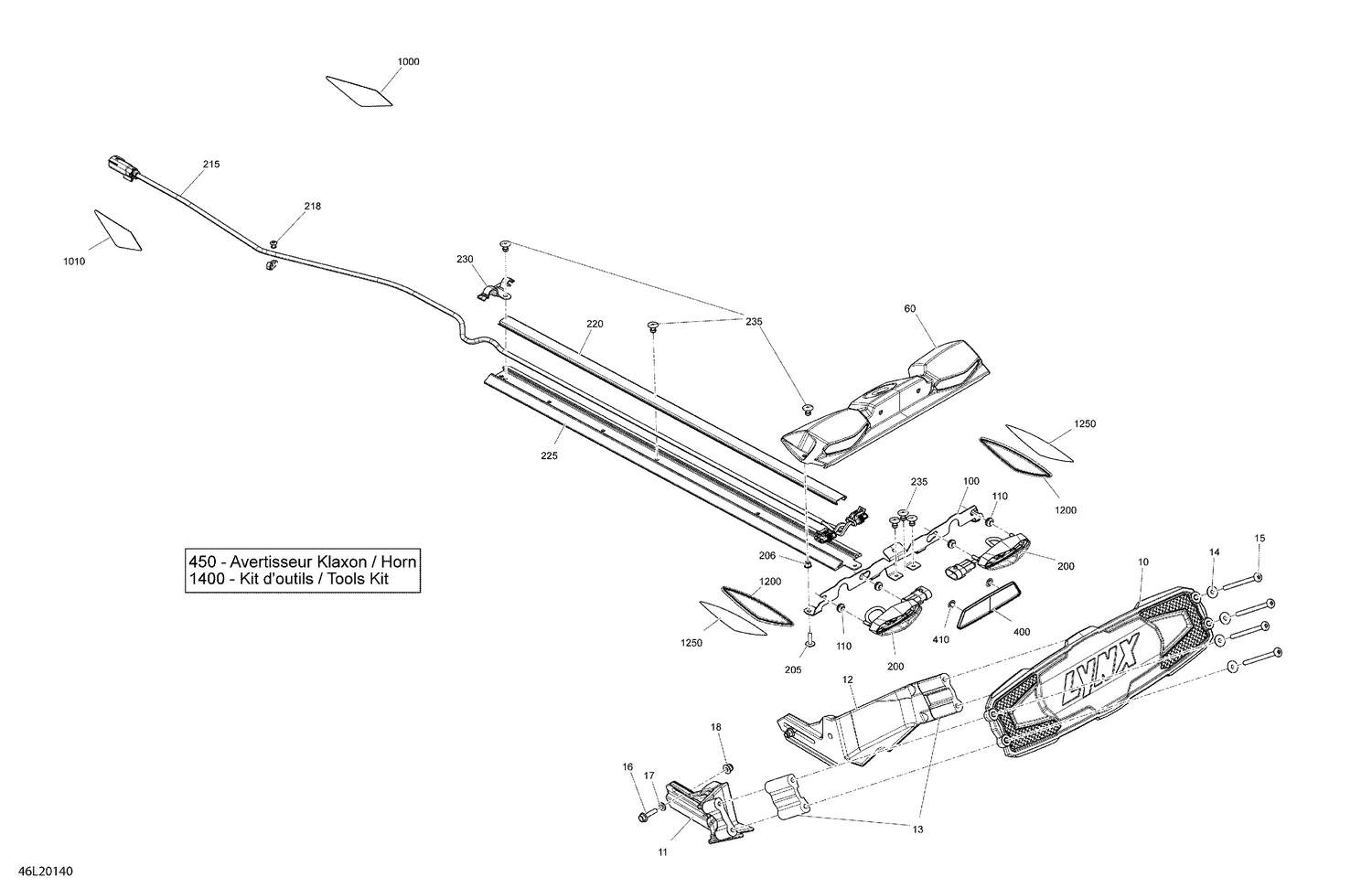

10- Utilities - RE 3900 - Ski Stance 921 mm
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 110 | 293720101 | Grommet |
| 200 | 520001302 | Rear Light |
| 218 | 390402200 | Pop Rivet 3/16 |
| 220 | 520002921 | Radiator Trim This part replaces 520001719. |
| 225 | 520002930 | Wire Protector This part replaces 520001703. |
| 230 | 520001722 | Cap |
| 400 | 705014133 | Rear Reflector Red |
| 410 | 732610072 | Push Nut |
| 450 | 549011291 | Horn |
| 1000 | 520002343 | RH Front Reflector This part replaces 520001493. |
| 1010 | 520002344 | LH Front Reflector This part replaces 520001494. |
| 1200 | 705002423 | Amber, Lateral Reflector |
| 1250 | 520001766 | Support Tape |
