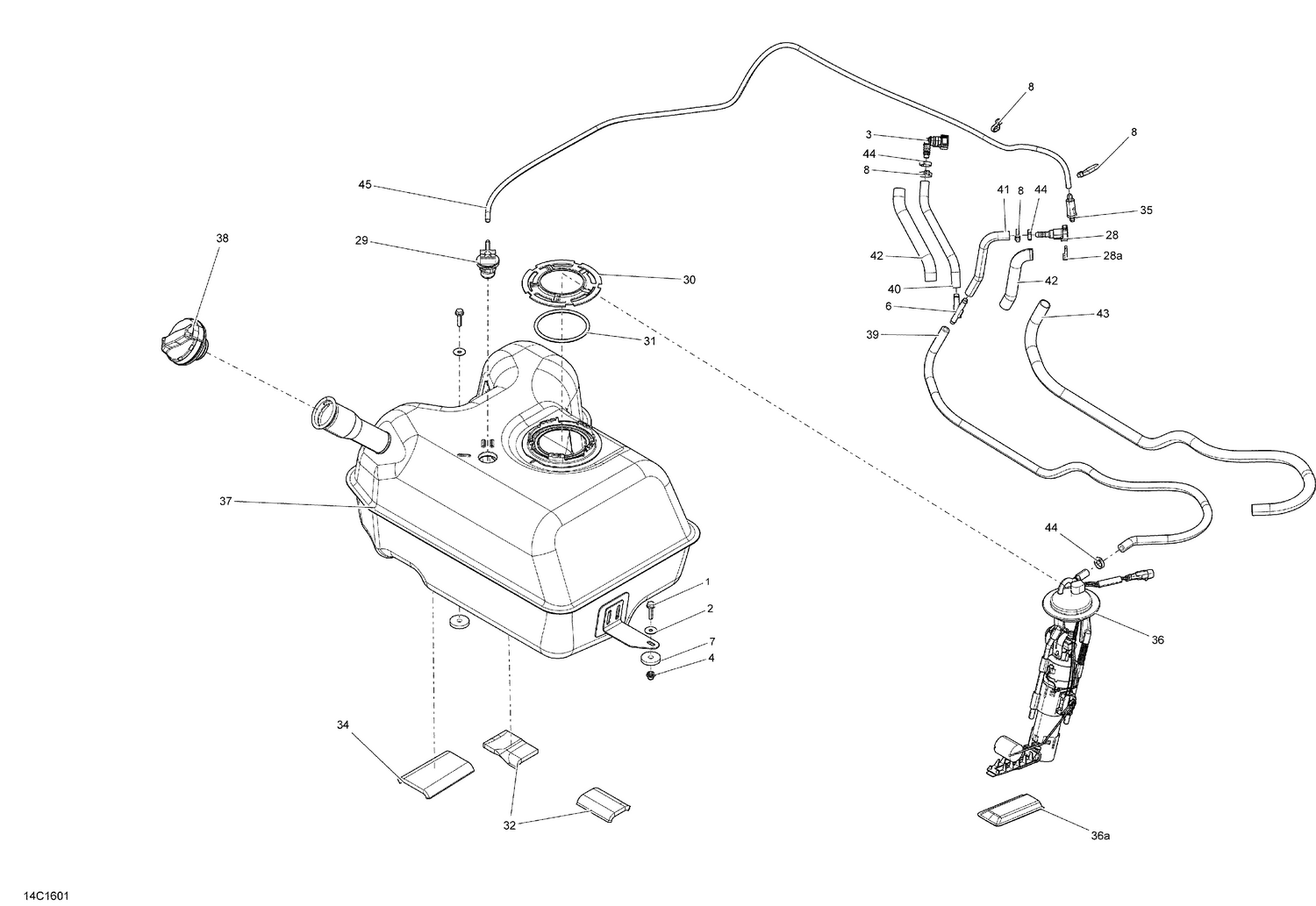

02- Fuel System

02- Fuel System

Parts (23)

RefPart NumberDescription
1 207662544 Hex. Flange Screw M6 X 25
2 224060201 Flat Washer
3 275500700 Quick Attach 90°
4 250100242 Threaded Insert M6 X 1.0 This part replaces 293450274.
6 293710136 Y-Fitting, 5/16''
7 293830037 Rubber Washer
8 414115200 Tie-Rap 180 mm
28 275500700 Quick Attach 90°
29 709000413 Rollover Valve This part replaces 709000127.
30 709000274 Ring
31 709000275 O-Ring
32 709000288 Neoprene Pad
34 709000289 NEOPRENE PAD - Call your local BRP dealership
35 709000330 Filter
36 709000759 Fuel Pump
36a 709000389 Fuel Pre-Filter Kit
37 709000753 Fuel Tank
39 219704440 Was 709000163 Fuel Line
40 219704440 Was 709000163 Fuel Line
41 219704440 Was 709000163 Fuel Line
42 219704408 Tubing 16 Mm 1000Mm Long
43 219704408 Tubing 16 Mm 1000Mm Long
44 293650047 Crimp Clamp, 15.3-706R
