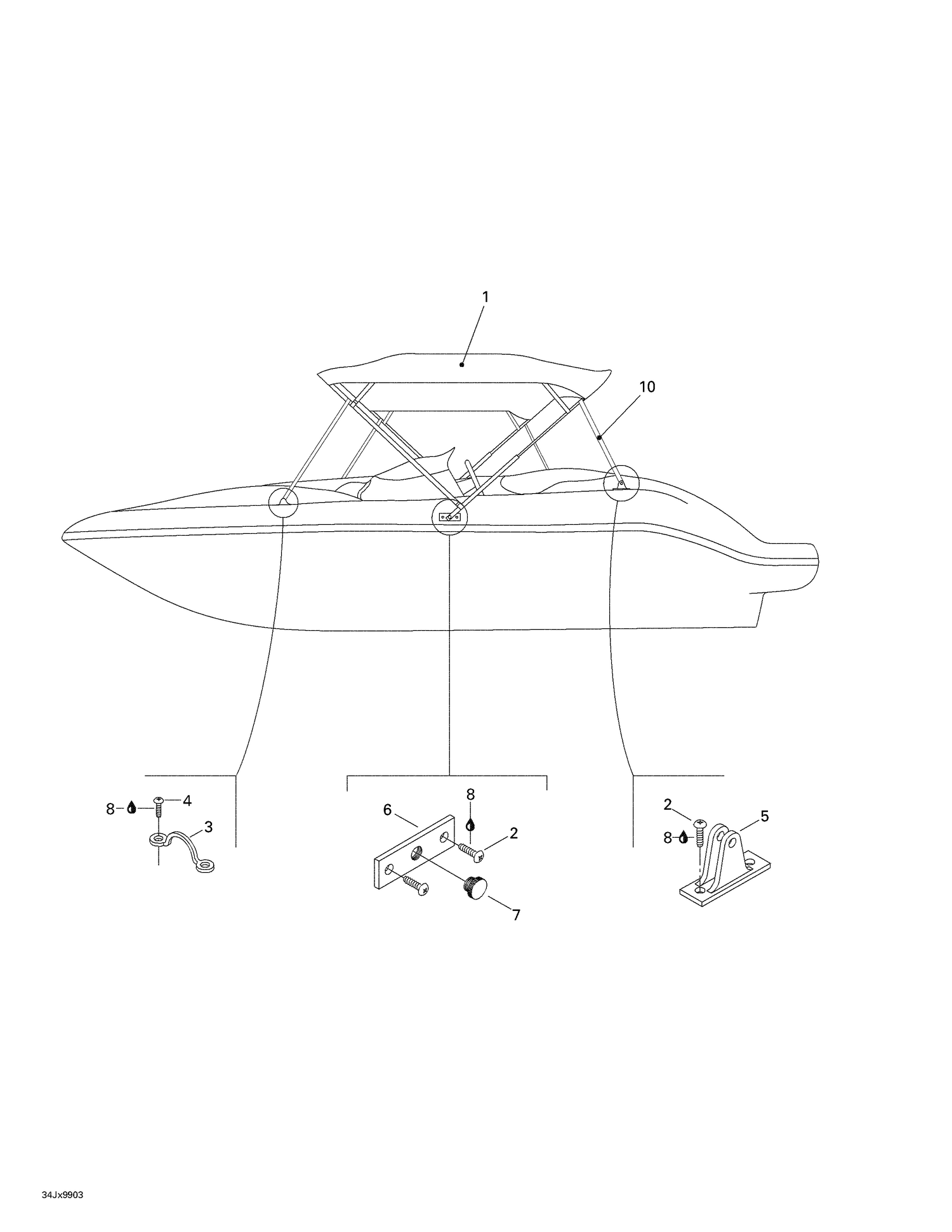

09- Bimini Top
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204070231 | Bimini Top |
| 2 | 208453060 | PHILLIPS SCREW M5 X 30 - Call your local BRP dealership |
| 3 | 204070234 | Strap Tie |
| 4 | 208443060 | Phillips Screw M4 X 30 |
| 5 | 204070235 | Fixation Plate |
| 6 | 204070236 | Fixation Plate |
| 7 | 204070237 | Screw (Plastic) |
| 8 | 219704457 | ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 9 | 204070232 | Bimini Top Boot (Not Shown) |
| 11 | 296000002 | Rubber Rest |
| 12 | 296000003 | Pin Ass'y |
| 13 | 296000001 | Jaw Slide |
