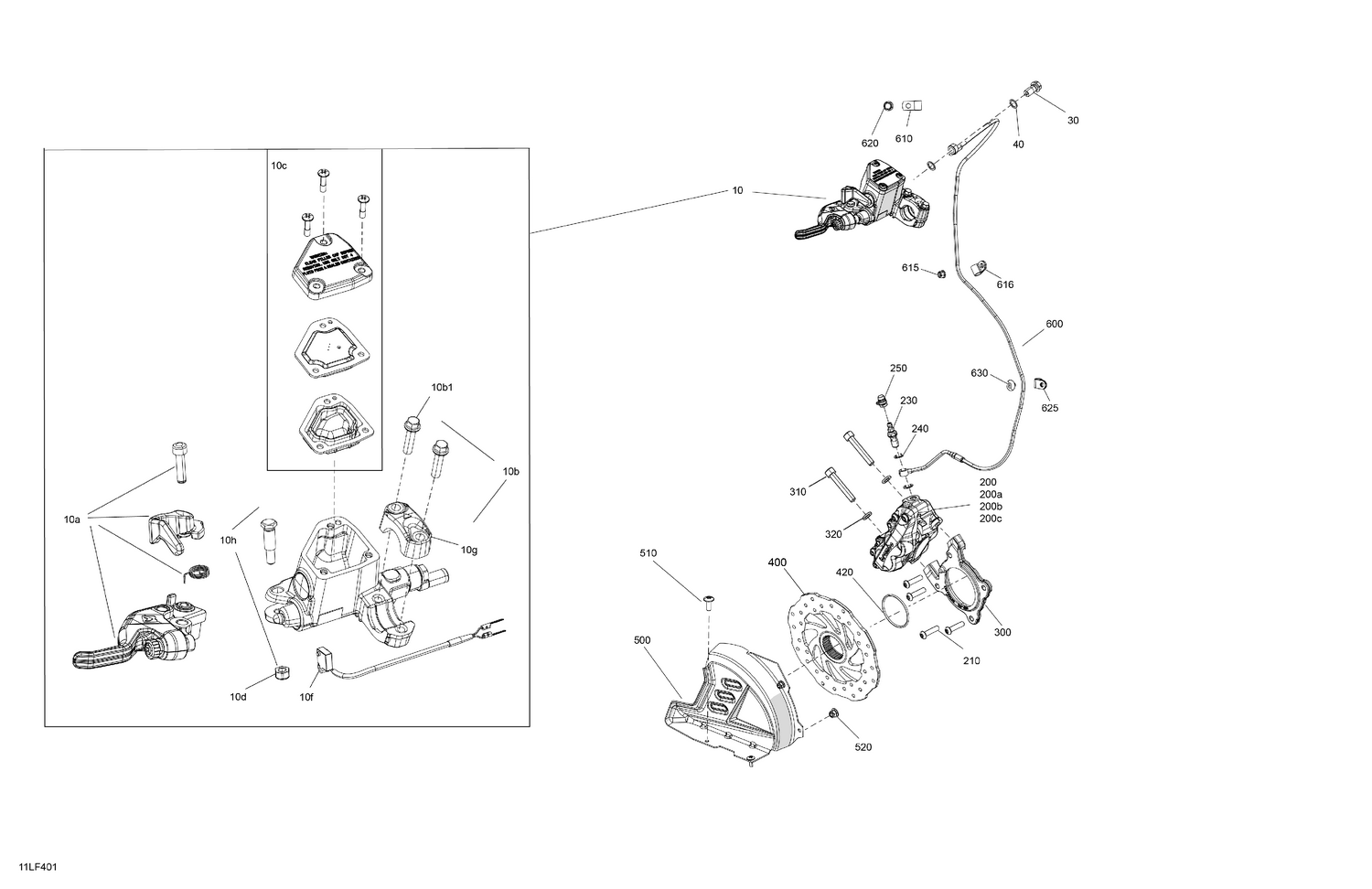

03- Mechanic - Brakes
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 507032745 | Hand Brake Lever Ass'y |
| 10b1 | 229000652 | Hex Flanged Screw M6 X 25 |
| 10c | 507032737 | Reservoir Cover Kit |
| 10d | 507032743 | Nut |
| 10f | 507032738 | Micro Switch |
| 10g | 507032761 | Mounting Clamp |
| 10h | 415030000 | Pin Ass'y |
| 30 | 507032551 | Banjo Bolt |
| 40 | 414920600 | Washer For Hose Connection |
| 200a | 507032724 | Brake Pad Kit |
| 200b | 507032765 | Lock Pin Kit |
| 200c | 507032731 | Spring Support |
| 210 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 |
| 230 | 705601201 | Banjo Bolt/ Bleeder |
| 240 | 414920600 | Washer For Hose Connection |
| 250 | 705601190 | Bleeder Bolt Cap |
| 300 | 507032752 | Machined Brake Caliper Support |
| 310 | 205506044 | Screw Socket S,Grip M10 X 60 |
| 320 | 503192496 | Washer |
| 400 | 507032768 | Machined Brake Disk |
| 420 | 293300221 | O Ring |
| 500 | 507032766 | Disc Brake Guard |
| 510 | 250000717 | Torx Head Screw M6 X 16 |
| 520 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 600 | 507032774 | Caliper Hose |
| 610 | 414108400 | Open Clamp |
| 615 | 233251434 | Flanged Elastic Nut M5 This part replaces 233251414. |
| 616 | 293650257 | Hose Clamp |
| 620 | 210261040 | Hex. Flanged Forming Screw M6 X 10 |
| 625 | 293650257 | Hose Clamp |
