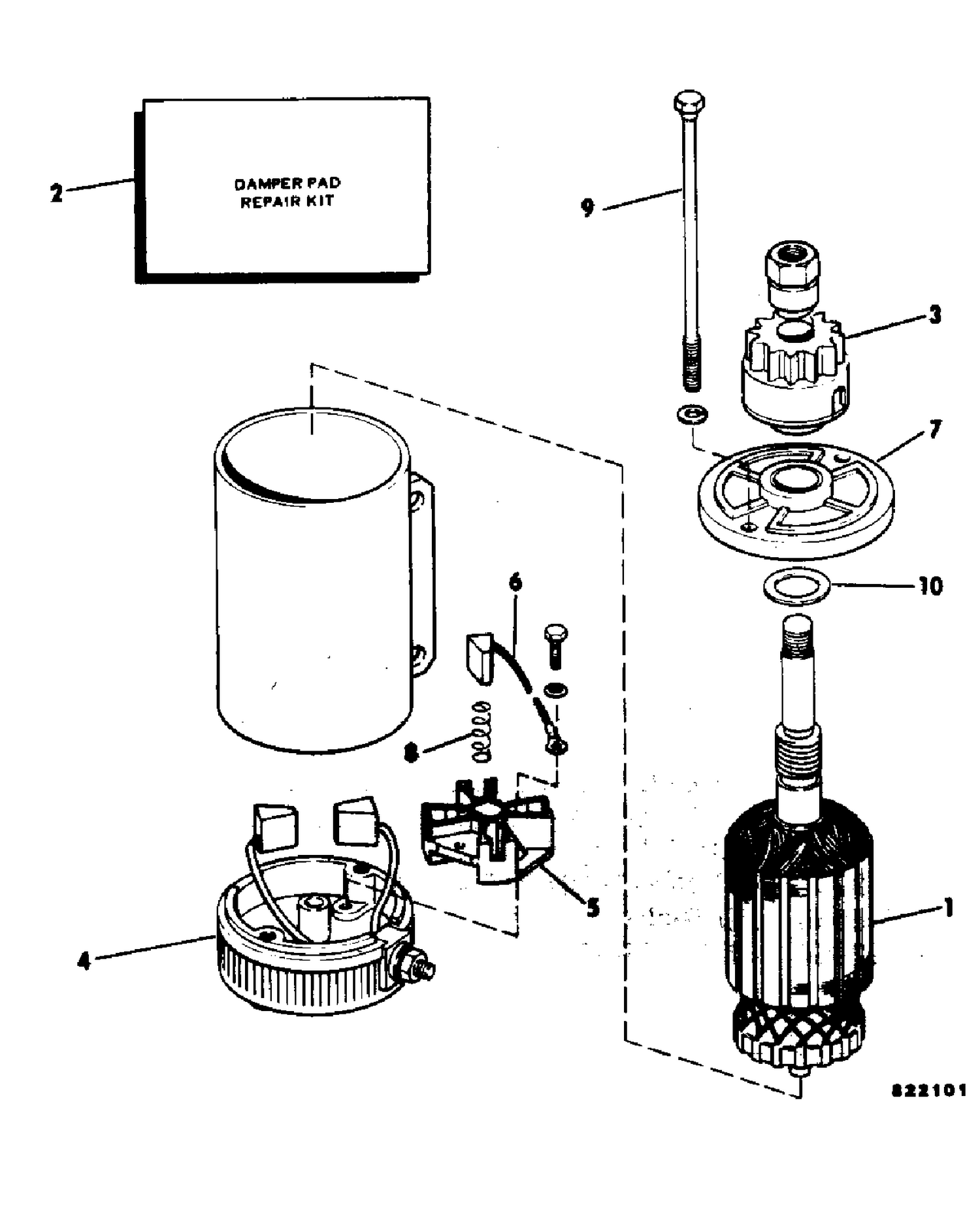

ELECTIRIC STARTER-PRESTOLITE MODELS POC-4001
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0326987 | ARMATURE |
| 2 | 0387735 | DAMPER PAD REPAIR KIT This part replaces 0391746. |
| 3 | 0391664 | DRIVE ASSY. PACKAGE |
| 4 | 0391747 | HEAD ASSY, Commutator, (includes 8 & 10) |
| 5 | 0327097 | PLATE ASSY., Brush |
| 6 | 0391750 | BRUSH SET, (included in item 4) |
| 7 | 0391748 | HEAD ASSY, Drive end |
| 8 | 0391749 | SPRING SET, Brush |
| 9 | 0391659 | THRU BOLT PACKAGE |
| 0389954 | 0389954 | STARTER MOTOR ASS |
