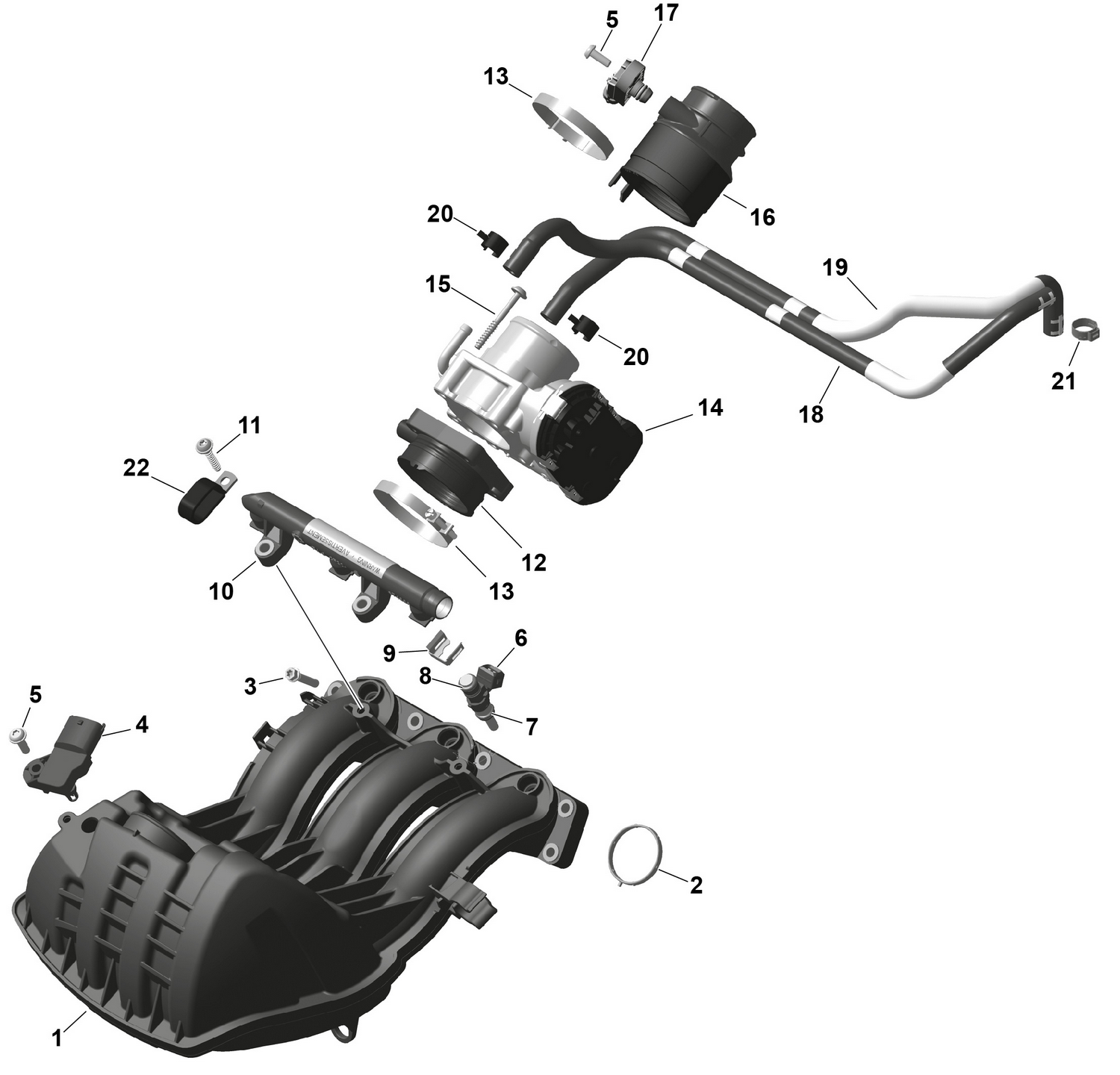

01- ROTAX - Air Intake Manifold And Throttle Body
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 420440647 | Flanged Torx Screw M6 X 30 |
| 4 | 420874651 | Pressure And Temperature Sensor |
| 5 | 420841103 | Flanged Torx Screw M6 X 20 |
| 9 | 420853030 | Clip |
| 10 | 420874966 | Fuel Rail |
| 11 | 420441575 | Flanged Torx Screw M6 X 30 |
| 12 | 420867110 | Connecting Socket |
| 13 | 420251834 | Hose Clamp 45-65/9 |
| 14 | 420893148 | Throttle Body Ass'y |
| 15 | 420441588 | Flanged Torx Screw M6 X 50 |
| 16 | 420867556 | Connecting Socket |
| 17 | 420274052 | Pressure Sensor |
| 18 | 420201506 | Molded Hose |
| 19 | 420201500 | Molded Hose (Water In) |
| 20 | 420853511 | Clamp |
