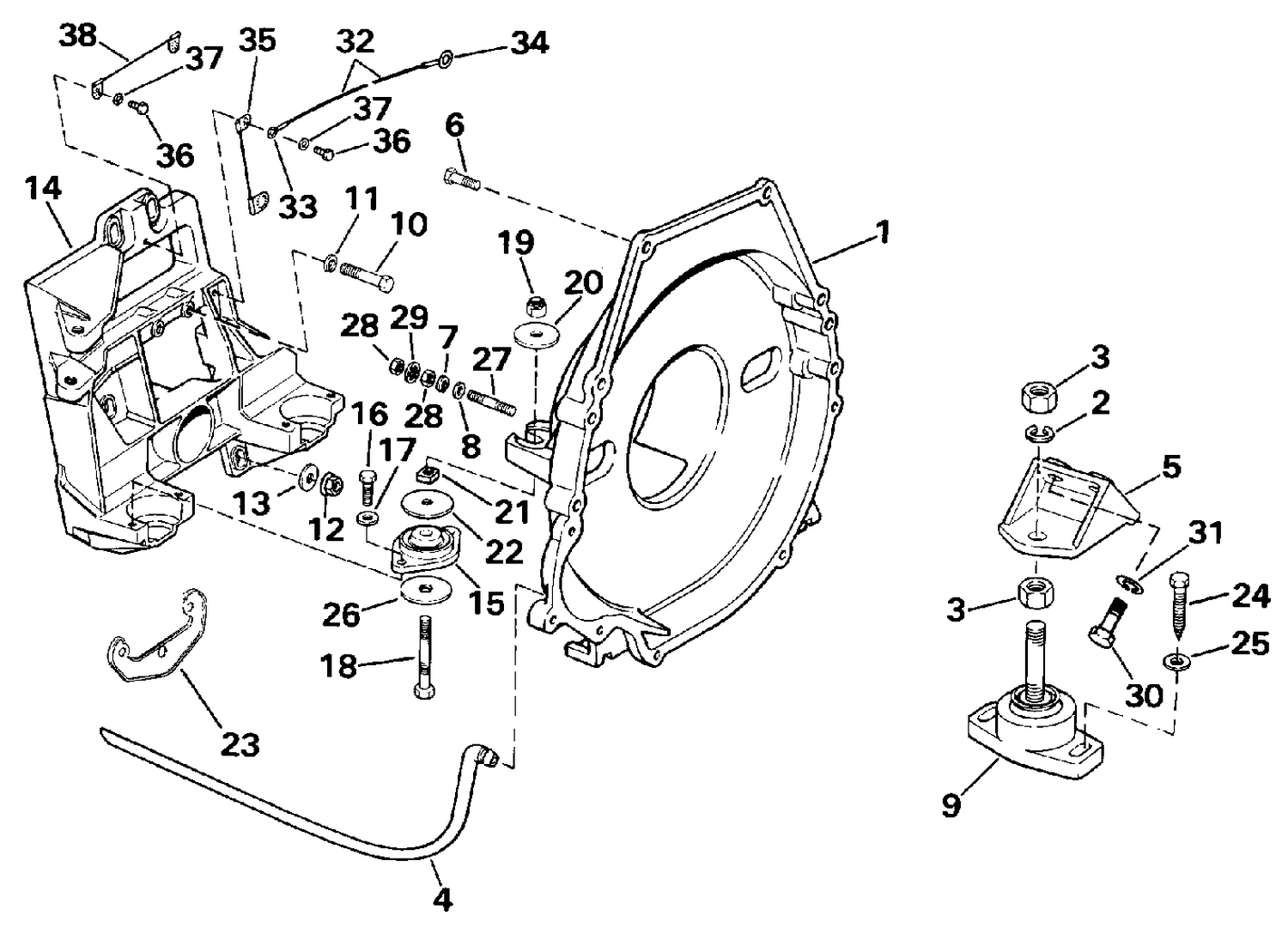

| Ref | Part Number | Description |
|---|
| 1 |
0913945 |
HOUSING, Flywheel |
| 2 |
0312272 |
LOCKWASHER, Front mount |
| 3 |
0311745 |
NUT, Front mount |
| 4 |
3852832 |
HOSE, Flywheel housing This part replaces 0913787. |
| 5 |
0914511 |
MOUNT BRACKET, Front |
| 6 |
3853154 |
SCREW, Bracket to cylinder head This part replaces 0914349. |
| 6 |
3854387 |
SCREW, Bracket, long This part replaces 0914348. |
| 7 |
0120177 |
L'WASHER, Alternator to brkt |
| 9 |
0986386 |
FRONT MOUNT |
| 10 |
0912457 |
SCREW, Transom plate |
| 11 |
0307708 |
RONDELLE GROWER |
| 12 |
3853329 |
LOCKNUT, Transom plate This part replaces 0914772. |
| 13 |
3852573 |
WASHER, Pivot pin This part replaces 0911915. |
| 14 |
3854605 |
TRANSOM PLATE This part replaces 0913826. |
| 15 |
3853806 |
REAR MOUNT This part replaces 0983932. |
| 16 |
0309484 |
SCREW |
| 18 |
0318573 |
SCREW, Bracket mount, 3 1/2 in. (12.7 x 89mm) |
| 19 |
0363254 |
NUT, Stern bracket screw This part replaces 0313623. |
| 20 |
3852540 |
WASHER This part replaces 0911778. |
| 21 |
3852539 |
NUT This part replaces 0911776. |
| 22 |
3852622 |
WASHER, Lower This part replaces 0912889. |
| 23 |
3852605 |
BEARING PLATE This part replaces 0912715. |
| 24 |
3852475 |
LAG SCREW This part replaces 0909716. |
| 25 |
3852078 |
WASHER, Lag screw This part replaces 0308091. |
| 26 |
0912814 |
WASHER |
| 27 |
3852752 |
Stud This part replaces 0913652. |
| 29 |
0306993 |
L'WASHER,Potentiometer,12 V |
| 30 |
0130538 |
SCREW, Bracket to end |
| 31 |
0303269 |
L'WASHER, Upper |
| 32 |
3853927 |
GROUND STRAP, Bracket to engine This part replaces 0986154. |
| 34 |
3852527 |
RING TERMINAL This part replaces 0911523. |
| 35 |
3853928 |
GROUND STRAP, Bracket to stud This part replaces 0986155. |
| 37 |
0329241 |
RONDELLE |
