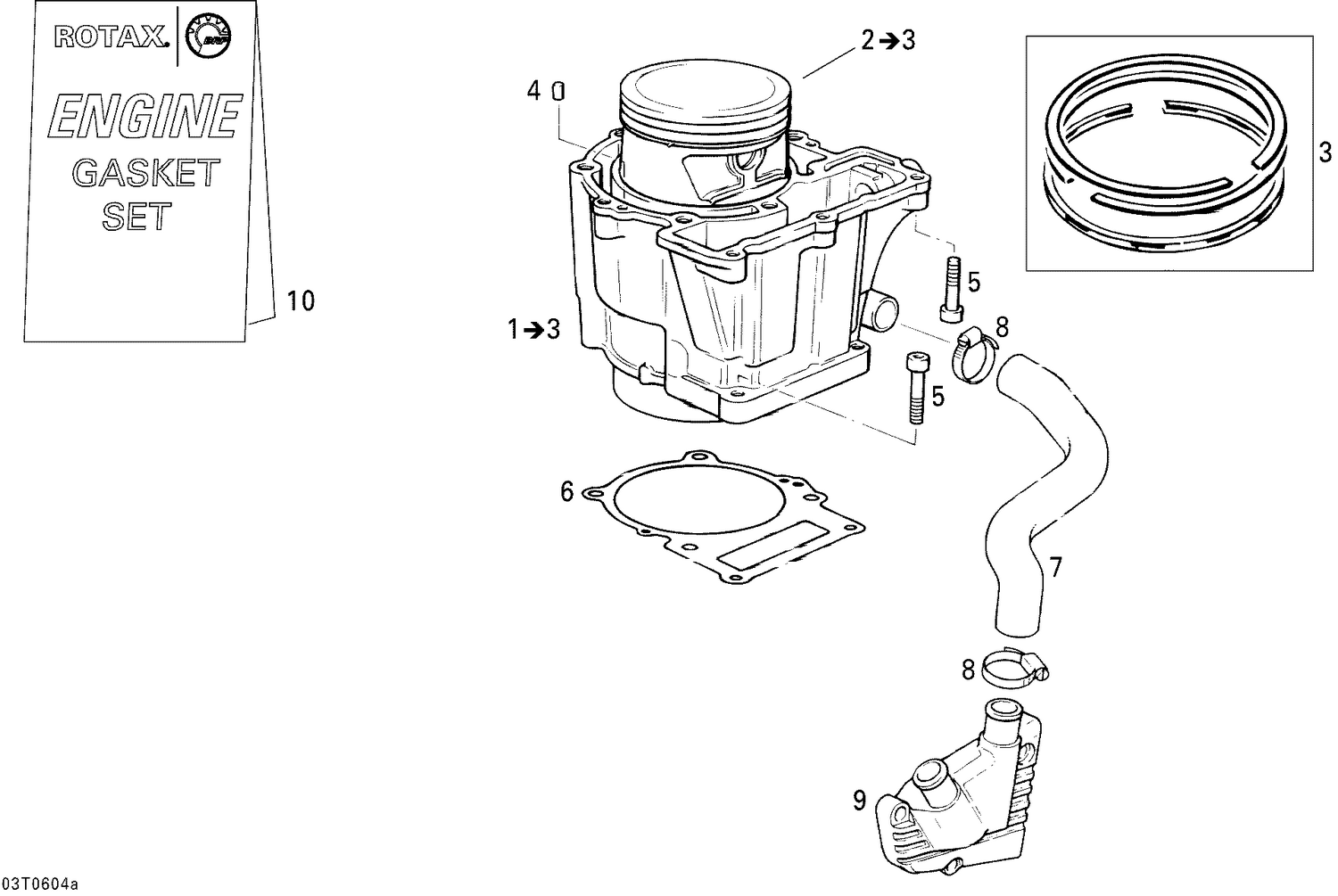

01- Crankshaft, Piston And Cylinder
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 420295184 | Piston Ring Set |
| 4 | 420929650 | Drive Pin 5 X 10 |
| 5 | 205063044 | Socket Head Screw M6 X 30 |
| 6 | 420650010 | Gasket |
| 7 | 420222450 | WATER COOLING HOSE - Call your local BRP dealership |
| 8 | 293650051 | Tridon Gear Clamp This part replaces 420951870. |
| 9 | 420211270 | WATER PUMP COVER - Call your local BRP dealership |
