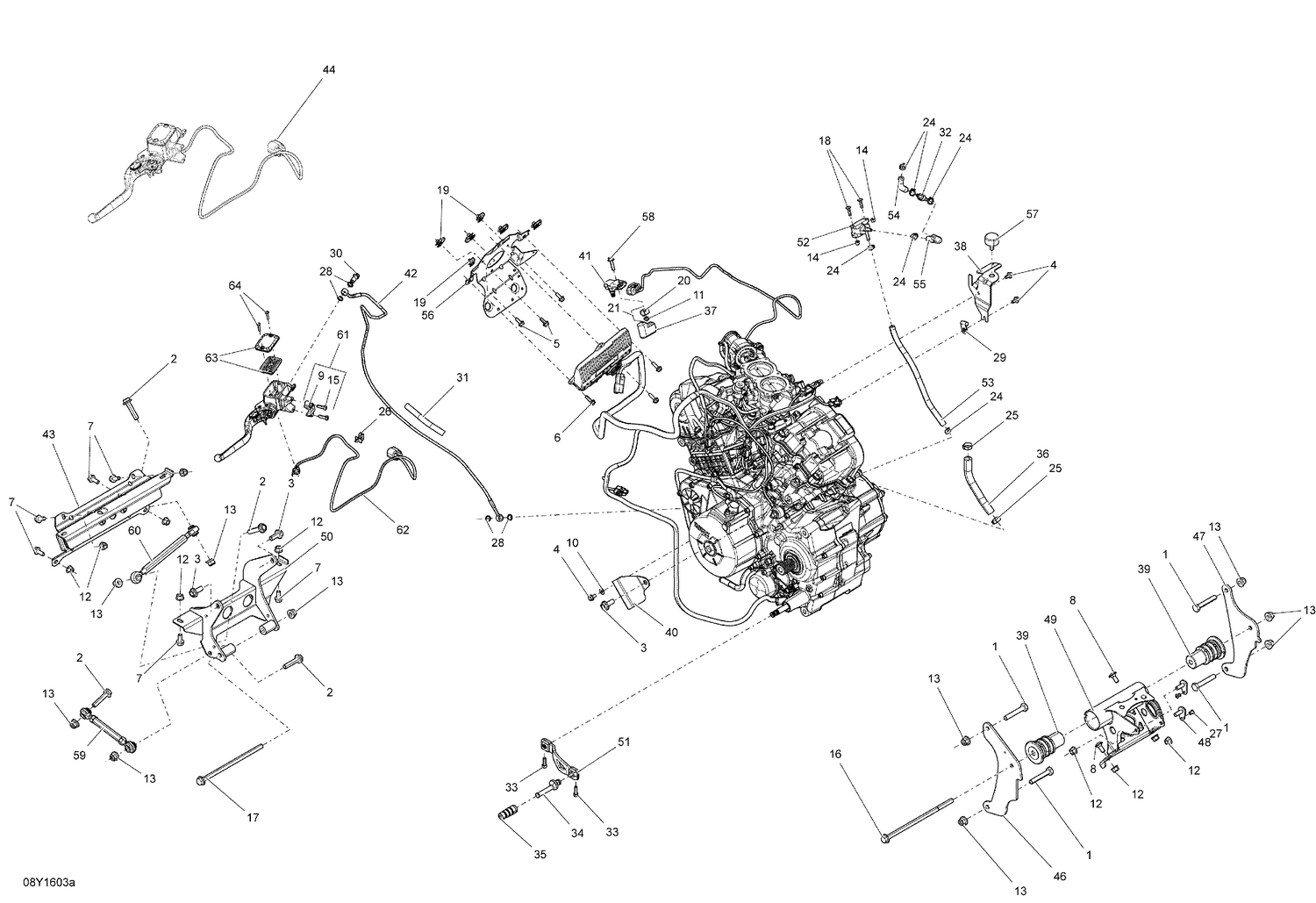

01- Engine - SM5
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207006044 | HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 2 | 207504546 | Hex. Flange Screw M10 X 45 Scotch Grip |
| 3 | 207602544 | Hex. Flange Screw M10 X 25 |
| 4 | 207661244 | Hex. Flange Screw M6 X 12 |
| 5 | 207661644 | Hex. Flange Screw M6 X 16 |
| 6 | 207662044 | Hex. Flange Screw M6 X 20 |
| 7 | 207682046 | Hex. Flange Screw M8 X 20 |
| 8 | 207782046 | Carriage Bolt M8 X 20 |
| 9 | 719000049 | Clamps |
| 10 | 224061121 | Flat Washer |
| 11 | 232561600 | Hex. Elastic Stop Nut M6 |
| 12 | 233081416 | Hex. Flange Nut M8 |
| 13 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 15 | 250000433 | Torx Screw M6 X 20 |
| 16 | 250000507 | Hex. Flange Screw M10 X 220 |
| 17 | 250000583 | Hex. Flange Screw M10 X 200 |
| 18 | 250000724 | Torx Screw M5 X 20 |
| 19 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 20 | 269500252 | M6 Nut Housing Ass'y |
| 21 | 269500725 | M6 Nut Housing Ass'y |
| 24 | 293650042 | Oetiker Clamp |
| 25 | 293650186 | Oetiker Clamp |
| 26 | 293750009 | Tie-Rap 173 mm |
| 27 | 390402300 | Pop Rivet 3/16" |
| 28 | 414920600 | Washer |
| 29 | 415052400 | Bracket |
| 30 | 507032551 | Banjo Bolt |
| 31 | 219704399 | Was 409901700 Tubing (9 mm) |
| 32 | 513033469 | Check Valve |
| 33 | 250001077 | Socket Head Screw Scotch Grip M6 X 20 This part replaces 514054626. |
| 34 | 707000455 | Adjustment Rod |
| 35 | 707000456 | End Clutch Pedal |
| 36 | 219704436 | HOSE-11.1MM. 1000MM LONG - Call your local BRP dealership |
| 37 | 707000586 | Foam Filter |
| 38 | 707000756 | Intake Support |
| 39 | 707000814 | RUBBER MOUNT - Call your local BRP dealership |
| 40 | 707000845 | DEFLECTOR - Call your local BRP dealership |
| 41 | 707000995 | Pressure And Temperature Sensor |
| 42 | 707001050 | HOSE - Call your local BRP dealership |
| 43 | 707001056 | Front Rubber Mount |
| 44 | 707001084 | Clutch Lever Ass'y |
| 47 | 707001239 | RH ENGINE SUPPORT - Call your local BRP dealership |
| 48 | 707001292 | Attach |
| 49 | 707001331 | Extention |
| 50 | 707001336 | FRONT ENGINE SUPPORT - Call your local BRP dealership |
| 51 | 707001458 | LEVER - Call your local BRP dealership |
| 52 | 707001596 | Solenoid Valve |
| 54 | 709000653 | HOSE 6,35MM ID - 485MM - Call your local BRP dealership This part replaces 707001718. |
| 55 | 707001720 | FORMED HOSE - Call your local BRP dealership |
| 56 | 707800469 | BRACKET - Call your local BRP dealership |
| 57 | 708000758 | Rubber Stopper |
| 58 | 207662554 | Hex. Flange Screw M6 X 25 |
| 59 | 707001358 | Connecting Rod This part replaces 707001919. |
