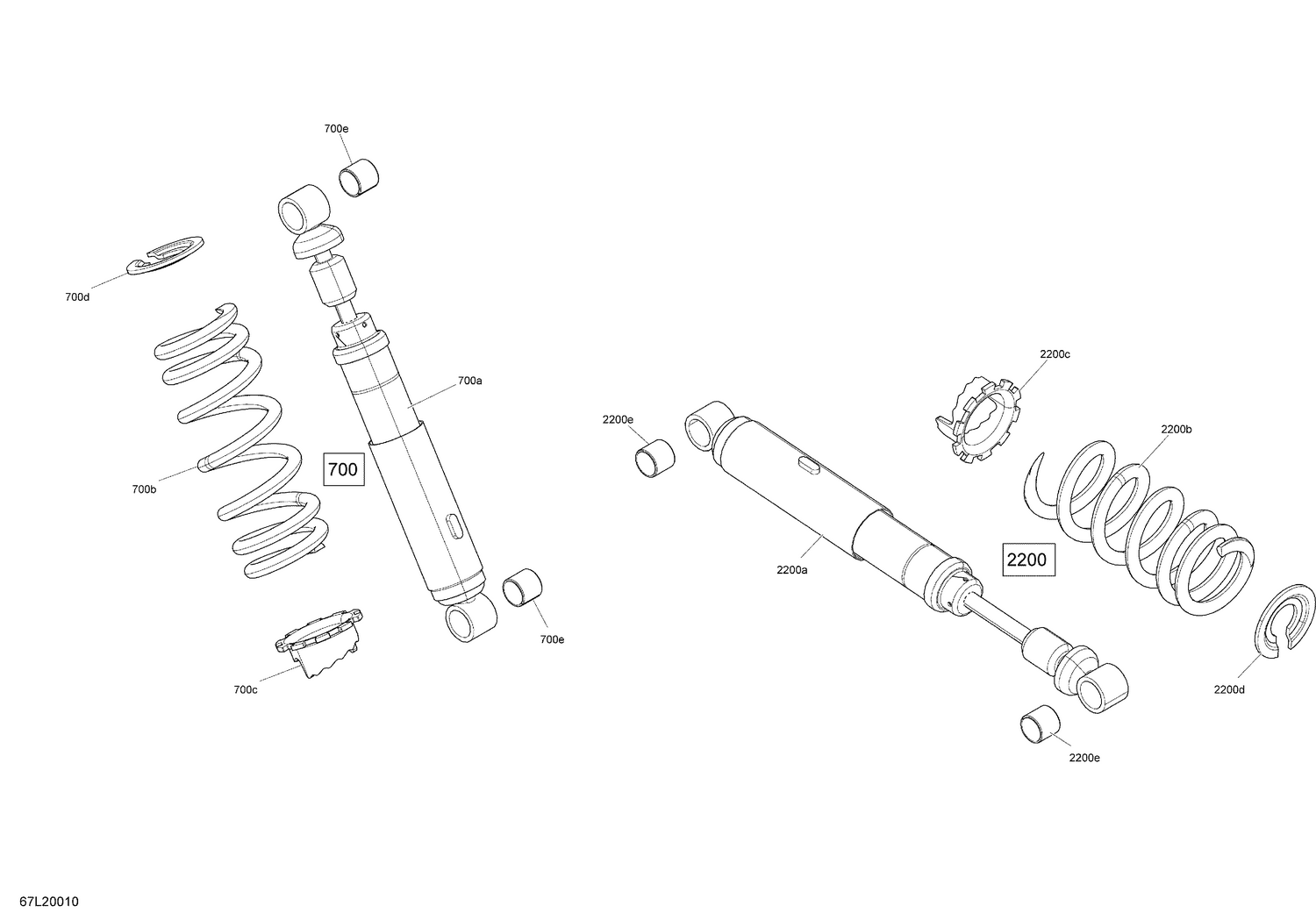

08- Suspension, Rear - Shocks
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 700 | Not | Available As Spare Part - Shock Assembly, Center |
| 700a | 503193517 | Shock, Center |
| 700b | 503191848 | White Spring |
| 700c | 230078 | Adjusting Cam |
| 700d | 230076 | Spring Seat |
| 700e | 31094 | Cushion |
| 2200 | Not | Available As Spare Part - Shock Assembly, Rear |
| 2200a | 503193518 | Shock |
| 2200b | 503192428 | Spring |
| 2200c | 230078 | Adjusting Cam |
| 2200d | 230076 | Spring Seat |
