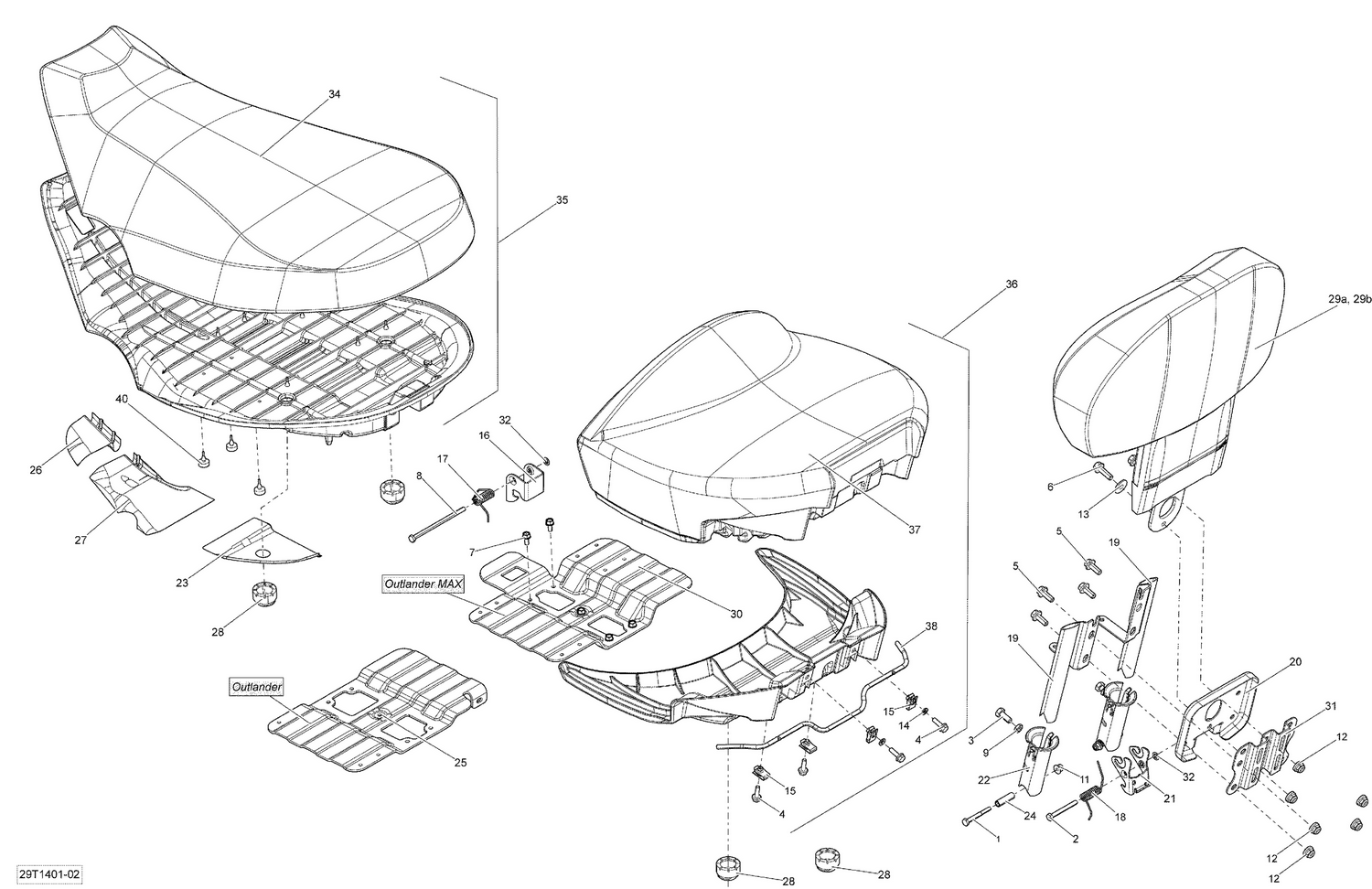

09- Seat
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 7 | 210261250 | Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 8 | 230061044 | Hex. Screw M6 X 110 |
| 16 | 708000144 | Latch, Black |
| 17 | 708000369 | Spring |
| 23 | 708000514 | REFLECTING SHEET - Call your local BRP dealership |
| 26 | 708000649 | REFLECTING SHEET - Call your local BRP dealership |
| 27 | 708000650 | REFLECTING SHEET - Call your local BRP dealership |
| 28 | 708000760 | Bumper Rubber |
| 32 | 732610072 | Push Nut |
| 34 | 708000556 | Seat Cover |
| 35 | 708001506 | Seat Ass'y This part replaces 715500322. |
