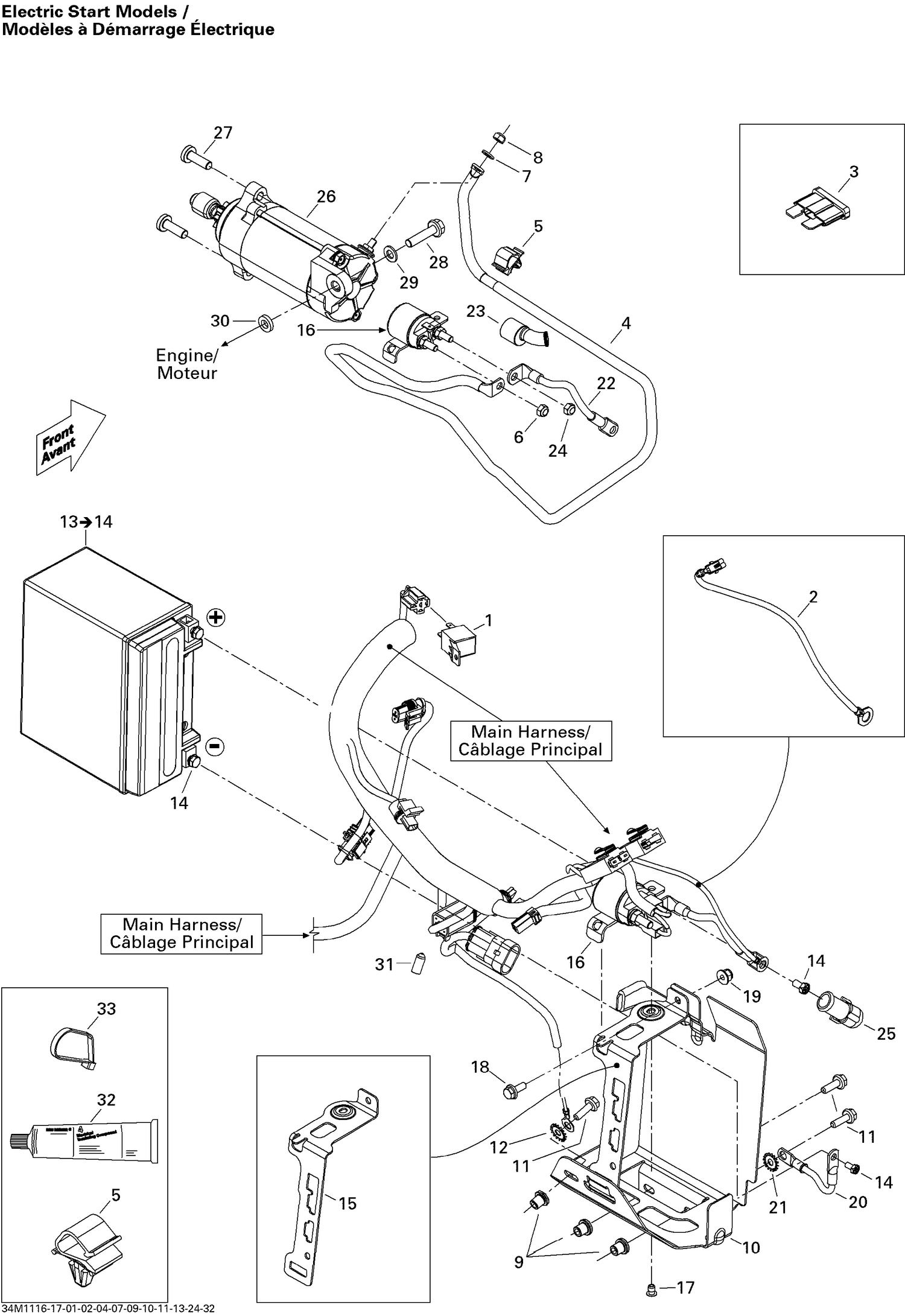

10- Battery And Starter
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 710010053 | Relay This part replaces 515177041. |
| 2 | 515176744 | Fuse Battery Wire |
| 3 | 410917200 | Fuse, 30 Amperes |
| 4 | 515177067 | BATTERY WIRE - Call your local BRP dealership This part replaces 515176785. |
| 5 | 515176795 | Tie Rap Mount (screwable) |
| 6 | 232561414 | Elastic Stop Nut M6 |
| 7 | 234061410 | Flat Washer 6 mm |
| 8 | 232561414 | Elastic Stop Nut M6 |
| 9 | 293450275 | Insert This part replaces 415107300. |
| 10 | 515176886 | BATTERY SUPPORT ASS'Y - Call your local BRP dealership |
| 11 | 207662044 | Hex. Flange Screw M6 X 20 |
| 12 | 250200041 | Lock Washer Serrated M6 |
| 14 | 250000282 | Battery Bolt Kit This part replaces 295500849. |
| 15 | 515177008 | BATTERY STRIP - Call your local BRP dealership |
| 16 | 515176501 | Starter Relay |
| 17 | 390402200 | Pop Rivet 3/16" |
| 18 | 207661644 | Hex. Flange Screw M6 X 16 |
| 19 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 20 | 515176358 | Ground Wire |
| 21 | 250200041 | Lock Washer Serrated M6 |
| 22 | 515176556 | BATTERY WIRE - Call your local BRP dealership |
| 23 | 515175919 | Protector Cap |
| 24 | 232561414 | Elastic Stop Nut M6 |
| 25 | 710000495 | Protector Cap |
| 26 | 515178473 | Starter This part replaces 515176858. |
| 27 | 250000752 | Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248. |
| 28 | 207583544 | Hex Flange Screw M8 X 35, Scotch Grip |
| 29 | 250200008 | Flat Washer With Teflon 8 mm |
| 31 | 515176141 | Cap |
| 32 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 33 | 293750001 | Tie Wrap 94 mm |
| 33 | 293750002 | Tie Wrap 142 mm |
| 33 | 293750009 | Tie-Rap 173 mm |
| 33 | 414115200 | Tie-Rap 180 mm |
