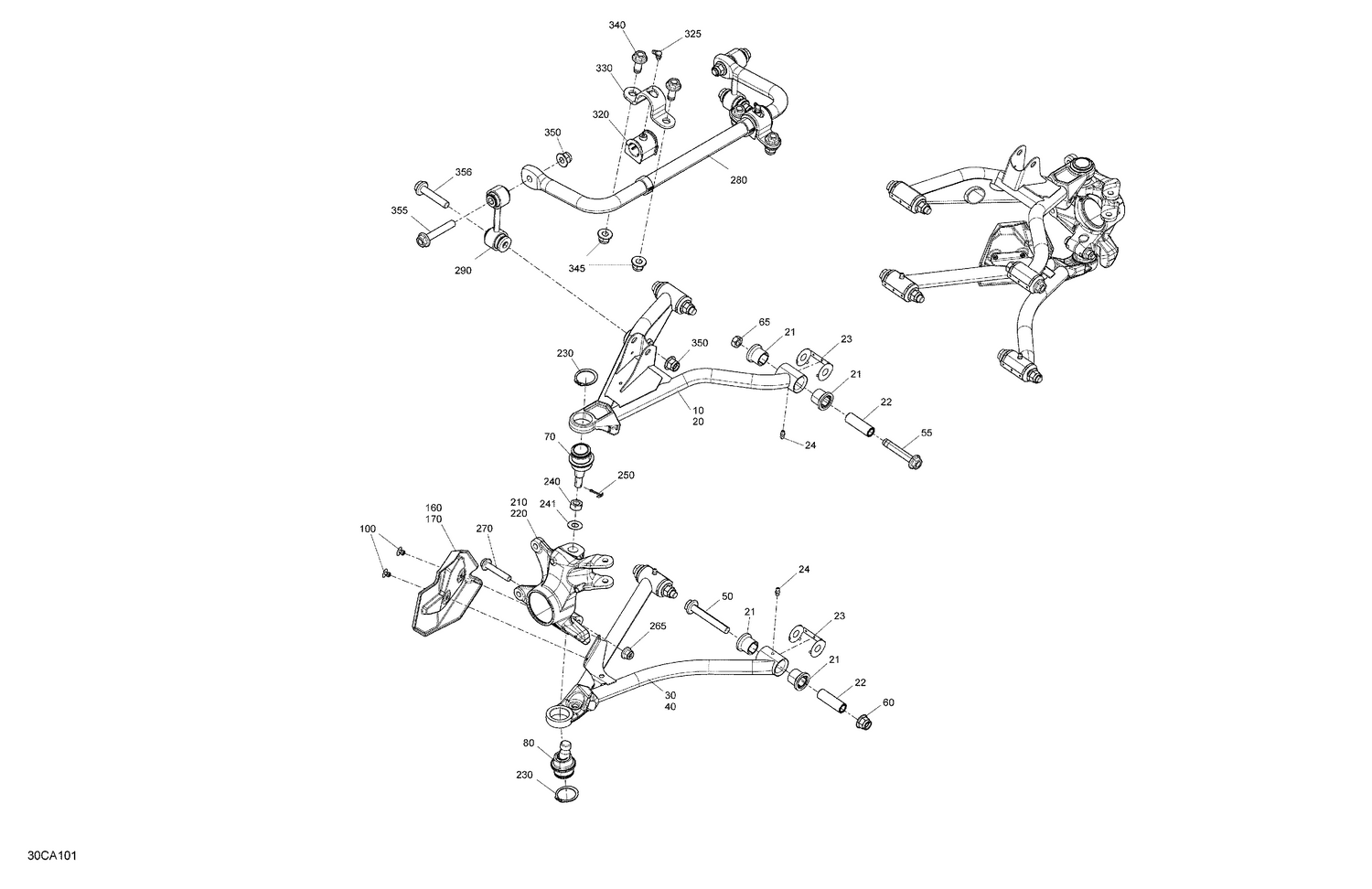

05- Suspension - Front - Built Before January 17th 2021
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 21 | 706204409 | Suspension Arm Bushing |
| 22 | 706202257 | Interior Bushing |
| 23 | 706202300 | Wear Plate |
| 24 | 408200700 | Grease Fitting |
| 50 | 250000859 | Flange Screw M12 X 85 |
| 55 | 250000859 | Flange Screw M12 X 85 |
| 60 | 250001195 | Elastic Flange Nut M12 |
| 65 | 250001195 | Elastic Flange Nut M12 |
| 70 | 706203084 | Ball Joint |
| 80 | 706202045 | Ball Joint |
| 100 | 293150104 | Pop Rivet 3/16" |
| 160 | 706202135 | RH CV joint Guard |
| 170 | 706202134 | LH CV joint Guard |
| 210 | 706202842 | LH Front Knuckle |
| 220 | 706202844 | RH Front Knuckle |
| 230 | 293370035 | Circlip |
| 240 | 250100099 | Nut M12 |
| 241 | 706200281 | Hardened Washer This part replaces 250200086. |
| 250 | 211400017 | Cotter Pin |
| 265 | 233201436 | Hex. Flange Elastic Nut M10 |
| 270 | 207605546 | Hex. Flange Screw M10 X 55 |
| 290 | 706202937 | Sway Bar Double Link |
| 325 | 293550056 | Grease Fitting 90° |
| 330 | 706203437 | Clamp |
| 340 | 250000951 | Hex. Flange Screw DIN.6921 |
| 345 | 250001195 | Elastic Flange Nut M12 |
| 350 | 250001195 | Elastic Flange Nut M12 |
| 355 | 250000858 | Hex. Flange Screw M12 X 70 |
