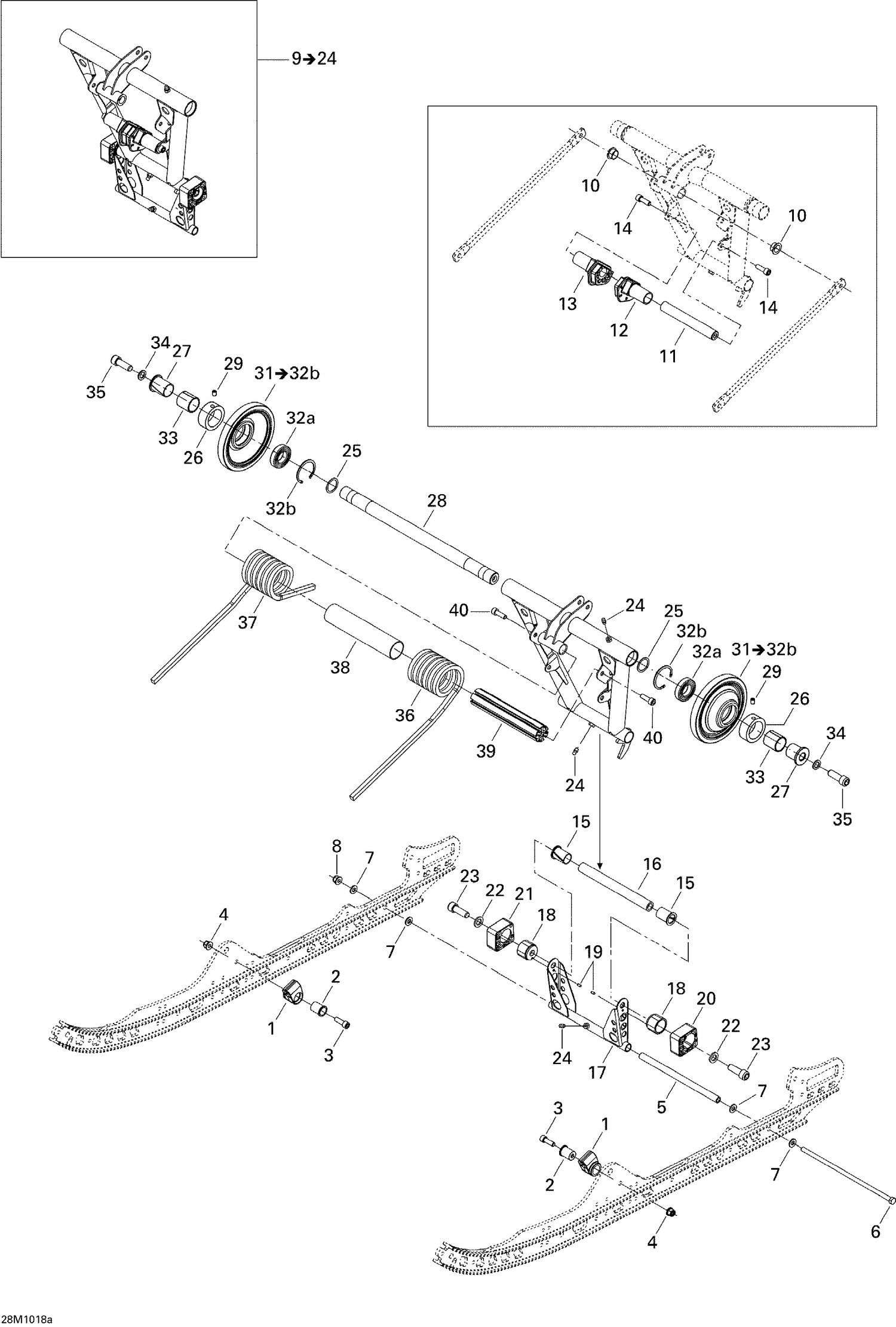

08- Rear Arm 1, LE
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 861805547 | Spring Support Kit This part replaces 503191183. |
| 2 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 3 | 205082544 | Socket Head Screw M8 X 25 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 |
| 5 | 503189156 | Pivot Arm Axle |
| 6 | 503192440 | Bolt M8 X 248mm This part replaces 732601198. |
| 7 | 503189157 | Washer |
| 8 | 233281414 | Hex. Flange Elastic Nut M8 |
| 9 | 503191785 | Rear Arm Ass'y |
| 10 | 503191555 | Swivel Bushing |
| 11 | 503191178 | Spring Cam Axe |
| 12 | 503191191 | LH Spring Cam |
| 13 | 503191190 | RH Spring Cam |
| 14 | 205582544 | Socket Head Screw M8 X 25, Scotch Grip |
| 15 | 503191640 | Cushion |
| 16 | 503192330 | Lower Shaft This part replaces 503190687. |
| 17 | 503191302 | Pivot Arm |
| 18 | 503189488 | Block Guide |
| 19 | 250400005 | Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership |
| 20 | 503192301 | LH Block, 4 Positions |
| 21 | 503192300 | RH Block, 4 Positions |
| 22 | 503189148 | Washer |
| 23 | 205523544 | Socket Head Screw M12 X 35, Scotch Grip |
| 24 | 408200700 | Grease Fitting |
| 25 | 503191774 | Washer |
| 26 | 503191782 | Retaining Ring |
| 27 | 503191775 | Bushing |
| 28 | 503191776 | Upper Shaft |
| 29 | 206260844 | Socket Set Screw M6 X 8 |
| 31 | 503191777 | Black Wheel Ass'y, 144 mm |
| 32a | 503191778 | Ball Bearing |
| 32b | 415129371 | Retaining Ring |
| 33 | 503191773 | Bushing |
| 34 | 503189276 | Washer |
| 35 | 207226044 | HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership |
| 36 | 503191188 | LH SPRING, SQUARE - Call your local BRP dealership |
| 37 | 503191186 | RH SPRING, SQUARE - Call your local BRP dealership |
| 38 | 503191345 | Plastic Bushing |
| 39 | 503191344 | Spring Axle |
