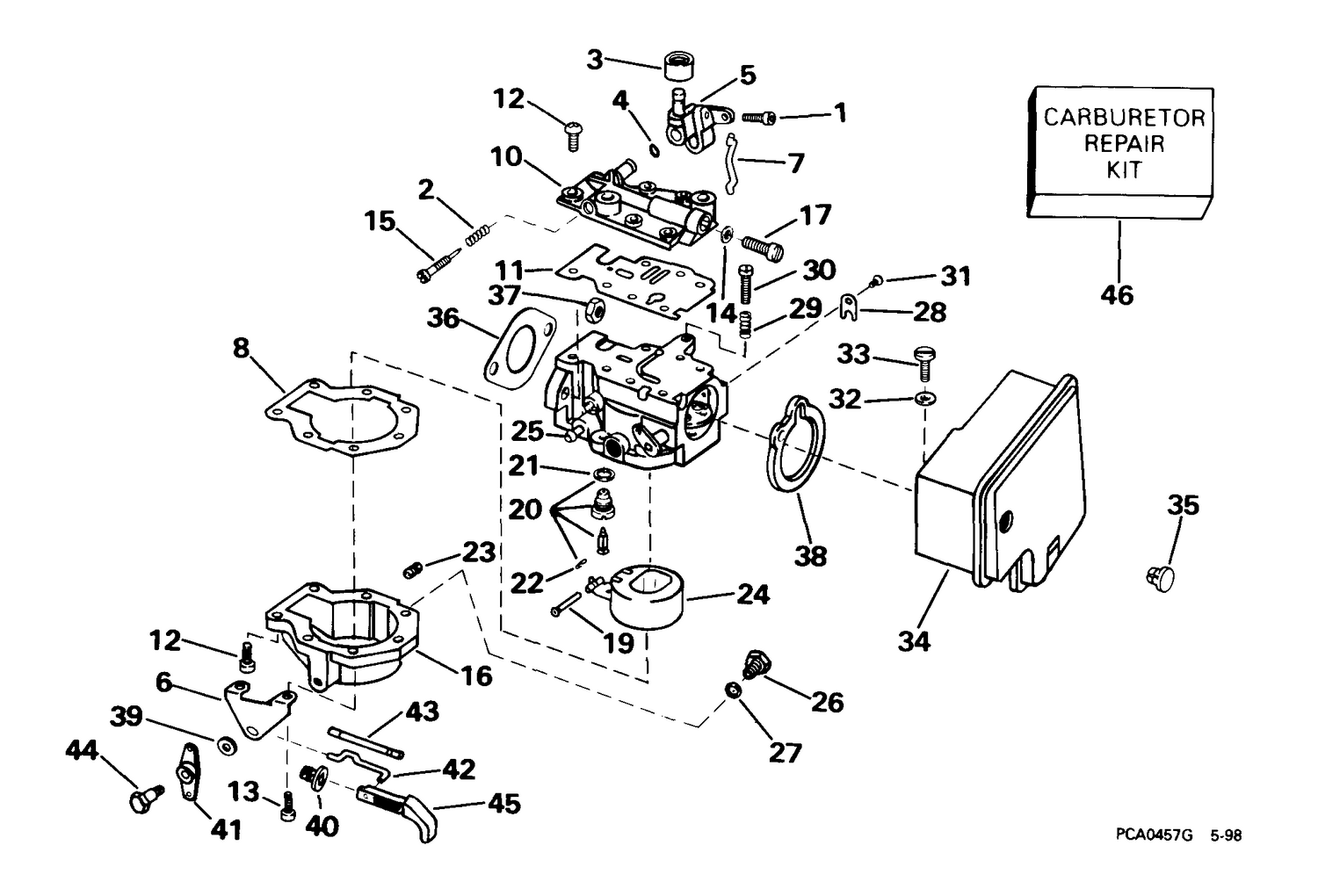

CARBURETOR
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 22 | 0336842 | CLIP, SPRING |
| 33 | 0331758 | SCREW, Air horn to carburetor |
| 34 | 0433984 | AIR SILENCER |
| 35 | 0333011 | PLUG |
| 36 | 0318932 | JOINT |
| 37 | 0328742 | NUT |
| 38 | 0335389 | SEAL, Air silencer to carb |
| 39 | 0303887 | WASHEER, Pin to swivel bracket |
| 40 | 0335253 | BAGUE, bouton de starter |
| 41 | 0336369 | BELLCRANK, Choke knob |
| 42 | 0335961 | LINK, Bellcrank to knob |
| 43 | 0336370 | LINK, Bellcrank to lever |
| 44 | 0339185 | SCREW, Bellcrank |
| 45 | 0338965 | CHOKE KNOB |
| 0439932 | 0439932 | CARBURETOR Assy |
| 0439984 | 0439984 | CARBURETOR Assy, |
