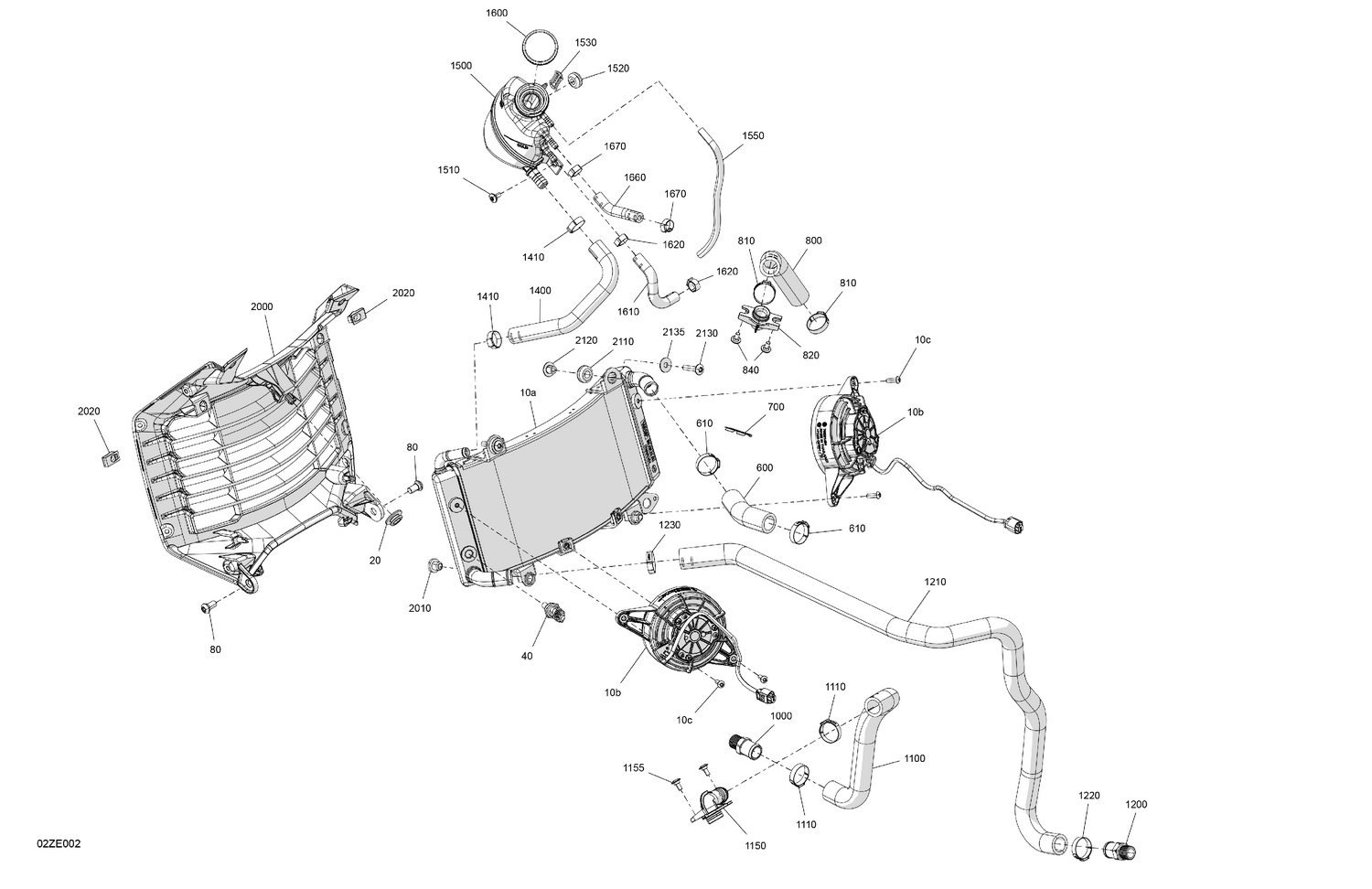

02- Power Pack - Cooling
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 709201247 | Formed Radiator |
| 10b | 709201494 | Cooling Fan |
| 10c | 250001241 | Screw Torx M5 X 12 |
| 20 | 293720142 | Grommet |
| 40 | 278002895 | Temperature Sensor |
| 80 | 250013011 | Shoulder Screw M8 X 16 |
| 600 | 709201269 | Radiator Hose OUT |
| 610 | 293650099 | Crimp Clamp |
| 700 | 509001420 | External Retaining Ring |
| 800 | 709201246 | Water Pump Hose Out |
| 810 | 293650099 | Crimp Clamp |
| 820 | 709201556 | Coolant Manifold Ass'y |
| 840 | 250001308 | Torx Screw M5 X 12 |
| 1000 | 709201557 | Coolant Manifold Ass'y |
| 1100 | 709201276 | Engine Hose IN |
| 1110 | 293650099 | Crimp Clamp |
| 1150 | 709201558 | Coolant Manifold Ass'y |
| 1155 | 250001308 | Torx Screw M5 X 12 |
| 1200 | 709201557 | Coolant Manifold Ass'y |
| 1210 | 709201277 | Engine Hose OUT |
| 1220 | 293650099 | Crimp Clamp |
| 1230 | 293650099 | Crimp Clamp |
| 1400 | 709201281 | Coolant Tank Hose |
| 1410 | 293650012 | Oetiker Clamp |
| 1500 | 709201182 | Coolant Tank |
| 1510 | 250001308 | Torx Screw M5 X 12 |
| 1520 | 414036300 | Grommet |
| 1530 | 705004838 | Flat Clip |
| 1550 | 219704360 | Hose 6 Mm 15000Mm Long |
| 1600 | 509001347 | Coolant Tank Cap |
| 1610 | 509001348 | Vent Hose |
| 1620 | 293650025 | Oetiker Gear Clamp |
| 1660 | 509001391 | Vent Hose |
| 1670 | 293650025 | Oetiker Gear Clamp |
| 2000 | 705017444 | Grille |
| 2010 | 293720029 | Grommet |
| 2020 | 250100198 | Panel Nut M6 X 1.0 |
| 2110 | 709000582 | Grommet |
| 2120 | 709001288 | Bushing |
| 2130 | 250000843 | Torx Truss Screw M6 X 30 |
