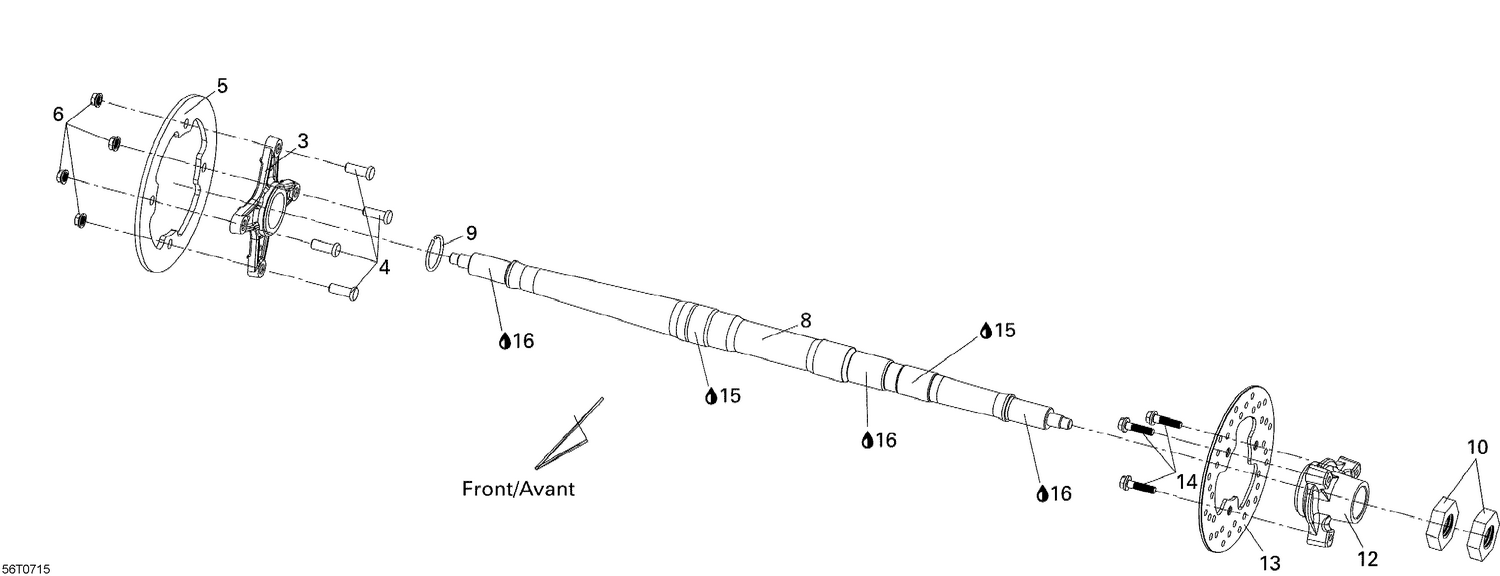

08- Drive Shaft
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 3 | S40112RCA000 | Rear Sprocket Holder Ass'y This part replaces S40115RCA000. |
| 4 | S90114RCA000 | Rear Hub Bolt |
| 5 | S41201RCA000 | Sprocket |
| 6 | S90304M9Q800 | Hex. Flange Nut 10 mm |
| 8 | S4230ARCA000 | Rear Axle Ass'y This part replaces S42301RCA000. |
| 9 | S42303RCA000 | C-clip |
| 10 | S42302RCA000 | Rear Axle Nut |
| 12 | S43251RCA000 | Rear Brake Disc Holder |
| 13 | S43520RCA000 | Rear Brake Disc |
| 14 | S90105KR3000A | Bolt M8 X 24 |
| 15 | 293800073 | Loctite 277, 10 ml |
