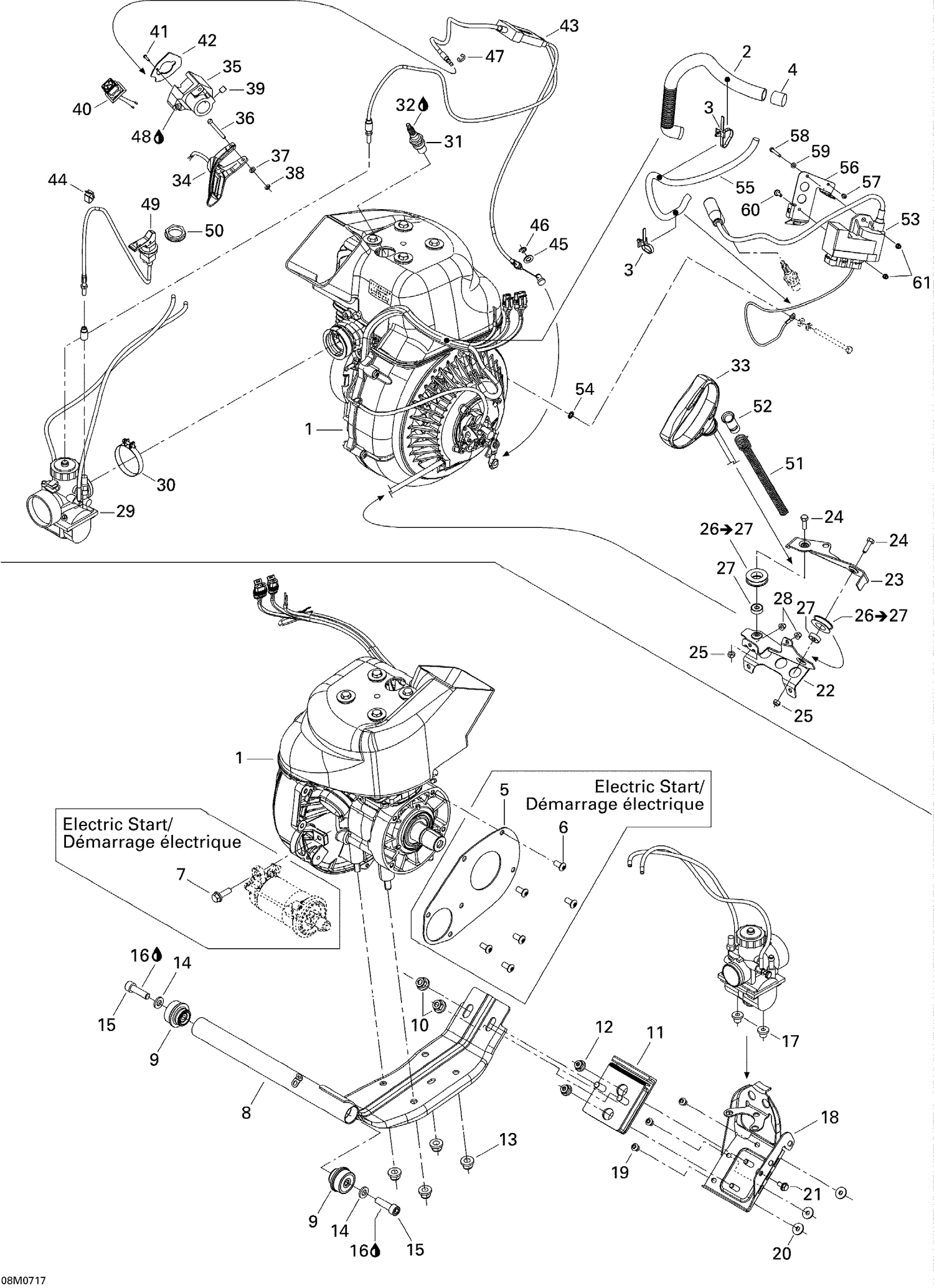

| Ref | Part Number | Description |
|---|
| 1 |
400206006 |
Engine 277 |
| 2 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 3 |
293750009 |
Tie-Rap 173 mm |
| 4 |
Not |
Available As Spare Part - Vinyl Tape 3/4", Black |
| 8 |
512059901 |
ENGINE SUPPORT - Call your local BRP dealership |
| 9 |
512059691 |
Rubber Mount |
| 10 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 11 |
512059958 |
Rubber Mount |
| 12 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 13 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 14 |
Not |
Available As Spare Part - Washer |
| 15 |
205003544 |
Socket Screw M10 X 35 |
| 16 |
413703400 |
Sealant LOCTITE 222MS - Call your local BRP dealership |
| 17 |
293720029 |
Grommet |
| 18 |
512059918 |
PLATE - Call your local BRP dealership |
| 19 |
Not |
Available As Spare Part - Rivet |
| 20 |
Not |
Available As Spare Part - Flat Washer |
| 21 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 22 |
512060010 |
PULLEY SUPPORT - Call your local BRP dealership |
| 23 |
512060032 |
REINFORCEMENT, GUARD - Call your local BRP dealership |
| 24 |
207162044 |
Hex. Screw M6 X 20 |
| 25 |
232561414 |
Elastic Stop Nut M6 |
| 27 |
512060151 |
BALL BEARING - Call your local BRP dealership |
| 28 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 29 |
403138768 |
CARBURETOR VM 34-618 - Call your local BRP dealership |
| 30 |
512059834 |
Gemi Clamp |
| 31 |
219703120 |
Spark Plug NGK BR9ES This part replaces 414961100. |
| 32 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 33 |
572084400 |
Starter Grip |
| 34 |
512060214 |
Handle Ass'y |
| 35 |
512060603 |
Throttle Housing This part replaces 512060193. |
| 36 |
414438700 |
Lever Pin |
| 37 |
234051600 |
Flat Washer M5, Stainless |
| 38 |
293370050 |
Circlip |
| 39 |
414440800 |
Socket Set Screw M8 X 10 |
| 40 |
515177362 |
Emergency Stop Switch This part replaces 515176091. |
| 41 |
250000265 |
TORX SCREW M2.9 X 12 - Call your local BRP dealership |
| 42 |
512060390 |
Plate This part replaces 512059507. |
| 43 |
512059907 |
THROTTLE CABLE - Call your local BRP dealership |
| 44 |
414227300 |
Clip |
| 45 |
234081100 |
Flat Washer 8 mm, Nylon |
| 46 |
414753500 |
Circlip |
| 47 |
414274500 |
Circlip |
| 48 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 49 |
512060005 |
CHOKE CABLE - Call your local BRP dealership |
| 50 |
512060671 |
Plastic Nut This part replaces 512060016. |
| 51 |
512059535 |
ROPE GUIDE - Call your local BRP dealership |
| 52 |
512059536 |
TUBE - Call your local BRP dealership |
| 53 |
512060006 |
Calibrated Module |
| 54 |
394001900 |
EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership |
| 55 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 56 |
512060160 |
MODULE SUPPORT - Call your local BRP dealership |
| 57 |
390402200 |
Pop Rivet 3/16" |
| 58 |
207054044 |
HEX. SCREW M5 X 40 - Call your local BRP dealership |
| 59 |
234051410 |
Flat Washer M5 |
| 60 |
207652044 |
Hex.Flange Screw M5 X 20 |
