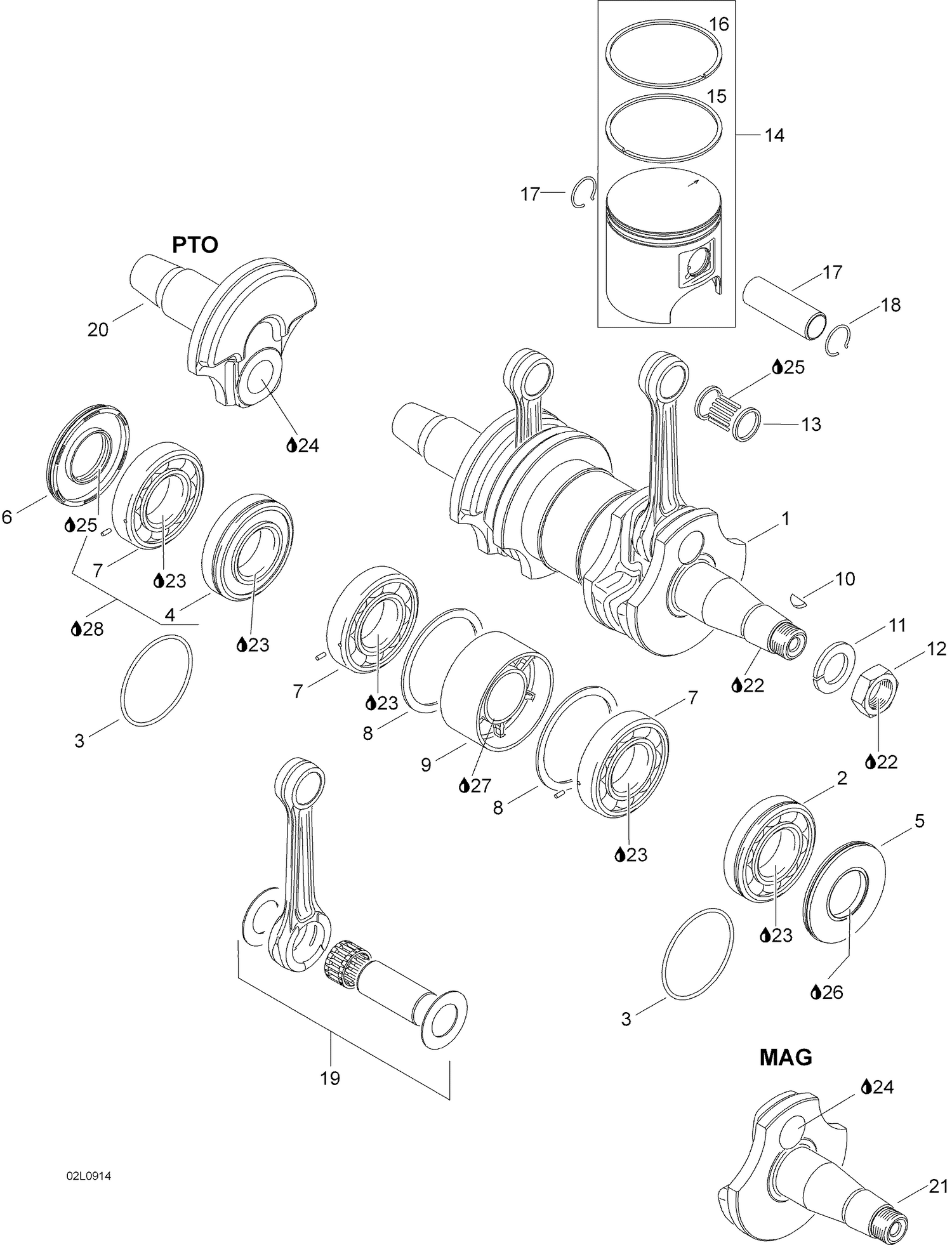

01- Crankshaft And Pistons
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420832571 | Bearing 6207 |
| 3 | 293300022 | O-ring |
| 4 | 420832632 | Ball Bearing This part replaces 420832639. |
| 5 | 420831952 | Oil seal |
| 6 | 420831955 | Oil Seal |
| 7 | 420832573 | B.Bearing 6207 |
| 8 | 420927710 | Retaining disk |
| 9 | 420850149 | Labyrinth sleeve |
| 10 | 420246055 | Woodruff Key |
| 11 | 420945759 | Lock Washer |
| 12 | 420842239 | Hex. Nut, M22 X 1.5 This part replaces 420842234. |
| 13 | 420832420 | NEEDLE BEARING - Call your local BRP dealership |
| 15 | 420815300 | Piston ring 76.00 mm |
| 15 | 420815301 | Piston ring 76.25 mm |
| 15 | 420815302 | Piston ring 76.50 mm |
| 16 | 420815155 | Piston ring 76.00 mm |
| 16 | 420815156 | Piston ring 76.25 mm |
| 16 | 420815157 | Piston ring 76.50 mm |
| 17 | 420916407 | Piston Pin This part replaces 420916405. |
| 18 | 420845106 | Piston Circlip |
| 19 | 420889064 | Rod repair kit |
| 20 | 420819181 | CRANKSHAFT PTO SIDE - Call your local BRP dealership |
| 21 | 420819213 | Crankshaft, MAG Side This part replaces 420819210. |
| 22 | 293800060 | Loctite 221, 10cm3 |
| 23 | 293800070 | Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 24 | 420897340 | Loctite,14486/10cc |
| 25 | Not | Available As Spare Part - BP-energrease LS3 |
| 26 | 420899271 | Petamo grease |
| 27 | 779119 | NEEDS DESCRIPTION This part replaces 413802900. |
