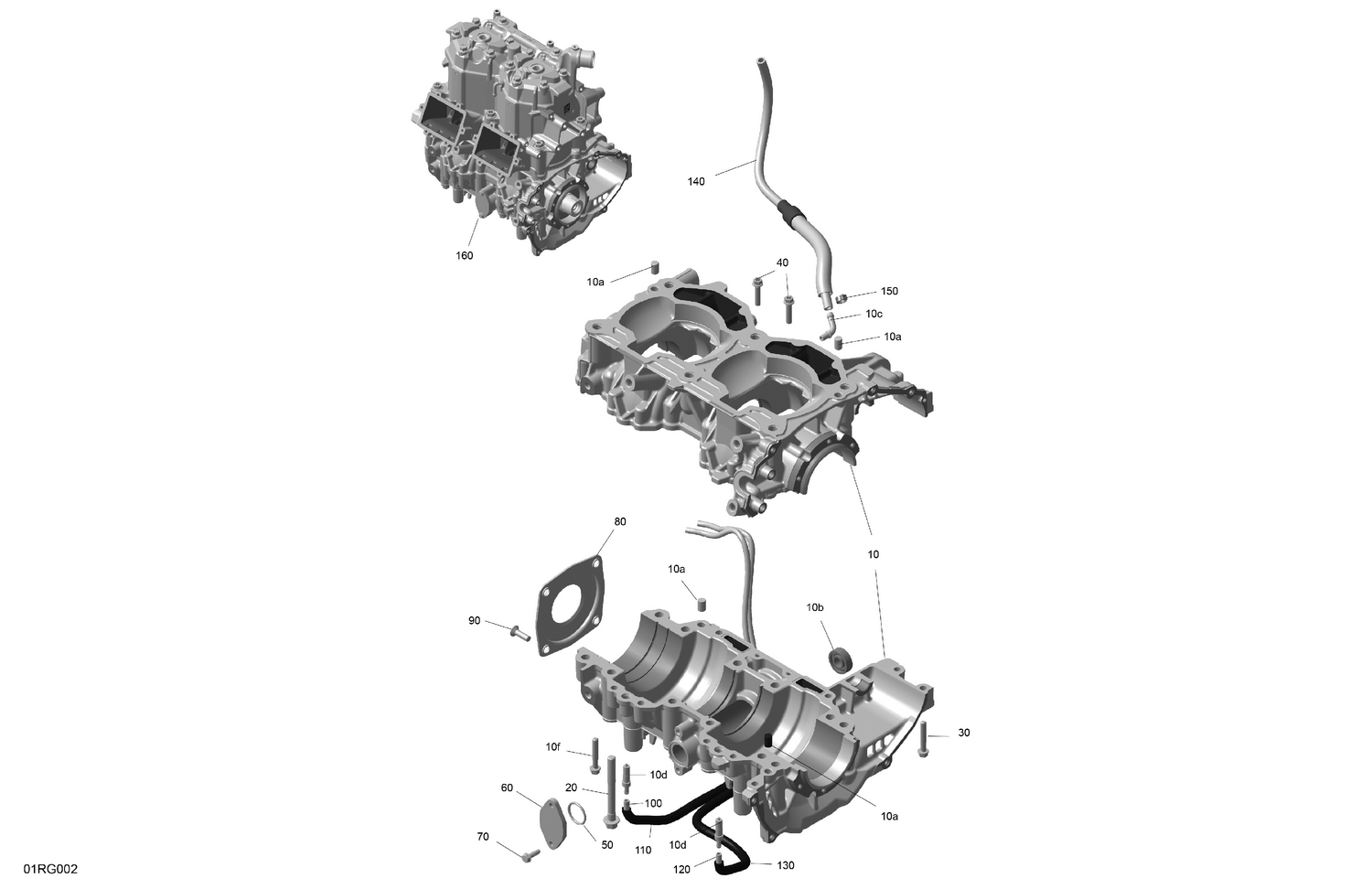

01- ROTAX - Crankcase
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 420632014 | Center Pin 8 X 12 |
| 10b | 420232100 | Ball Bearing |
| 10c | 420924529 | Impulse Fitting |
| 10d | 420956071 | Check Valve |
| 10f | 420640433 | Collar Hex Screw M8 X 45 |
| 20 | 420640833 | Collar Hex Screw M8 X 75 |
| 30 | 420440274 | Torx Flange Screw M6 X 35 |
| 40 | 420440234 | Torx Flange Screw M6 X 25 |
| 50 | 420430373 | O-Ring |
| 60 | 420810827 | Cover Plate |
| 70 | 420941926 | Taptite Screw M5 X 16 |
| 80 | 420812422 | Oil Seal Cover |
| 90 | 420941436 | Screw M6 X 20 |
| 100 | 420201928 | Oil Line 585 mm |
| 110 | 420460042 | Tube 390MM |
| 120 | 420201928 | Oil Line 585 mm |
| 130 | 420460058 | Tube 465MM |
| 140 | 420201599 | Oil Line / Protective Hose Ass'y |
| 150 | 420853653 | Clamp |
