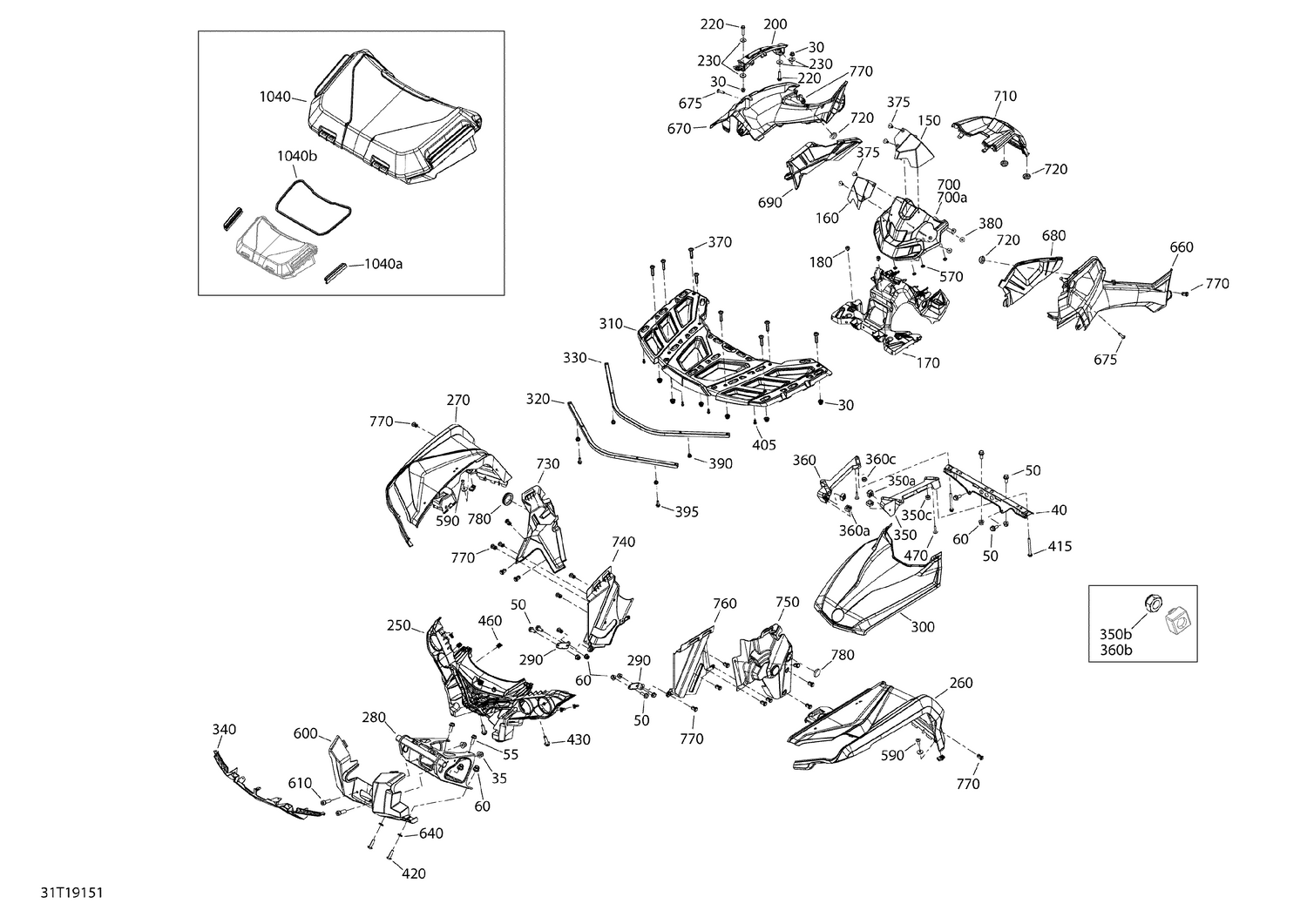

| Ref | Part Number | Description |
|---|
| 30 |
233261434 |
Flange Elastic Nut M6 |
| 35 |
233201434 |
Hex. Flange Elastic Nut M10 |
| 40 |
705006812 |
Cargo Rack Center Support |
| 50 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 55 |
207582544 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 60 |
233281434 |
Hex. Flange Elastic Nut M8 |
| 160 |
705006135 |
RH Air Deflector |
| 170 |
715006101 |
Console Support Ass'y |
| 180 |
293830005 |
Rubber Bumper |
| 200 |
715004085 |
Indicator |
| 220 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip |
| 230 |
224061201 |
Flat Washer |
| 250 |
705012822 |
Fascia |
| 260 |
715006061 |
Squadron Green, LH Front Fender Kit |
| 270 |
715004630 |
Squadron Green, RH Front Fender Kit |
| 280 |
705016893 |
Front Bumper Support This part replaces 705009253. |
| 290 |
705004565 |
Lower Fender Support |
| 300 |
715006096 |
Squadron Green, Hood Kit |
| 310 |
715002784 |
Rack Kit |
| 320 |
705016640 |
Sectional Bent Tube This part replaces 705005469. |
| 330 |
705016092 |
Bent Sectional Tube This part replaces 705005470. |
| 340 |
705004523 |
Lugage Rack Moulding |
| 350b |
232581200 |
Hex. Elastic Nut M8 Brass |
| 350c |
232561600 |
Hex. Elastic Stop Nut M6 |
| 360b |
232581200 |
Hex. Elastic Nut M8 Brass |
| 360c |
232561600 |
Hex. Elastic Stop Nut M6 |
| 370 |
250000646 |
Black, Torx Screw M6 X 35 |
| 375 |
293150104 |
Pop Rivet 3/16" |
| 380 |
517124300 |
Washer |
| 390 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 395 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 405 |
241140060 |
Screw K40 X 10 |
| 415 |
207567044 |
Hex. Flange Screw M6x70, Scotch Grip |
| 420 |
250000886 |
Torx Screw M8 X 30 |
| 430 |
207683534 |
Hex. Flange Screw M8 X 35 |
| 460 |
517302785 |
Edge Clip |
| 470 |
250000101 |
Plastite Screw Type K-40, M4 X 25 |
| 570 |
732610072 |
Push Nut |
| 590 |
250000722 |
Torx Screw M6 X 20 |
| 600 |
705006299 |
Front Guard Plate |
| 610 |
205003044 |
Socket Screw M10 x 30 |
| 640 |
705004497 |
Ring |
| 660 |
705009760 |
Squadron Green, LH Lateral Panel |
| 670 |
705009764 |
Squadron Green, RH Lateral Panel |
| 675 |
250000723 |
Phillips Screw K40 X 16 |
| 680 |
715007008 |
Deflector_Body Panel Kit This part replaces 705004147. |
| 690 |
705003444 |
Engine Cover |
| 700a |
705006321 |
Gauge Support |
| 710 |
715002783 |
Dash Kit |
| 720 |
705003264 |
Grommet |
| 730 |
705011462 |
RH Rear Inner Fender |
| 740 |
705011463 |
RH Front Inner Fender |
| 750 |
705013111 |
LH Rear Inner Fender |
| 760 |
705017001 |
LH Front Wheel Arch Protector This part replaces 705011465. |
| 770 |
293150230 |
Tuflok Plastic Rivet |
| 780 |
293250242 |
Rubber Cover |
