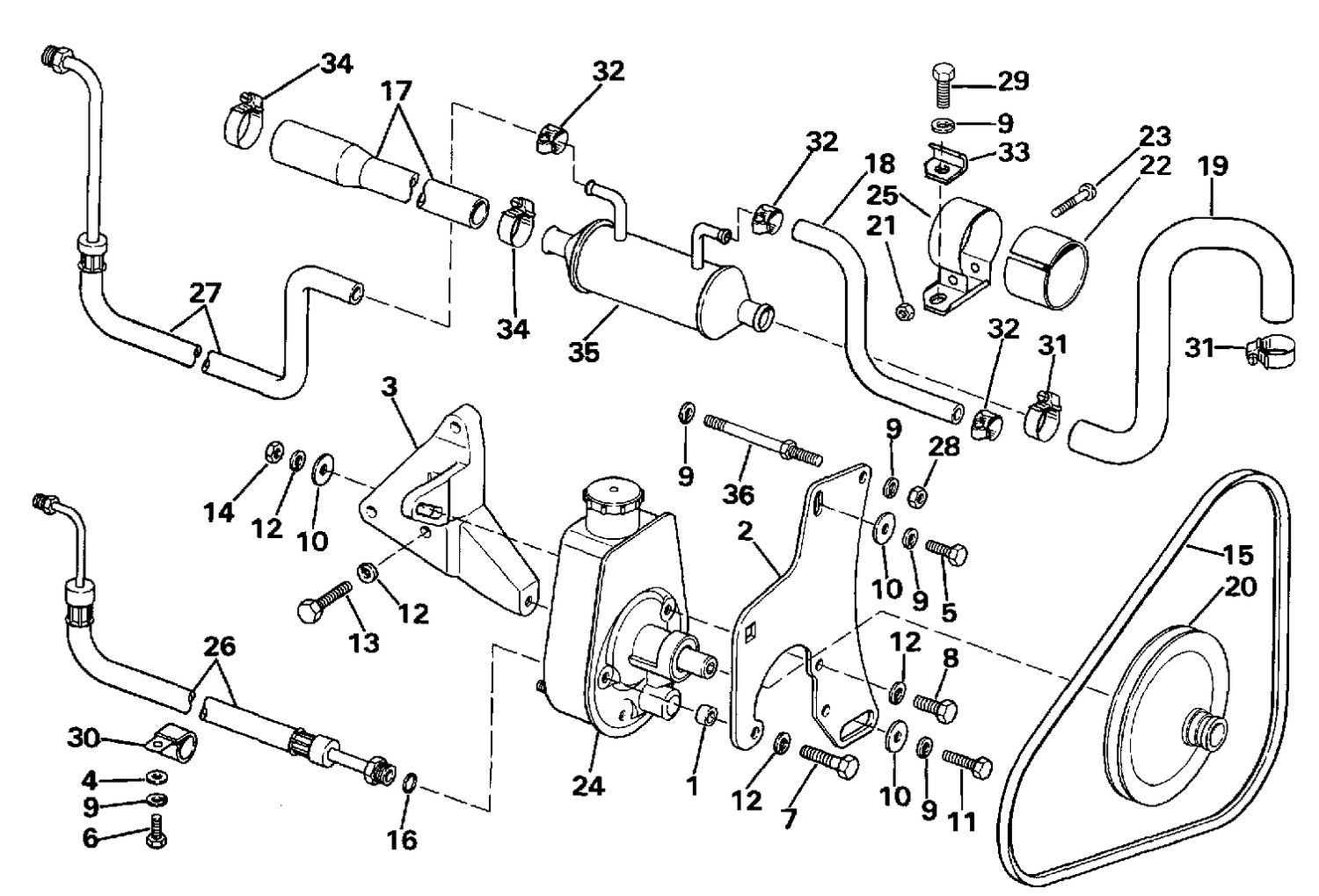

| Ref | Part Number | Description |
|---|
| 1 |
3850908 |
SPACER, Stud This part replaces 0912824. |
| 2 |
0912826 |
BRACKET, Steering pump, front |
| 3 |
0912827 |
BRACKET, Steering pump, rear |
| 5 |
0306414 |
SCREW |
| 6 |
0306834 |
BOLT, Throttle lever retainer |
| 7 |
0910322 |
SCREW, Brace to pump |
| 8 |
0910324 |
SCREW |
| 9 |
0120177 |
L'WASHER, Alternator to brkt |
| 10 |
0312972 |
WASHER, Alternator brkt |
| 11 |
0306414 |
SCREW |
| 12 |
3852496 |
LOCK WASHER, Bracket to pump This part replaces 0910320. |
| 13 |
0912524 |
SCREW, Adaptor to engine, upper |
| 14 |
3852498 |
NUT, Pump to bracket, rear This part replaces 0910323. |
| 15 |
0912509 |
BELT, Alternator |
| 16 |
3852497 |
O-RING, Pressure hose This part replaces 0910321. |
| 17 |
0912513 |
HOSE, Gimbal to oil cooler |
| 18 |
0912521 |
HOSE, Cooler to pump |
| 19 |
0913280 |
HOSE, Cooler to therm. hsg. |
| 20 |
3853804 |
PULLEY, Steering pump This part replaces 0983839. |
| 22 |
3853236 |
SLEEVE, Ignition coil This part replaces 0914455. |
| 24 |
3850491 |
Pump Ay This part replaces 0983791. |
| 25 |
3852218 |
BRACKET, Oil cooler This part replaces 0383448. |
| 26 |
0984639 |
CHOSE, Pump to valve, pressure |
| 27 |
0984640 |
HOSE, Valve to oil cooler, return |
| 29 |
0306414 |
SCREW |
| 30 |
3852434 |
CLAMP, Engine cable This part replaces 0908191. |
| 31 |
0979803 |
CLAMP |
| 32 |
0986355 |
CLAMP, Hose |
| 33 |
0913392 |
SUPPORT, Clamp to brace |
| 34 |
0912627 |
CLAMP |
| 35 |
0985840 |
OIL COOLER |
