Home / BRP / Can-Am ATV / 2006 / Outlander / Outlander MAX 800 XT 4 X 4, 2006 / 10- Electrical System XT

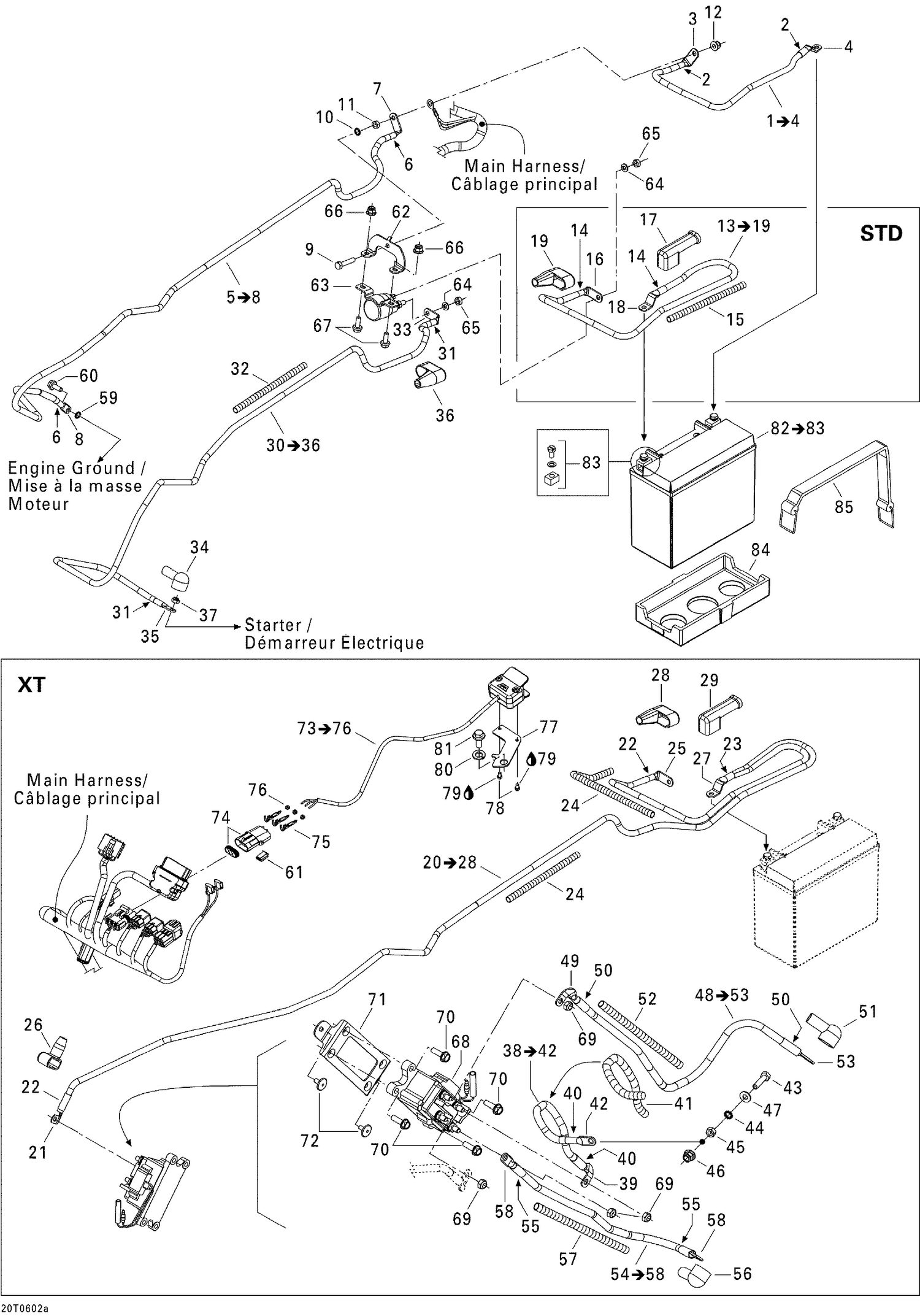

10- Electrical System XT

10- Electrical System XT

Parts (34)

RefPart NumberDescription
2 219704447 Was 710000483 Heat Shrink Tubing
3 710000508 Open Barrel
4 710000518 Open Barrel
6 219704447 Was 710000483 Heat Shrink Tubing
7 710000508 Open Barrel
8 710000530 Open Barrel
9 207162544 Hex. Screw M6 X 25
10 234461608 External Serrated Lock Washer 6 mm
11 232061414 Hex. Nut M6
12 233061414 Hex. Flange Nut M6
13 XXX Not Available As Spare Parts
14 XXX Not Available As Spare Parts
15 XXX Not Available As Spare Parts
16 XXX Not Available As Spare Parts
17 XXX Not Available As Spare Parts
18 XXX Not Available As Spare Parts
19 XXX Not Available As Spare Parts
31 219704447 Was 710000483 Heat Shrink Tubing
32 710000497 PROTECTOR TUBE, 9 MM - Call your local BRP dealership
33 710000508 Open Barrel
34 710000526 Protector Cap
35 710000530 Open Barrel
36 710001817 Protector Cap This part replaces 710000902.
37 232561414 Elastic Stop Nut M6
59 234461608 External Serrated Lock Washer 6 mm
60 207561644 Hex. Flange Screw M6 X 16, Scotch Grip
62 710001260 SOLENOID SUPPORT - Call your local BRP dealership This part replaces 705201325.
63 515176011 Starter Relay
64 234161601 Lock Washer Helical M6
65 232061600 Hex. Nut M6
66 233061414 Hex. Flange Nut M6
67 207661244 Hex. Flange Screw M6 X 12
83 250000282 Battery Bolt Kit This part replaces 295500849.
84 710000279 INSULATOR PAD - Call your local BRP dealership
