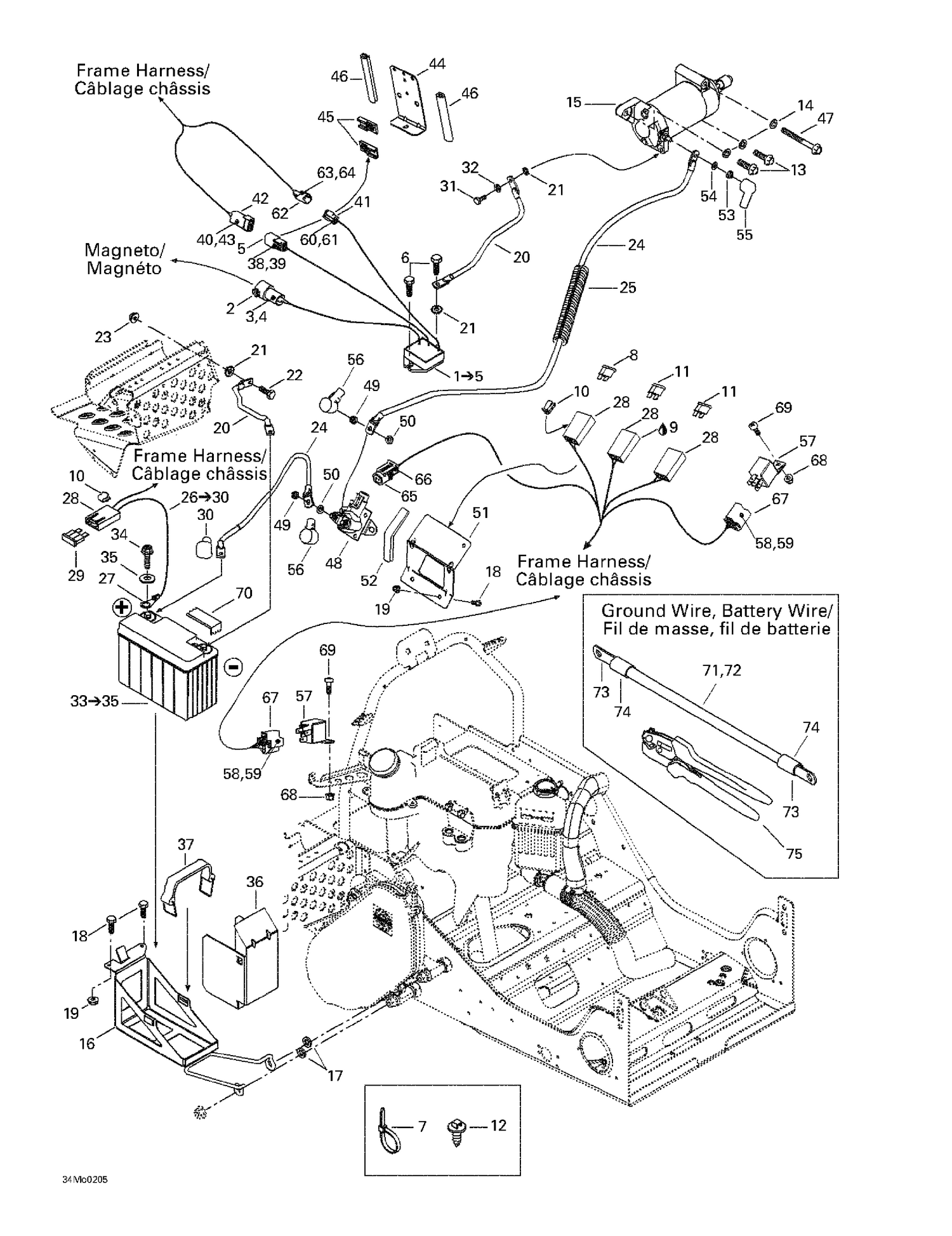

10- Battery And Starter

10- Battery And Starter

Parts (78)

RefPart NumberDescription
2 409207900 MALE HOUSING - Call your local BRP dealership
3 409011100 MALE TERMINAL - Call your local BRP dealership
4 409208500 SEAL - Call your local BRP dealership
5 278001674 Mâle Terminal Housing, 2 Circuits
6 210261650 Hex. Flange Screw M6 X 16 This part replaces 210261680.
7 293750001 Tie Wrap 94 mm
8 278000344 Fuse, 5 Amperes
9 219704453 Was 293550004 Dielectric Grease, 150 g
10 409014200 CLIP - Call your local BRP dealership
11 409003900 Fuse, 20 Amperes
12 293730040 Mount Dart This part replaces 293730018.
13 207583044 Hex. Flange Screw M8 X 30, Scotch Grip
14 250200008 Flat Washer With Teflon 8 mm
15 515176133 Electric Starter Ass'y This part replaces 515175562.
16 515175625 Battery Support
17 503175800 Washer
18 207151444 Hex. Screw M5 X 14
19 233251434 Flange Elastic Nut M5 This part replaces 233251414.
20 Not Available As Spare Part - Ground Wire
21 250200041 Lock Washer Serrated M6 This part replaces 250200000.
22 207161644 Hex. Screw M6 X 16
23 233261414 Hex. Flange Elastic Nut M6 x 1.0
24 Not Available As Spare Part - Battery Wire
25 219704399 Was 409901700 Tubing (9 mm)
27 278001392 Open Barrel Terminal This part replaces 409012600.
28 409004000 Fuse Holder
29 410917200 Fuse, 30 Amperes
30 570151000 Protection Cap
31 207361644 Hex. Screw M6 X 16, Scotch Grip
32 234181401 Lock Washer 8 mm
34 207151260 HEX. SCREW M6 X 12 - Call your local BRP dealership
35 234061410 Flat Washer 6 mm
36 515175643 DEFLECTOR - Call your local BRP dealership
37 515176044 Battery Strap This part replaces 515175475.
38 278001672 Male Lock, 2 Circuits
39 515175568 Male Terminal
40 278001671 Female Lock, 2 Circuits
41 515175670 Female Terminal Housing, 2 Circuits
42 278001673 Female Terminal Housing, 2 Circuits
43 515175567 Female Terminal
44 515175738 Housing Support
45 270000141 Clip
46 219704353 Was 271000110 Protection Trim
47 207587544 Hex. Flange Screw M8 X 75, Scotch Grip
48 278003012 Starter Relay This part replaces 278001641.
49 232561414 Elastic Stop Nut M6
50 234061410 Flat Washer 6 mm
51 515175695 Fuse Holder
52 219704353 Was 271000110 Protection Trim
53 232561414 Elastic Stop Nut M6
54 234061410 Flat Washer 6 mm
55 278000020 PROTECTION CAP - Call your local BRP dealership
56 570064200 PROTECTION CAP - Call your local BRP dealership
57 710010053 Relay This part replaces 410113200.
58 561503100 FEMALE TERMINAL - Call your local BRP dealership This part replaces 409205300.
59 561503100 FEMALE TERMINAL - Call your local BRP dealership This part replaces 409203300.
60 515175675 Female Lock, 2 Circuits
61 278000632 Female Terminal
62 515175665 Male Terminal Housing, 2 Circuits
63 278000631 Male Terminal
64 409207500 Male Lock, 2 Circuits
65 278001113 Male Connector, 2 Circuits
66 278001114 Female Terminal
67 409209900 Female Housing, 5 Circuits
68 233251434 Flange Elastic Nut M5 This part replaces 233251414.
69 208651241 PHILLIPS SCREW M5 X 12 - Call your local BRP dealership
70 293740005 Tape
71 278001680 Ground Cable Battery, no 6, meter)
72 278001690 Cable Battery, no 6, meter)
73 278001682 Terminal 45°, Small Hole
74 219704447 Was 710000483 Heat Shrink Tubing
278001681 Câble De Masse, N° 4, Mètre 278001681
278001681 Ground Cable Battery, No. 4, Meter 278001681
278001685 FLAT TERMINAL, BIG HOLE - Call your local BRP dealership 278001685
278001685 Terminal Plate, Gros Trou - Appelez votre concessionnaire BRP local 278001685
278001688 FLAT TERMINAL - Call your local BRP dealership 278001688
278001688 Terminal Plat - Appelez votre concessionnaire BRP local 278001688
293750008 Tie Wrap 368 mm 293750008
