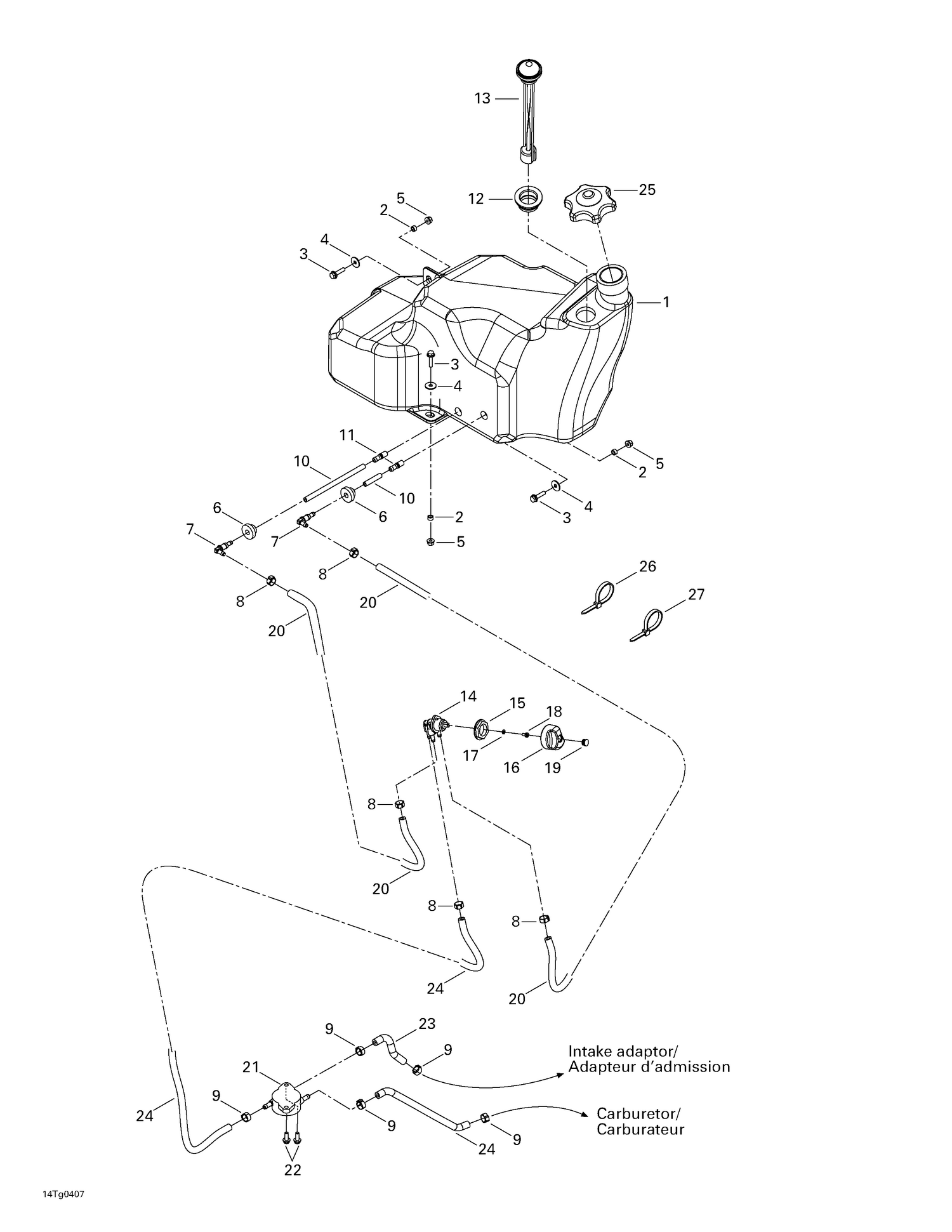

02- Fuel Tank
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 709000062 | FUEL TANK - Call your local BRP dealership |
| 2 | 293900104 | Bushing This part replaces 293900029. |
| 3 | 207662544 | Hex. Flange Screw M6 X 25 |
| 4 | 250200082 | Flat Washer This part replaces 391302000. |
| 5 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 6 | 570045500 | Grommet |
| 7 | 414580600 | Elbow Male Connector |
| 8 | 293650042 | Oetiker Clamp |
| 9 | 414415200 | Spring Clamp |
| 10 | 219704410 | Polyurethane Hose 10000Mm Long |
| 11 | 414865700 | Fuel Filter |
| 12 | 293720058 | Grommet |
| 13 | 709000083 | FUEL GAUGE - Call your local BRP dealership |
| 14 | 275500098 | Fuel Valve |
| 15 | 212100009 | HEX. PLASTIC NUT - Call your local BRP dealership |
| 16 | 275500263 | FUEL VALVE KNOB, BLACK - Call your local BRP dealership |
| 17 | 234040600 | Flat Washer 4 mm |
| 18 | 208640860 | PHILLIPS SCREW M4 X 8 - Call your local BRP dealership |
| 19 | 275500241 | Black, Cap |
| 20 | 219704549 | Hose This part replaces 219704439. |
| 21 | 707200183 | Fuel Pump |
| 22 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 23 | 709000063 | PULSATION HOSE - Call your local BRP dealership |
| 24 | 219704549 | Hose This part replaces 219704439. |
| 25 | 709000059 | FUEL CAP - Call your local BRP dealership |
| 26 | 414115200 | Tie-Rap 180 mm |
