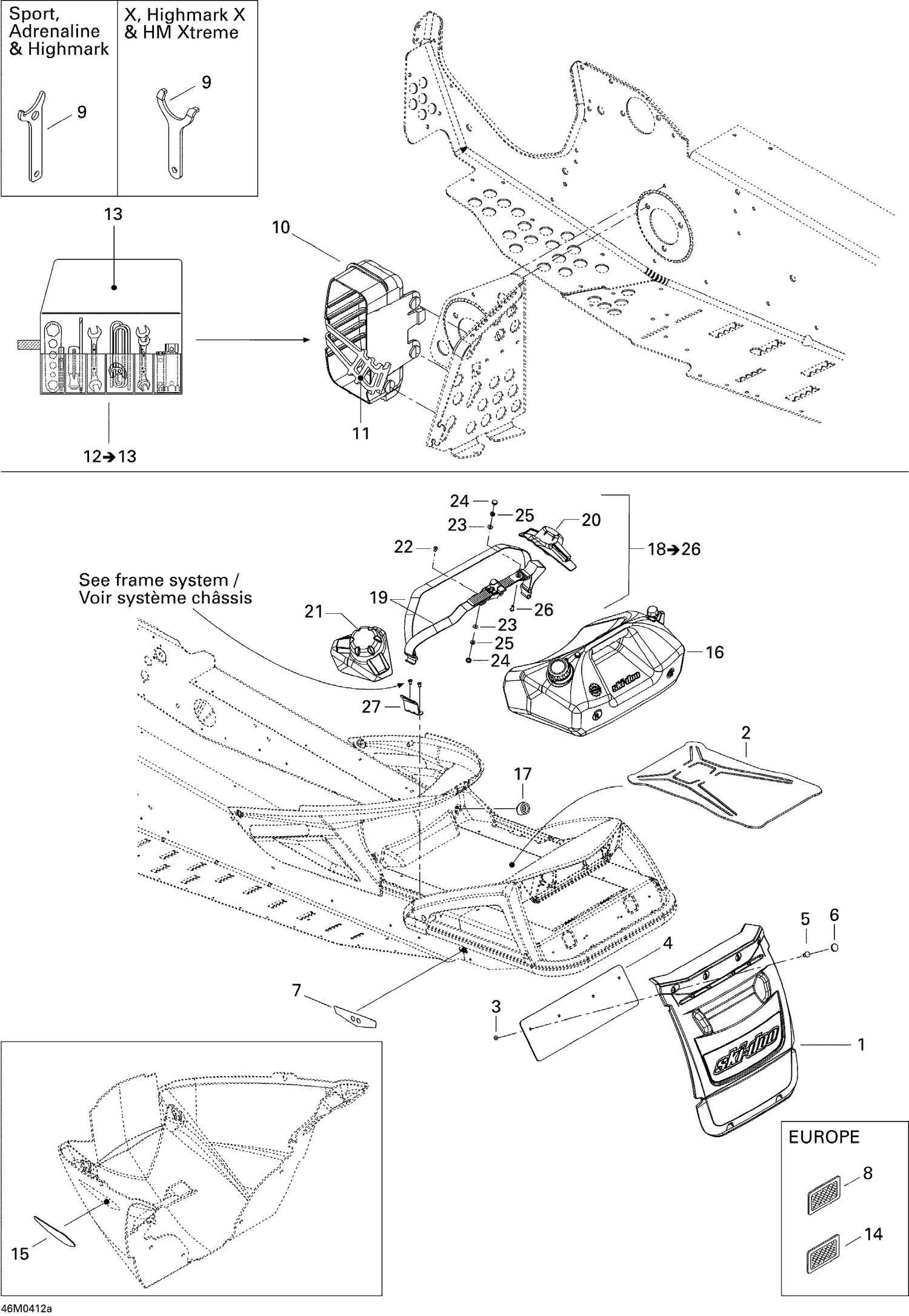

09- Utilities 1
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 517225900 | Flat Washer |
| 4 | 520000453 | SNOW GUARD REINFORCEMENT - Call your local BRP dealership |
| 5 | 293150087 | Pop Rivet 3/16” This part replaces 293150087. |
| 6 | 277000203 | Black, Cap |
| 10 | 520000322 | TRUNK - Call your local BRP dealership |
| 11 | 570069700 | LATCH - Call your local BRP dealership |
| 13 | 520000047 | Tool Bag |
| 15 | 516001336 | FRONT REFLECTOR - Call your local BRP dealership |
| 19 | 520000386 | Strap |
| 20 | 520000438 | VENT CAP - Call your local BRP dealership |
| 21 | 520000439 | Filler Neck Cap |
| 22 | 293150102 | Rivet 3/16" |
| 23 | 517225900 | Flat Washer |
| 24 | 414436900 | BLACK SNAP CAP - Call your local BRP dealership |
| 25 | 414436800 | RETAINER CAP - Call your local BRP dealership |
| 26 | 390402300 | Pop Rivet 3/16" |
