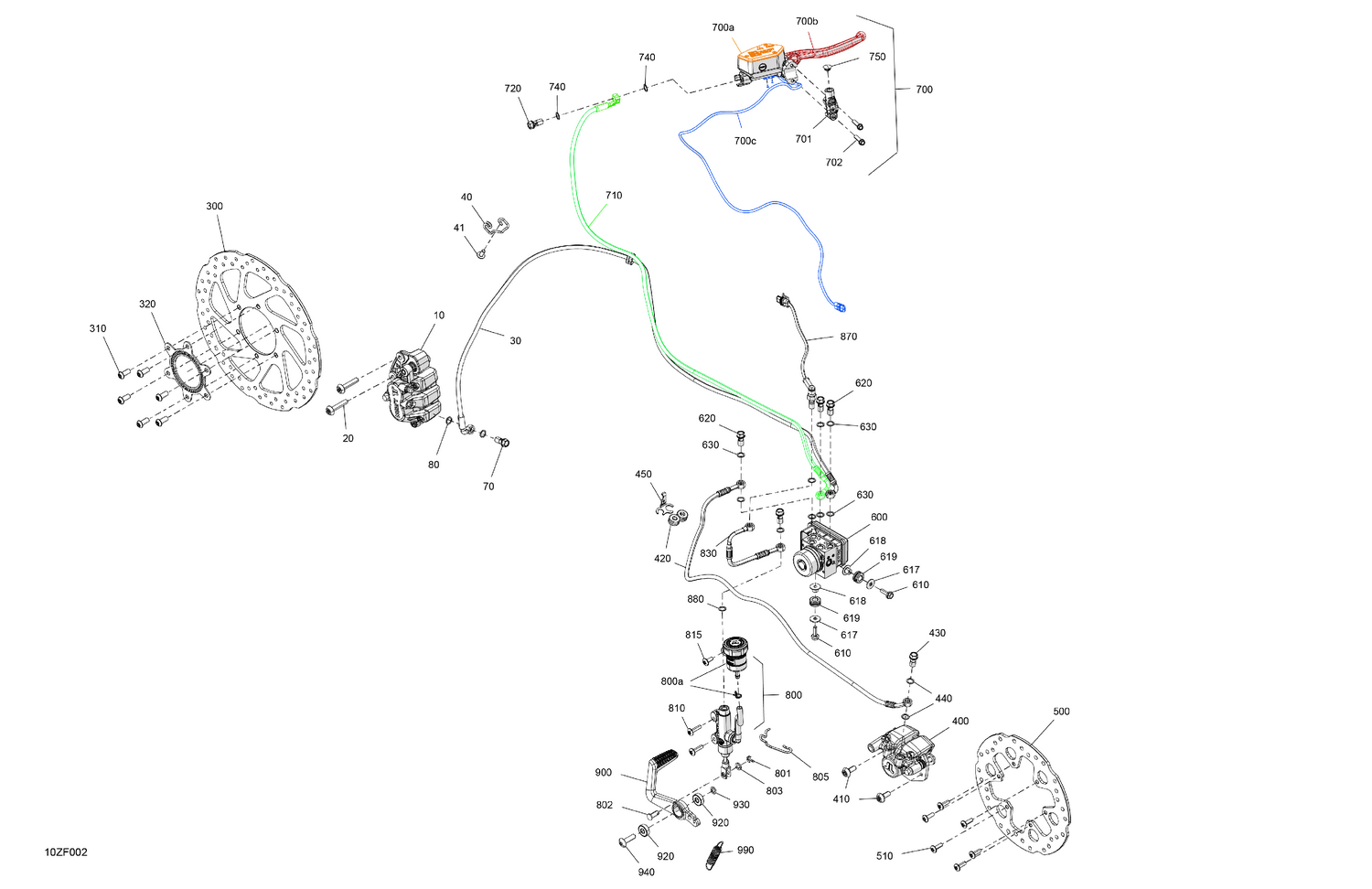

03- Mechanic - Brake — Parts Catalog

Ref	Part Number	Description
20	250001310	Torx Screw Truss Head S.Grip M8 X 4
30	705602076	Front Caliper Hose
40	705602283	Fairlead
41	250000789	Torx Truss M6X14
70	705602311	Black, Banjo Bolt
80	414920600	Washer
300	705602372	Front Brake Disc
310	250001305	Torx Screw S.Grip M8 X 20
320	705601903	Front Wheel Sensor
410	250001346	Torx Screw Truss Head S.Grip M8 X 2
420	705601883	Rear Caliper Hose
430	705602311	Black, Banjo Bolt
440	414920600	Washer
450	712000150	Bracket
500	705601882	Rear Disc Brake
510	250001257	Screw Torx M6 X 20
600	219800551	ABS Brake Control Module Wet
610	207662054	Hex. Flange Screw M6 X 20
617	250200082	Flat Washer
618	709001288	Bushing
619	293720132	Insulating Pad
620	705602311	Black, Banjo Bolt
630	414920600	Washer
700a	219800560	Cover Kit
700b	219800593	Lever Kit
700c	219800608	Switch Kit
701	705602279	Clamp
702	705602294	Hex. Flange Screw Din.6921
710	705602265	Front Master Cylinder Hose
720	705602311	Black, Banjo Bolt
740	414920600	Washer
750	293730060	Black, Dart 10 mm
800a	219800562	Reservoir Kit
801	705602280	Cotter Pin
802	705602281	Clevis Pin
803	250200111	Washer
805	705602320	Fairlead
810	250001000	Torx-Truss M/S M6 X 25
815	250000755	Torx Screw M6 X 16
830	705601894	Rear Master Cylinder Hose
870	705601924	Brake Switch
880	414920600	Washer
900	705602089	Deep Black, Brake Pedal
920	293350149	Bearing
930	250200111	Washer
940	250000745	Hex Torx Truss M8 X30
