| Ref | Part Number | Description |
|---|
| 8 |
0313117 |
SCR,Clamp,eng cable |
| 9 |
0310441 |
CLAMP, CPS lead |
| 10 |
0328695 |
CLAMP, Engine cable This part replaces 0323480. |
| 11 |
0307267 |
SCREW |
| 12 |
5005440 |
THERMOSTAT This part replaces 0393659. |
| 13 |
0310058 |
GASKET, Thermostat |
| 14 |
0316132 |
GORMMET, Valve |
| 15 |
0335493 |
VALVE, Pressure relief |
| 16 |
0315626 |
SPRING, Valve |
| 17 |
0315538 |
GASKET, Cover to head |
| 18 |
0322898 |
COVER, Cylinder head |
| 19 |
0323359 |
SCREW, Head cover |
| 20 |
0432424 |
SPARK PLUG , QL16V |
| 20 |
0502894 |
SPARK PLUG, Champion, L16V This part replaces 0433627. |
| 21 |
0376349 |
FIL, masse |
| 22 |
0330151 |
CLAMP, Harness to oil tank boss |
| 24 |
0310441 |
CLAMP, CPS lead |
| 24 |
0330151 |
CLAMP, Harness to oil tank boss |
| 25 |
0314515 |
SCREW |
| 26 |
0325211 |
GASKET |
| 27 |
0437506 |
COVER & PLUG Assy, Water passage This part replaces 0433561. |
| 28 |
0302288 |
BOLT |
| 34 |
0306012 |
BOW WASHER |
| 39 |
0316355 |
BUT, Carburetor mounting This part replaces 0315204. |
| 40 |
0314098 |
WASHER, Throttle lever |
| 41 |
0320971 |
LEVER, Spark advance |
| 42 |
0314003 |
BSHING, Spark lever |
| 43 |
0314094 |
LINK, Throttle lever to cam |
| 44 |
0389123 |
LEVER THROTTLE CONTROL |
| 45 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 48 |
0398134 |
THROTTLE CAM |
| 51 |
0306337 |
SCREW, Adjustment |
| 58 |
0316101 |
SCREW, Advance |
| 59 |
0320536 |
STOP, Idle adjsutment |
| 60 |
0312316 |
CAPSCREW, Mounting brkt |
| 61 |
0395448 |
BALL & SOCKET ASSY |
| 62 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 63 |
0335359 |
GASKET, Cylinder head |
| 64 |
0325603 |
CYLINDER HEAD |
| 65 |
0312708 |
BUSHING |
| 66 |
0329890 |
CLIP,Throttle shaft |
| 67 |
0314099 |
RONDELLE, vis, pignon de distribution |
| 70 |
0314416 |
BUMBER, Advance screw |
| 71 |
0397018 |
YOKE & THUMBWHEEL |
| 73 |
0332142 |
LINK, Lever to cam |
| 77 |
0315081 |
BAGUE, arbre de commande de sens de marche vers bloc-cylindres |
| 78 |
0584592 |
SWITCH, Temperature This part replaces 0583441. |
| 81 |
0396832 |
SHIFT LEVER |
| 85 |
0396831 |
LEVER SHIFT ROD |
| 87 |
0320302 |
BUSHING, Laink to lever |
| 92 |
0326023 |
LIFT BRACKET |
| 93 |
0314002 |
BUSHING |
| 95 |
0327721 |
HOSE, Elbow to tee |
| 97 |
0318660 |
BUMPER, Screw, throttle stop |
| 98 |
0331329 |
BRACKET, Idle speed |
| 100 |
0328699 |
LEVER, Spark control |
| 110 |
0331765 |
BUSHING & ROD KEEPER |
| 111 |
0202026 |
LOCK WASHER, Stud |
| 112 |
0328734 |
BOW WASHER |
| 114 |
0330151 |
CLAMP, Harness to oil tank boss |
| 0396913 |
0396913 |

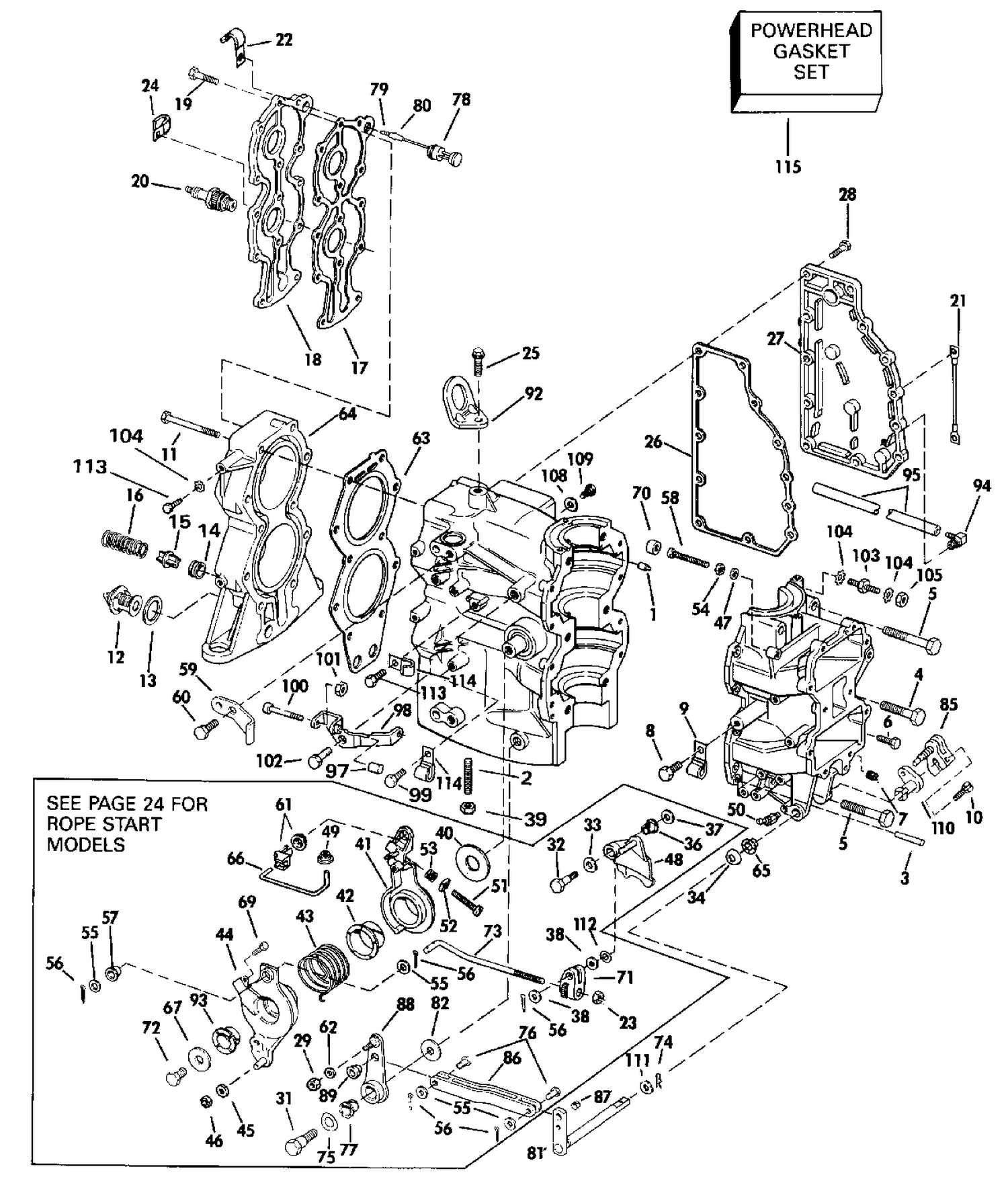

CYLINDER & C'CASE ASSY. |
