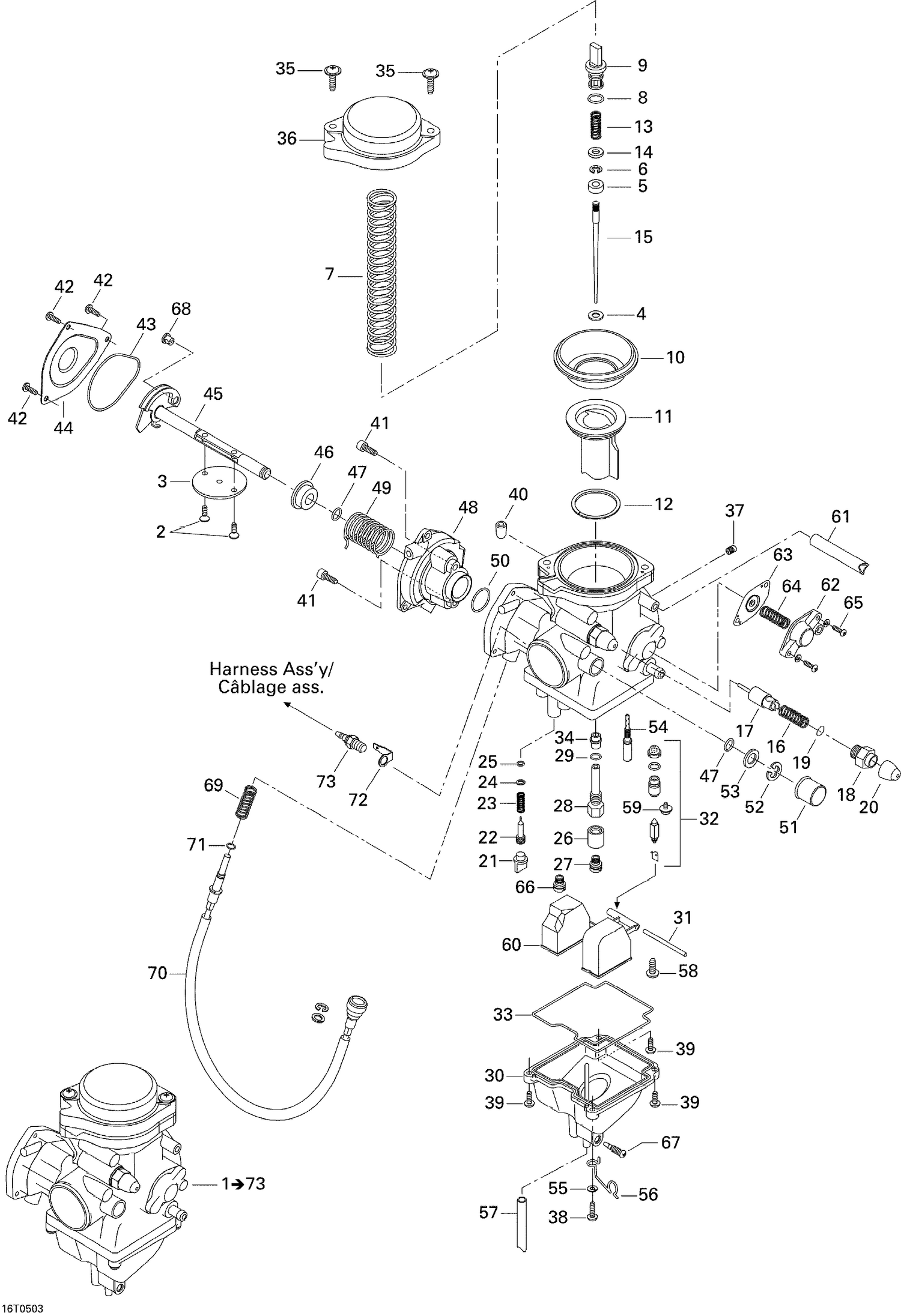

| Ref | Part Number | Description |
|---|
| 2 |
Not |
Available As Spare Part - Screw |
| 3 |
Not |
Available As Spare Part - Throttle Valve |
| 4 |
707200064 |
WASHER - Call your local BRP dealership |
| 5 |
707200065 |
RING - Call your local BRP dealership |
| 6 |
404152200 |
E-Ring |
| 7 |
707200066 |
Spring |
| 8 |
270500144 |
O-RING - Call your local BRP dealership |
| 9 |
707200067 |
HOLDER - Call your local BRP dealership |
| 10 |
707200068 |
DIAPHRAGM - Call your local BRP dealership |
| 11 |
707200069 |
Piston Valve |
| 12 |
707200070 |
Ring |
| 13 |
707200071 |
SPRING - Call your local BRP dealership |
| 14 |
707200072 |
WASHER - Call your local BRP dealership |
| 15 |
707200167 |
Needle J8-5Fiy03-52 |
| 16 |
707200144 |
SPRING - Call your local BRP dealership |
| 17 |
707200170 |
Plunger Ass'y |
| 18 |
707200009 |
Holder Guide |
| 19 |
404140200 |
O-Ring |
| 20 |
707200010 |
CAP - Call your local BRP dealership |
| 21 |
707200004 |
CAP - Call your local BRP dealership |
| 22 |
707200077 |
ADJUSTER - Call your local BRP dealership |
| 23 |
707200078 |
Spring |
| 24 |
707200018 |
WASHER - Call your local BRP dealership |
| 25 |
404139900 |
O-RING - Call your local BRP dealership |
| 26 |
707200079 |
RING - Call your local BRP dealership |
| 27 |
270500210 |
Main Jet 147.5 |
| 28 |
404162067 |
Jet Holder |
| 29 |
270500119 |
O-RING - Call your local BRP dealership |
| 30 |
707200081 |
Float Body Ass'y |
| 31 |
404123400 |
Pin |
| 32 |
707200082 |
Needle Valve 1.0 |
| 33 |
707200083 |
O-Ring |
| 34 |
404162053 |
Needle Jet |
| 35 |
707200085 |
SCREW - Call your local BRP dealership |
| 36 |
707200086 |
DIAPHRAGM COVER - Call your local BRP dealership |
| 37 |
707200087 |
Pilot Jet 60.0 |
| 38 |
404138700 |
Screw |
| 39 |
707200089 |
SCREW - Call your local BRP dealership |
| 40 |
404154900 |
CAP - Call your local BRP dealership |
| 41 |
Not |
Available As Spare Part - Screw |
| 42 |
707200091 |
SCREW - Call your local BRP dealership |
| 43 |
707200092 |
O-RING - Call your local BRP dealership |
| 44 |
707200093 |
COVER - Call your local BRP dealership |
| 45 |
Not |
Available As Spare Part - Throttle Shaft |
| 46 |
Not |
Available As Spare Part - Ring |
| 47 |
Not |
Available As Spare Part - Sealing Ring |
| 48 |
Not |
Available As Spare Part - Case |
| 49 |
Not |
Available As Spare Part - Spring |
| 50 |
Not |
Available As Spare Part - O-Ring |
| 51 |
Not |
Available As Spare Part - Cap |
| 52 |
Not |
Available As Spare Part - E-Ring |
| 53 |
Not |
Available As Spare Part - Packing |
| 54 |
707200168 |
Pilot Jet 35.0 |
| 55 |
707200101 |
Washer |
| 56 |
707200102 |
Clip |
| 57 |
707200041 |
Hose |
| 58 |
404138600 |
SCREW - Call your local BRP dealership |
| 59 |
404161861 |
SCREW - Call your local BRP dealership |
| 60 |
707200103 |
FLOAT ASS?Y - Call your local BRP dealership |
| 61 |
707200104 |
Hose |
| 62 |
707200105 |
Cover Ass’y |
| 63 |
707200106 |
DIAPHRAGM ASS?Y - Call your local BRP dealership |
| 64 |
707200160 |
Richer Spring |
| 65 |
404901400 |
SCREW - Call your local BRP dealership |
| 66 |
707200152 |
Main Jet 50.0 |
| 67 |
707200024 |
SCREW - Call your local BRP dealership |
| 68 |
707200058 |
CABLE GUIDE - Call your local BRP dealership |
| 69 |
404101700 |
Spring |
| 70 |
707200146 |
ADJUSTER CABLE - Call your local BRP dealership |
| 71 |
707200141 |
WASHER - Call your local BRP dealership |
| 72 |
707200164 |
TERMINAL - Call your local BRP dealership |
