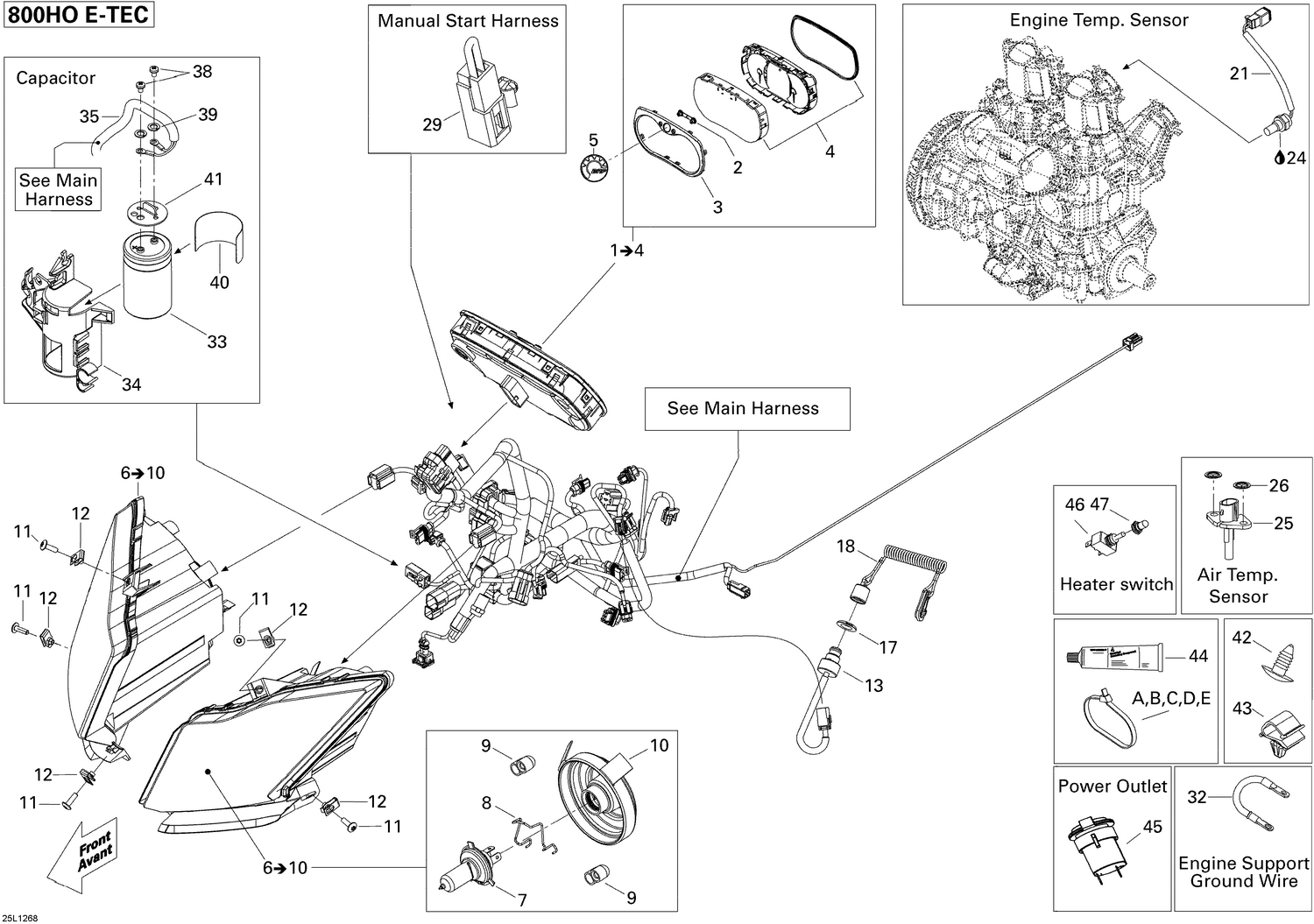

10- Electrical System
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| A | 414115200 | Tie-Rap 180 mm |
| B | 293750002 | Tie-Rap 142 mm |
| C | 293750008 | Tie-Rap 368 mm |
| D | 293750001 | Tie-Rap 94 mm |
| 2 | 415129355 | Speedometer Button |
| 3 | 415129348 | Gauge Ring |
| 4 | 415129349 | Lens |
| 5 | 516006224 | BRP Logo, 20MM x 2MM This part replaces 219902677. |
| 7 | 515176274 | Halogen Bulb, 60/55 W, 12 V |
| 8 | Not | Available As Spare Part - Bulb Holder |
| 9 | 515176498 | Cap |
| 10 | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 11 | 250000722 | Torx Truss Screw M6 x 20 This part replaces 250000128. |
| 12 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250100113. |
| 13 | 515177249 | DESS Switch |
| 17 | 278002963 | Safety Nut (DESS Switch) This part replaces 278000508. |
| 18 | 515178284 | Dess. This part replaces 515177057. |
| 21 | 420664509 | Temperature Senor This part replaces 515176398. |
| 24 | 293800018 | SEALANT LOCTITE 592 - Call your local BRP dealership |
| 25 | 515176366 | Air Temperature Sensor |
| 26 | 389804300 | Push Nut |
| 29 | 515176661 | MANUAL START HARNESS - Call your local BRP dealership |
| 32 | 515177289 | Engine ground wire This part replaces 515176861. |
| 33 | 515177272 | Capacitor This part replaces 515176349. |
| 34 | 515176607 | Capacitor Support |
| 35 | Not | Available As Spare Part - Capacitor Harness |
| 38 | 250000462 | Socket Head Screw M10 X 32 |
| 39 | 250200026 | Lock Washer |
| 40 | 516004570 | Capacitor Decal |
| 41 | 515177193 | Cap |
| 42 | 414644300 | Black, Dart |
| 43 | 515177066 | Clip |
| 44 | 293550004 | Dielectric Grease, 150 g |
| 45 | 710001248 | Outlet DC |
| 46 | 410107300 | Switch (Heating Grip) |
| 47 | 515175281 | Switch Cover |
