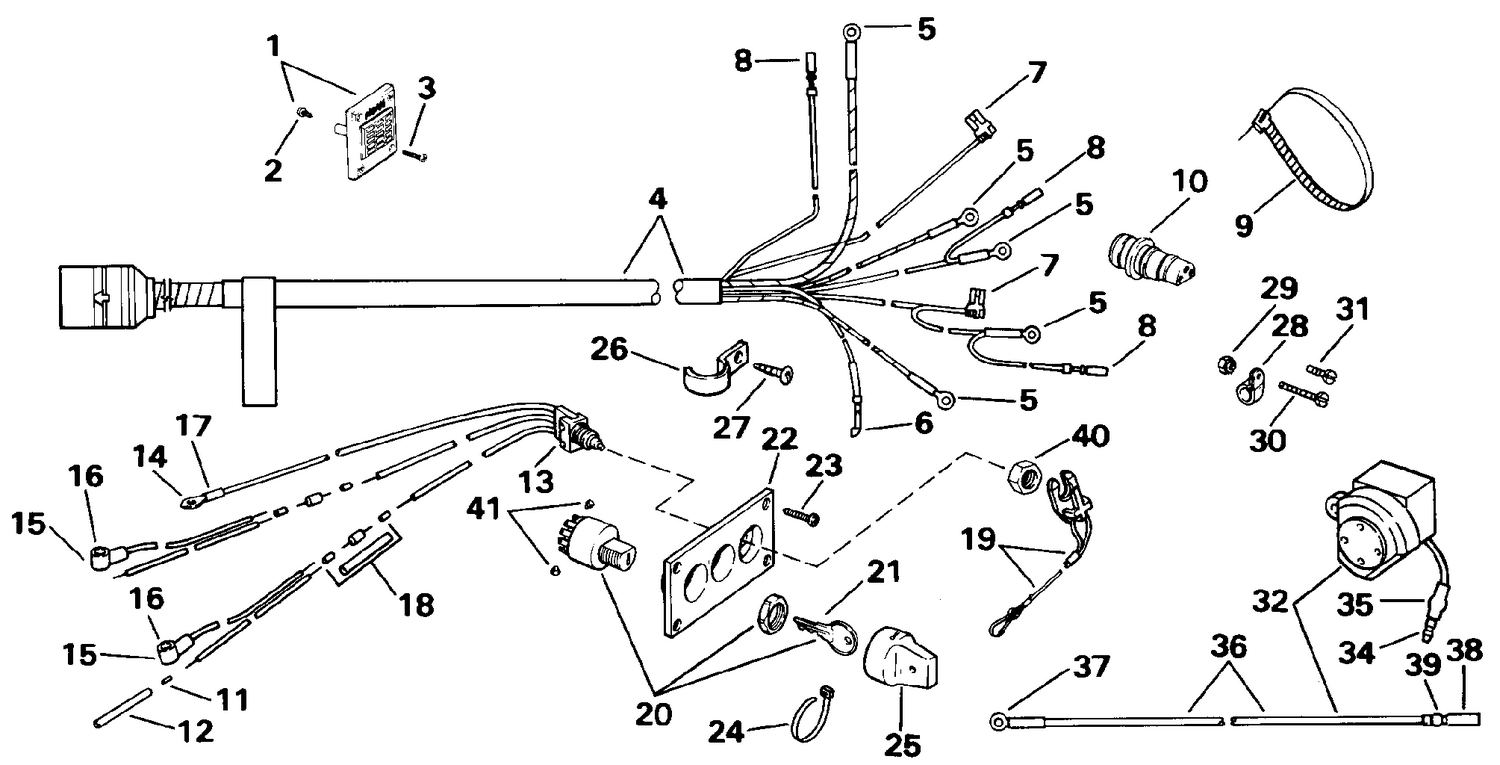

WIRING KIT - DUAL ENGINE
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0174970 | BEZEL KIT, Horn |
| 2 | 0124880 | SCREW, Bracket, timing pointer |
| 4 | 0174967 | INSTRUMENT CABLE ASSY., 28 ft |
| 9 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 13 | 0174744 | CUT OFF SWITCH & DIODE |
| 28 | 0316669 | CLAMP |
| 29 | 0308335 | CLAMP, Coil |
| 30 | 0307190 | SCR., Clamp, 10-24 x 1-1/4 |
| 32 | 0585992 | HORN This part replaces 0584212. |
| 36 | 0174964 | LEAD ASSEMBLY |
| 0174962 | 0174962 | WIRING KIT, Dual engine, 28 ft |
