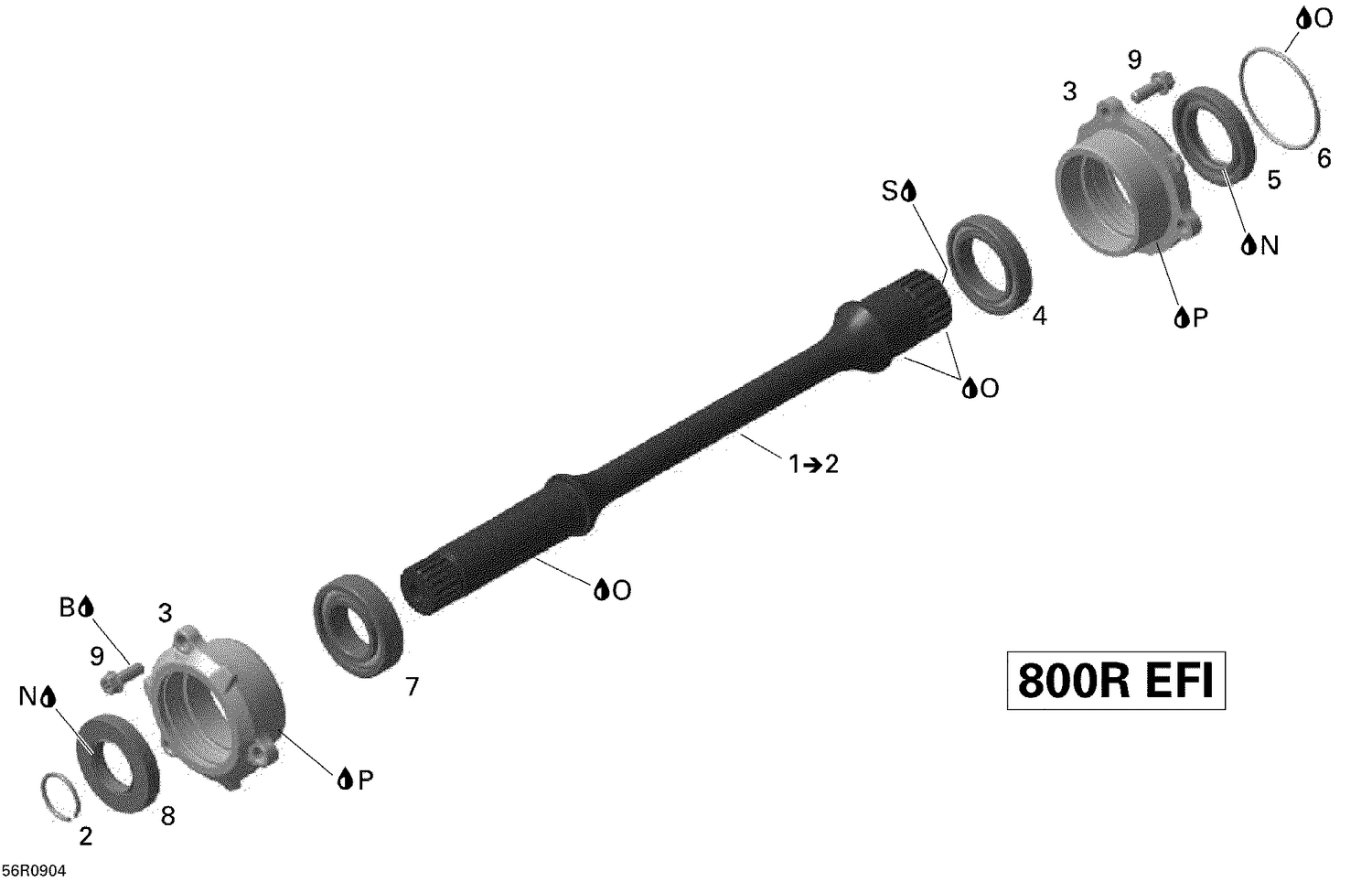

08- Drive Shaft
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10 ml |
| N | 293550030 | Grease, Super Lube |
| O | Not | Available As Spare Part - Engine Oil |
| P | 293800081 | Loctite 5910, 300 ml |
| 2 | 420245010 | Circlip |
| 3 | 420611223 | Bearing Cover This part replaces 420611221. |
| 4 | 420632275 | Ball Bearing |
| 5 | 420850055 | Oil Seal |
| 6 | 420230306 | O-Ring This part replaces 420230305. |
| 7 | 420232342 | Ball Bearing This part replaces 420232341. |
| 8 | 420430580 | Oil Seal This part replaces 420430589. |
| 9 | 420641048 | Torx Flange Screw M6 X 16 |
