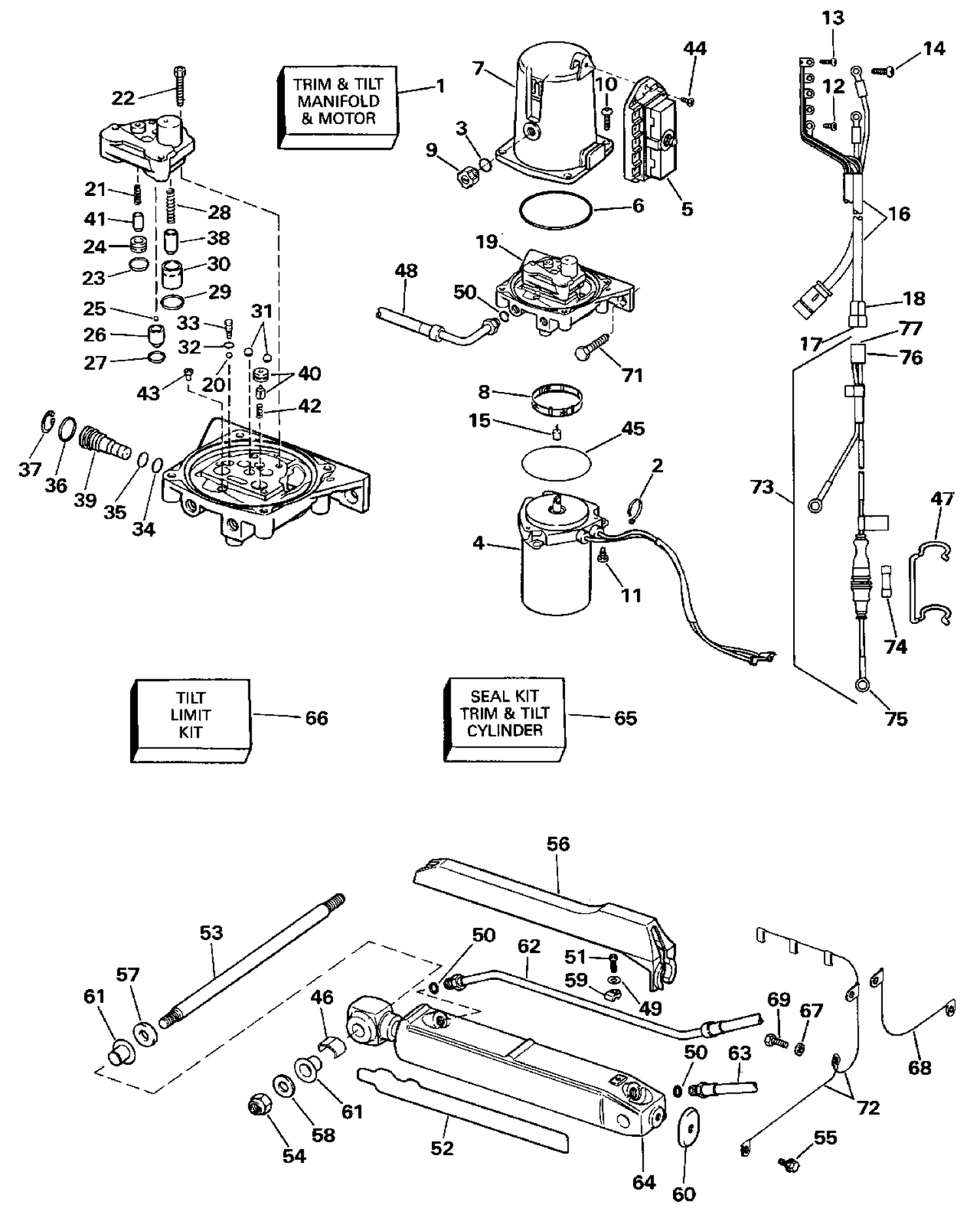

POWER TRIM AND TILT

POWER TRIM AND TILT

Parts (67)

RefPart NumberDescription
1 0985846 MANIFOLD & MOTOR ASSY
2 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
4 0986280 MOTOR ASSY
5 0986281 RELAY & CIRCUIT BREAKER ASSY
6 3852508 O-RING, Reservoir This part replaces 0910702.
7 0986535 RESERVOIR
8 0914045 FILTER
9 0914047 PLUG, Fill hole
10 0914048 SCREW, Reservoir to manifold
11 0914049 SCREW, Motor to manifold
12 0914050 SCREW, Terminal
13 0914051 SCREW, Terminal
14 0914052 SCREW, Terminal
16 0986282 CABLE ASSY
18 0510472 CONNECTOR
19 3850033 Manf This part replaces 0986278.
20 0800128 BALL
21 0911965 SPRING, Pump relief
22 0914054 SCREW, Pump to manifold
23 0914055 O-RING, Valve seat
24 0914056 BALL, Piston, pump control
25 0914057 BALL Piston, pump control
26 0914058 PISTON pump control
27 0914059 O-RING, Piston, pump control
28 0914060 SPRING, Valve core, trim up
29 0914061 O-RING, Valve seat, trim up
30 0914062 SEAT, Valve core, trim up
32 0914064 O-RING, Cap manual release
33 0914065 CAP, Manual release
34 0914066 BACK-UP RING, Manual release
35 0914067 O-RING, Manual release
36 0914068 O-RING, Manual release
38 0983786 VALVE CORE & SEAL
39 0986279 VALVE, Manual release
40 0986283 CHECK VALVE ASSY
41 0986284 VALVE CORE & SEAL ASSY
42 0914046 SPRING, Check valve
43 0914712 FILTER, Oil
44 0914049 SCREW, Motor to manifold
46 0913665 SPRING, Ground
47 3852499 RETAINER, Fuse This part replaces 0910330.
48 3853825 OIL LINE ASSY., Pump to manifold This part replaces 0984645.
52 0912261 APPLIQUE, Tilt cylinder
53 0913812 PIVOT PIN, Tilt cylinder This part replaces 0912810.
54 3853329 LOCKNUT, Transom plate This part replaces 0912920.
55 3852568 SCREW, Cover This part replaces 0911859.
56 3852378 COVER, Tilt cylinder This part replaces 0911907.
57 0912811 SPACER, Drive unit
58 3852573 WASHER, Pivot pin This part replaces 0911915.
59 3852579 RETAINER, Oil line This part replaces 0911967.
60 3852681 RETAINER, Cover This part replaces 0913245.
61 0910855 BUSHING, Pivot pin
62 3853854 OIL LINE, Starboard, down This part replaces 0985614.
62 3853856 OIL LINE, Port, down This part replaces 0985616.
63 3853855 OIL LINE, Starboard, up This part replaces 0985615.
63 3853857 OIL LINE, Port, up This part replaces 0985617.
64 0985660 CYLINDER ASSY
65 0985060 SEAL KIT
66 3850887 TILT LIMIT KIT, 33 Degree This part replaces 0985574.
67 0329241 RONDELLE
68 0985394 GROUND WIRE, 2-loop
71 3852581 LAG SCREW This part replaces 0911975.
72 3853848 GROUND WIRE, 3-loop This part replaces 0985392.
73 0985765 CABLE ASSY., Trim/tilt
75 3852527 RING TERMINAL This part replaces 0911523.
76 0510471 CONNECTOR
0913361 3854248 SPACER, Tilt limit This part replaces 0913361.
