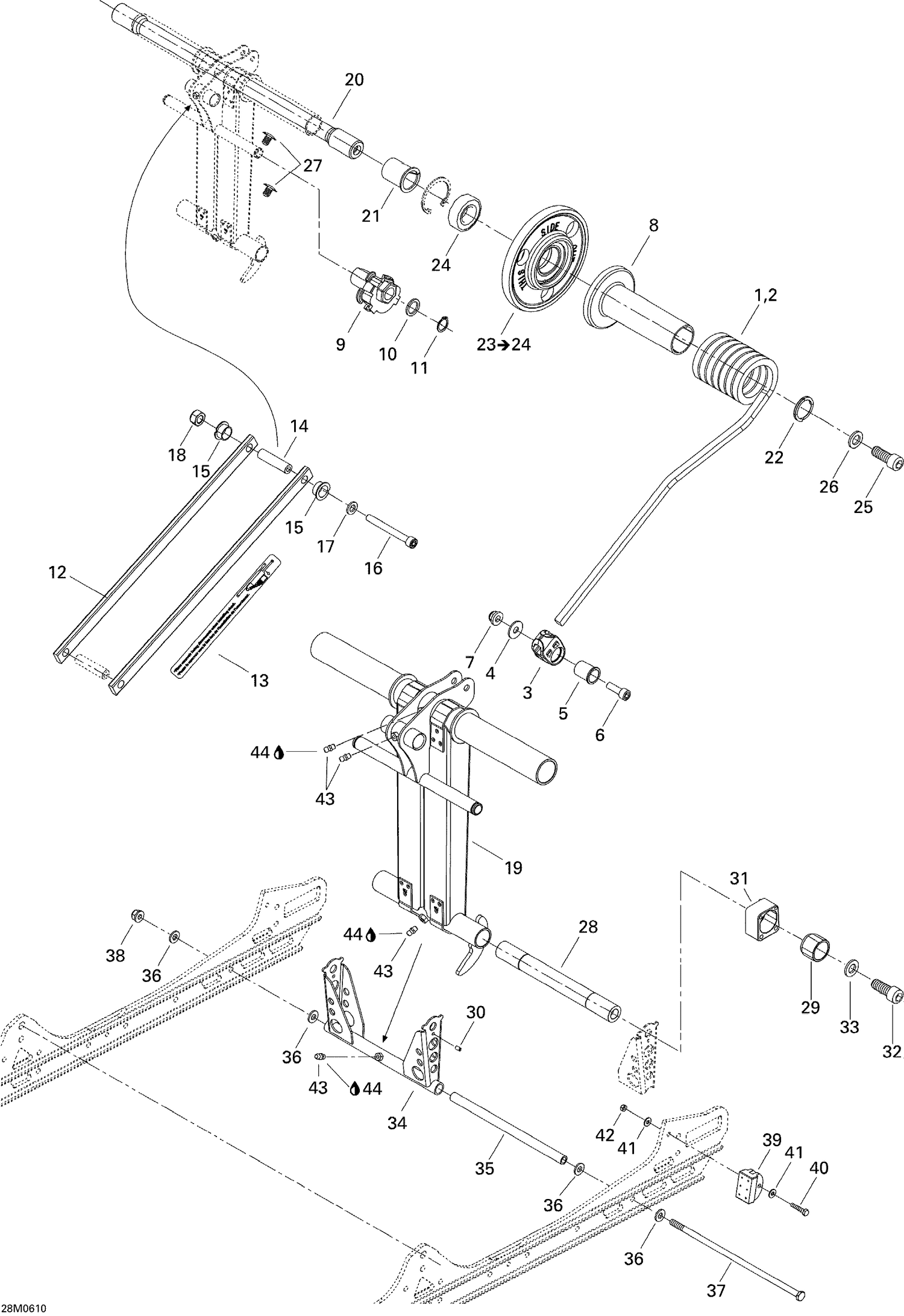

08- Rear Arm
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503190999 | RH Spring |
| 2 | 503191000 | LH Spring |
| 3 | 503190583 | SPRING SUPPORT - Call your local BRP dealership |
| 4 | 234082410 | Flat Washer 8 mm |
| 5 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 6 | 205082544 | Socket Head Screw M8 X 25 |
| 7 | 233281414 | Hex. Flange Elastic Nut M8 |
| 8 | 503190584 | PLASTIC BUSHING - Call your local BRP dealership |
| 9 | 503190585 | LH SPRING CAM - Call your local BRP dealership |
| 9 | 503190586 | RH SPRING CAM - Call your local BRP dealership |
| 10 | 503183400 | WASHER - Call your local BRP dealership |
| 11 | 293370043 | CIRCLIP - Call your local BRP dealership |
| 12 | 503190644 | Tie Rod |
| 13 | 516005609 | Shock Position Decal This part replaces 516001790. |
| 14 | 503191192 | Bar Axle |
| 15 | 503191555 | Swivel Bushing This part replaces 506150200. |
| 16 | 205009044 | Socket Screw M10 X 90 |
| 17 | 503175800 | Washer |
| 18 | 232500416 | Elastic Stop Nut M10 |
| 19 | 503190645 | Rear Arm |
| 20 | 503190618 | UPPER SHAFT - Call your local BRP dealership |
| 21 | 503190619 | CUSHION - Call your local BRP dealership |
| 22 | 503190690 | AXLE SPRING - Call your local BRP dealership |
| 24 | 503190621 | Ball Bearing |
| 25 | 205523544 | Socket Head Screw M12 X 35, Scotch Grip |
| 26 | 503189276 | Washer |
| 27 | 414644300 | Black, Dart |
| 28 | 503190725 | LOWER SHAFT - Call your local BRP dealership |
| 29 | 503189488 | Block Guide |
| 30 | 250400005 | Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership |
| 31 | 503190622 | RH Block, 4 Positions |
| 31 | 503191563 | LH Block, 4 Positions This part replaces 503190623. |
| 32 | 205523544 | Socket Head Screw M12 X 35, Scotch Grip |
| 33 | 503189148 | Washer |
| 34 | 503191091 | PIVOT ARM - Call your local BRP dealership |
| 35 | 503189156 | Pivot Arm Axle |
| 36 | 503189157 | Washer |
| 37 | 503192440 | Bolt M8 X 248mm This part replaces 732601198. |
| 38 | 233281414 | Hex. Flange Elastic Nut M8 |
| 39 | 503191291 | Rubber Stopper This part replaces 503189608. |
| 40 | 207053044 | Hex. Screw M5 X 30 |
| 41 | 250200016 | Washer |
| 42 | 232551414 | Elastic Stop Nut M5 |
| 43 | 408200700 | Grease Fitting |
