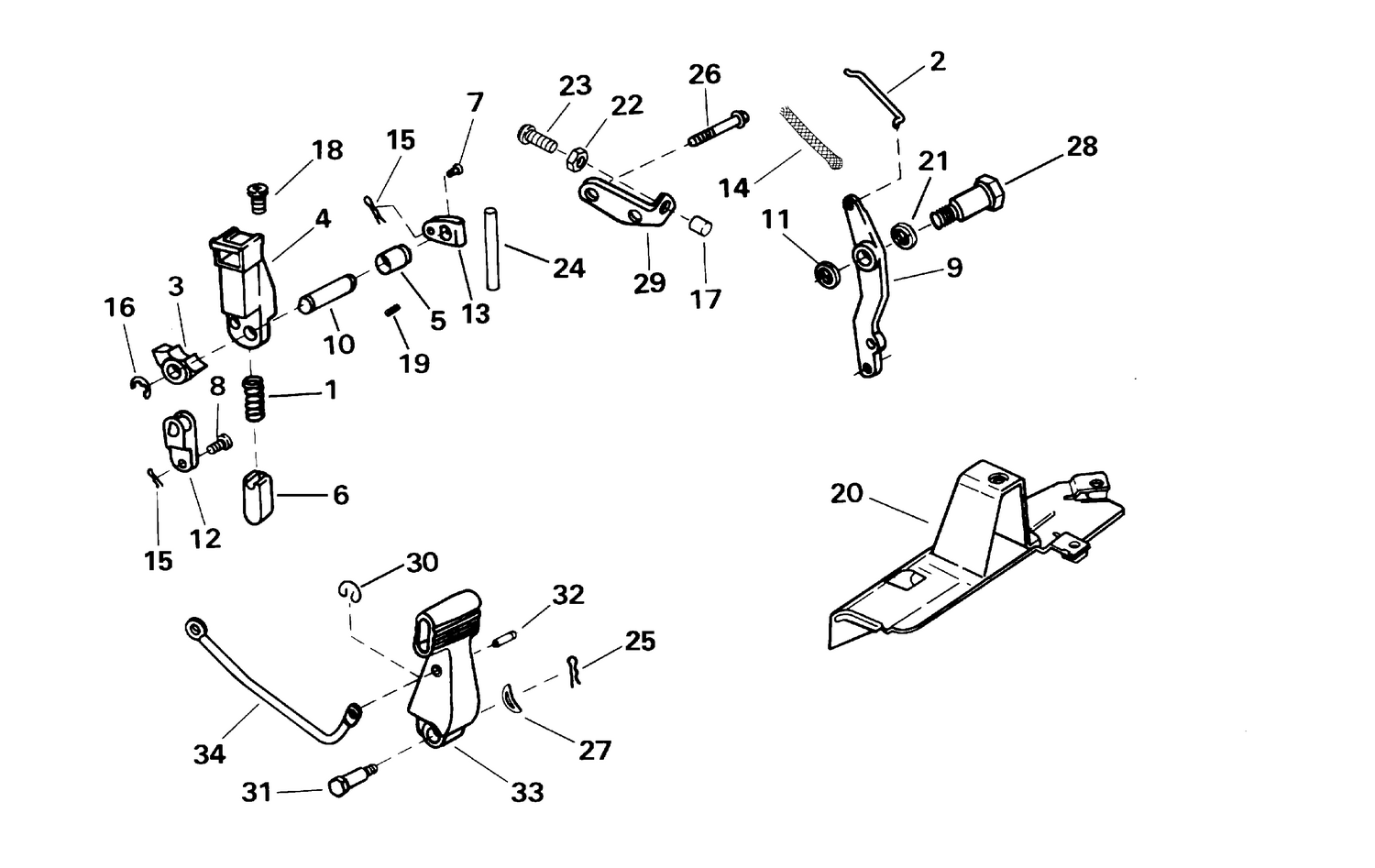

| Ref | Part Number | Description |
|---|
| 1 |
0446154 |
SPRING, Shift detent |
| 2 |
0446169 |
LINK, Throttle lever to carburetor |
| 3 |
0446157 |
CAM, Detent |
| 4 |
0446149 |
HOUSING, Detent |
| 5 |
0446156 |
BUSHING, Shift shaft |
| 6 |
0449507 |
PLUNGER & DETENT ASSY. |
| 7 |
0446155 |
PIN, Shift lever |
| 8 |
0446155 |
PIN, Shift lever |
| 9 |
0446164 |
THROTTLE LEVER |
| 10 |
0446333 |
SHAFT, Shift |
| 10 |
502008649 |
Front Bottom Pan |
| 11 |
0115199 |
RONDELLE , vis du réservoir de carburant |
| 12 |
0446146 |
LEVER, Shift link |
| 13 |
0446147 |
LEVER, Shift rod |
| 14 |
0446465 |
SLEEVE, Throttle link |
| 15 |
0446161 |
CLIP, Shift link to lever |
| 15 |
293730047 |
Black, Dart 8 mm |
| 16 |
0446160 |
RETAINER, Lever, shift shaft |
| 17 |
0446415 |
CAP, Screw |
| 18 |
0446159 |
SCREW, Detent housing |
| 19 |
0446427 |
SCREW, Shaft |
| 20 |
0445090 |
BRACKET ASSY., Shift |
| 21 |
0446168 |
WASHER, Shift lever |
| 22 |
0446115 |
NUT, Carburetor mounting |
| 23 |
0446414 |
SCREW |
| 24 |
0446428 |
PIN, Shift shaft |
| 25 |
0446162 |
ATTACHE |
| 26 |
0441161 |
SCREW, Intake to cylinder head |
| 27 |
0328733 |
RONDELLE ÉLASTIQUE, levier de sens de marche |
| 28 |
0446167 |
VIS, manette des gaz |
| 29 |
0446334 |
THROTTLE STOP |
| 30 |
0336417 |
DISPOSITIF DE RETENUE, tringlerie de sens de marche |
| 30 |
293150104 |
Pop Rivet 3/16 |
| 31 |
0334238 |
VIS, levier vers cylindre |
| 32 |
0338689 |
AXE, tringle de commande de sens de marche |
| 33 |
0338206 |
HANDLE, Shift |
| 40 |
502007788 |
Foam |
| 50 |
502007789 |
Foam |
| 60 |
502007545 |
RH Bottom Pan Central Foam |
| 70 |
502007546 |
LH Bottom Pan Central Foam |
| 80 |
502007800 |
Foam |
| 90 |
502007799 |
Foam |
| 300 |
502007723 |
LH Screw Plate |
| 310 |
502007724 |
RH Screw Plate |
| 320 |
250000958 |
Panel Nut M5 X 0.8 |
| 330 |
250000586 |
Torx Truss M5 X 20 |
| 400 |
502007774 |
RH Bottom Pan |
| 410 |
293150104 |
Pop Rivet 3/16 |
| 430 |
250000586 |
Torx Truss M5 X 20 |
| 440 |
250000958 |
Panel Nut M5 X 0.8 |
| 450 |
502008399 |
RH Upper Bottom Pan Foam |
| 460 |
502008400 |
RH Lower Bottom Pan Foam |
| 470 |
502007902 |
Heat Shield |
| 475 |
508000853 |
Push Nut |
| 480 |
44110 |
Aluminum Foil |
| 485 |
44110 |
Aluminum Foil |
| 500 |
502007901 |
Plate |
| 510 |
293150103 |
Pop Rivet 3/16 |
| 600 |
502007773 |
LH Bottom Pan Ass'y |
| 605 |
518330527 |
Bottom Pan Plug |
| 620 |
219704476 |
Gasket, Neoprene 2000Mm Long |
| 630 |
250000586 |
Torx Truss M5 X 20 |
| 635 |
250200025 |
Washer M5 |
| 640 |
250000958 |
Panel Nut M5 X 0.8 |
| 650 |
502008401 |
LH Upper Bottom Pan Foam |
| 660 |
502008402 |
LH Lower Bottom Pan Foam |
| 700 |
502008199 |
Heat Shield |
| 710 |
502008149 |
Stopper |
| 800 |
502008251 |
Bumper |
| 806 |
502008380 |
Horn Bracket |
| 810 |
207552044 |
Hex. Flange Screw M5 X 20, Scotch Grip |
| 830 |
293150104 |
Pop Rivet 3/16 |
| 1200 |
502007977 |
Upper Pre Filter |
| 1210 |
293150230 |
Tuflok Plastic Rivet |
| 1220 |
502007978 |
Lower Pre Filter |
| 1600 |
502007859 |
RH Bottom Pan Corner 16 |
| 1610 |
293150104 |
Pop Rivet 3/16 |
| 1620 |
517124300 |
Washer |
| 1650 |
502007757 |
Stopper |
| 1655 |
293150104 |
Pop Rivet 3/16 |
| 1660 |
517124300 |
Washer |
| 1800 |
502008031 |
LH Bottom Pan Corner 16 |
| 1810 |
293150104 |
Pop Rivet 3/16 |
| 1820 |
517124300 |
Washer |
| 1830 |
293150230 |
Tuflok Plastic Rivet |
| 1900 |
502008035 |
LH Bottom Pan Deflector |
