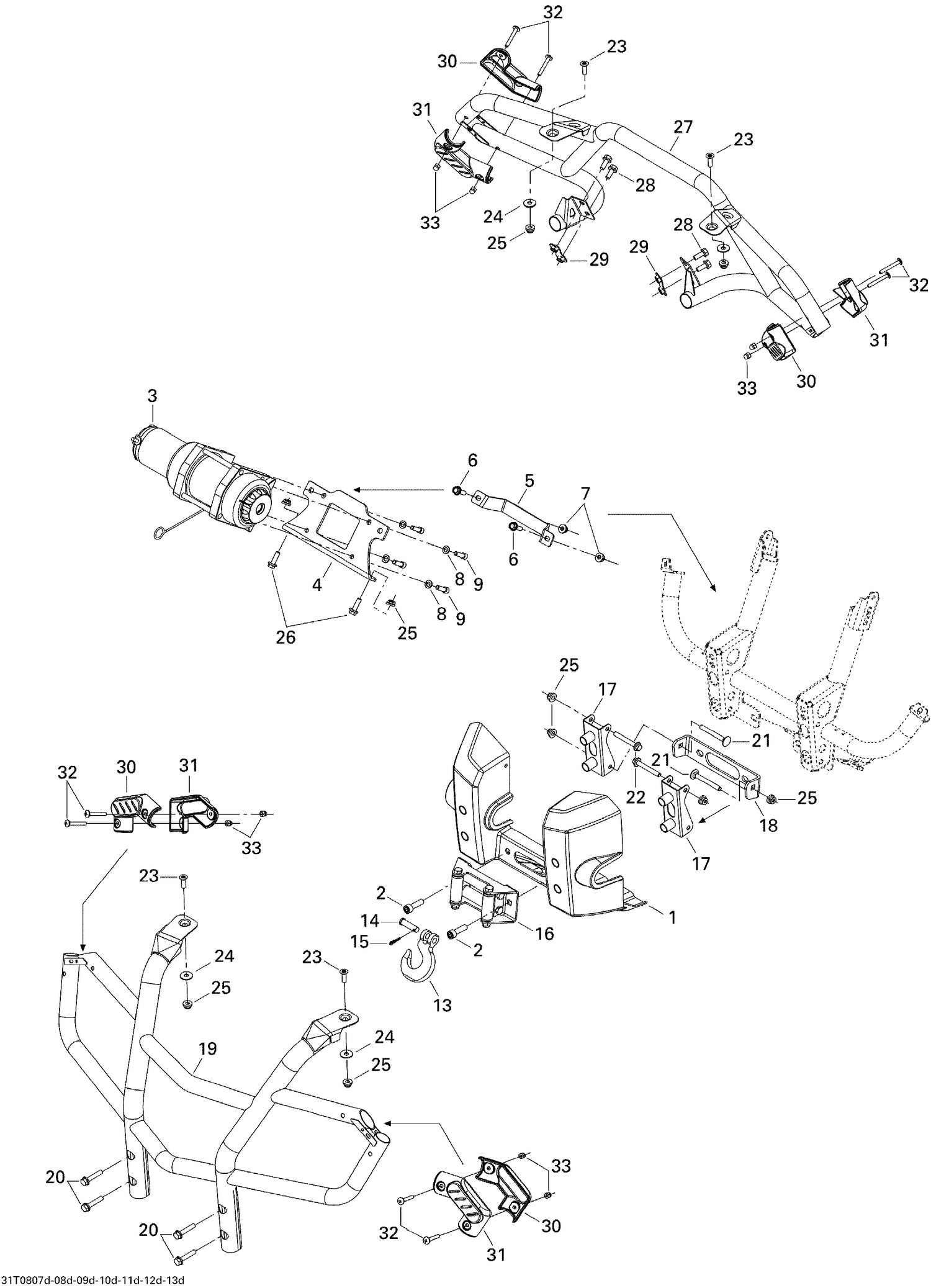

| Ref | Part Number | Description |
|---|
| 1 |
705003496 |
GUARD PLATE - Call your local BRP dealership This part replaces 705001531. |
| 2 |
205003544 |
Socket Screw M10 X 35 |
| 3 |
705002505 |
WINCH - Call your local BRP dealership |
| 4 |
705004278 |
BLACK MOUNTING PLATE - Call your local BRP dealership This part replaces 705001351. |
| 5 |
705001460 |
BLACK WINCH BRACKET - Call your local BRP dealership |
| 6 |
207682544 |
Hex. Flange Screw M8 X 25 |
| 7 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 8 |
234181401 |
Lock Washer 8 mm |
| 9 |
205082044 |
Socket Head Screw M8 X 20 |
| 13 |
705014949 |
Winch Hook Kit This part replaces 705002329. |
| 14 |
250400021 |
Clevis Pin This part replaces 250400039. |
| 15 |
250400022 |
Cotter Pin This part replaces 250400040. |
| 16 |
715007699 |
Fairlead_Roller Kit This part replaces 715000011. |
| 17 |
705003006 |
BUMBER ANCHORING - Call your local BRP dealership This part replaces 705001058. |
| 18 |
705001073 |
Renfort De Pare-Chocs - Appelez votre concessionnaire BRP local |
| 19 |
705001964 |
FRONT BUMPER - Call your local BRP dealership |
| 20 |
207584044 |
Hex. Flange Screw M8 X 40, Scotch Grip |
| 21 |
207787044 |
Carriage Bolt M8 X 70 |
| 22 |
207686044 |
Hex. Flange Screw M8 x 60 |
| 23 |
235482584 |
TORX SCREW M8 X 25 - Call your local BRP dealership |
| 24 |
234082410 |
Flat Washer 8 mm |
| 25 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 26 |
207682544 |
Hex. Flange Screw M8 X 25 |
| 27 |
705001973 |
REAR BUMPER - Call your local BRP dealership |
| 30 |
705001042 |
MALE CAP - Call your local BRP dealership |
| 31 |
705001043 |
FEMALE CAP - Call your local BRP dealership |
| 32 |
250000215 |
Torx Screw M6 X 45 |
